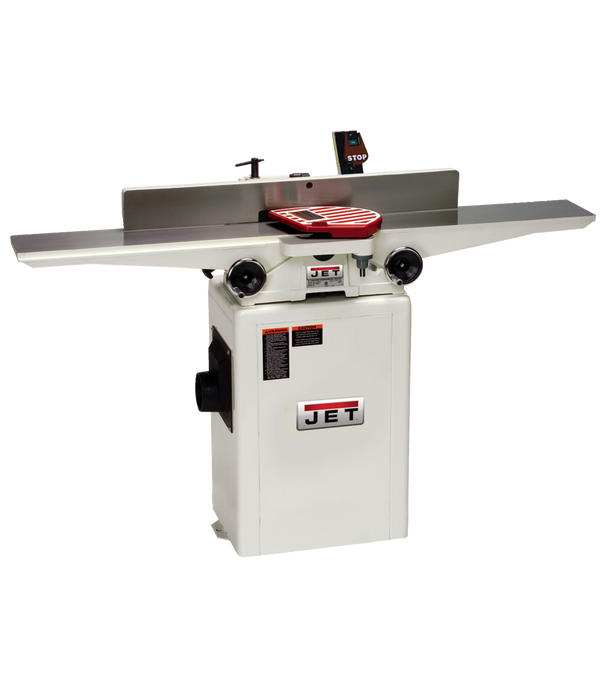

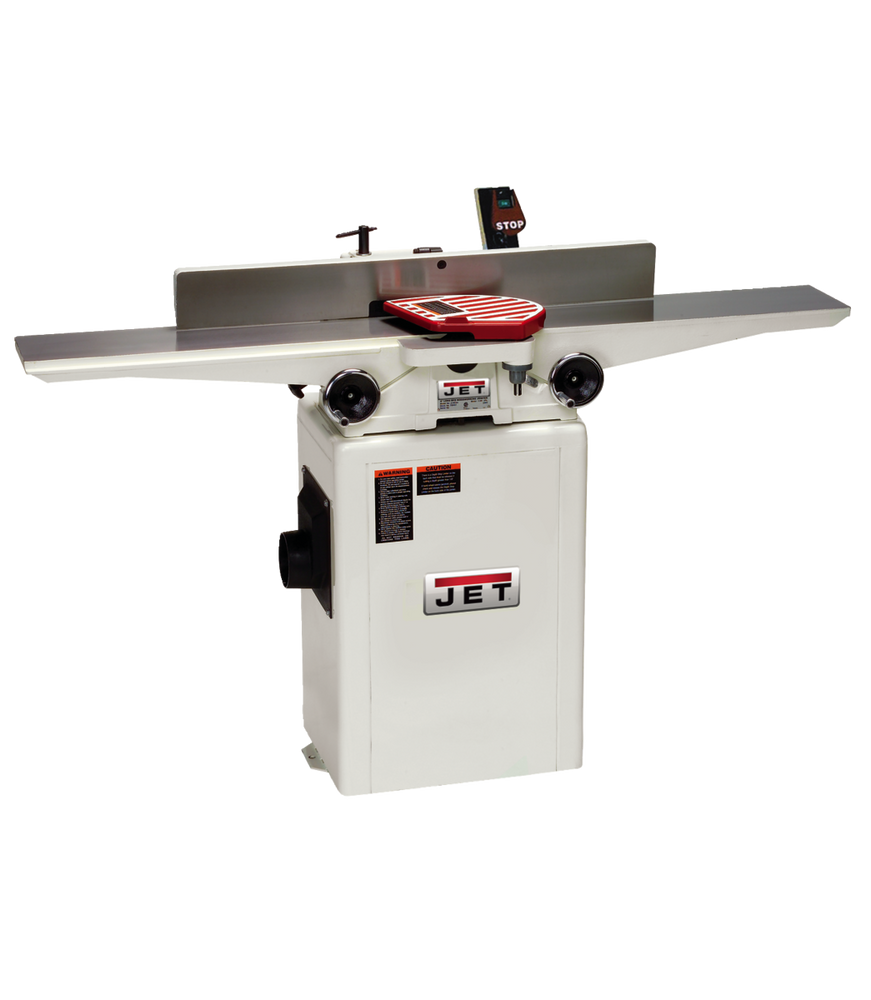

JJ-6HHDX, 6" Long Bed Wood Jointer with Helical Head Kit

by Jet
$1,929.99
SKU 708466DXK
  • Helical cutterhead with indexable carbide inserts for a superior finish and quieter cut
  • Extra-long heavy-duty cast iron infeed and outfeed tables with precision machined finish
  • Two-way tilting fence with positive stops at 45 and 90 to handle bevel operations
  • EXCLUSIVE front-mounted table adjustment handwheels make quick, easy and accurate corrections
  • Industrial push-button controls are conveniently placed for easy access
  • Built-in dust chute with 4 port connects to your collection system for efficient dust/chip disposal
  • Center fence controls are conveniently mounted to allow quick adjustments
  • Powerful 1HP motor easily handles the toughest jointing tasks
Height45.000
Length56.000
Gross Weight260.000
Net Weight240.000
Volume30.625
Width21.000
Ready For Web (US)Yes
Prop 65Cancer and Reproductive Harm
Infeed Table Length (In.)27
Fence Positive Stops (Deg.)45 L, 45, 90 R
Motor Power (HP)1
Fence Tilt (Deg.)45 L, 45 R
Table Height from Floor (In.)31-1/4
Motor Phase (PH)1
Cutterhead Speed (RPM)6000
Fence Size (L x H) (In.)32-3/4 x 3-7/8
`#N/A
Cutting Capacity (W x D) (In.)6 x 1/2
Recommended Circuit Size (Amps.)
Outfeed Table Length (In.)27-3/8
Number of Knives27
Table Size (L x W) (In.)56 x 7-3/8
Size (In.)
Rabbeting Ledge (In.)
Wiring Remarks
Helical Knife Size (L x W x T) (In.)15 x 15 x 2.5
Type of Cutterhead
Rabbeting Capacity (In.)
Motor Amps13/6.5
Dust Port Outside Diameter (In.)4
Cuts Per Minute
Cutterhead Diameter (In.)2-1/2
Standard Knife Size (L x W x T) (In.)
Motor Voltage (V)115/230
Prewired Voltage (V)115
