OT-LAS Laser Machine CX XL

OT-LAS Laser Machine CX XL

by OT-LAS
$0.00
SKU WSI-OT-LASCXXL

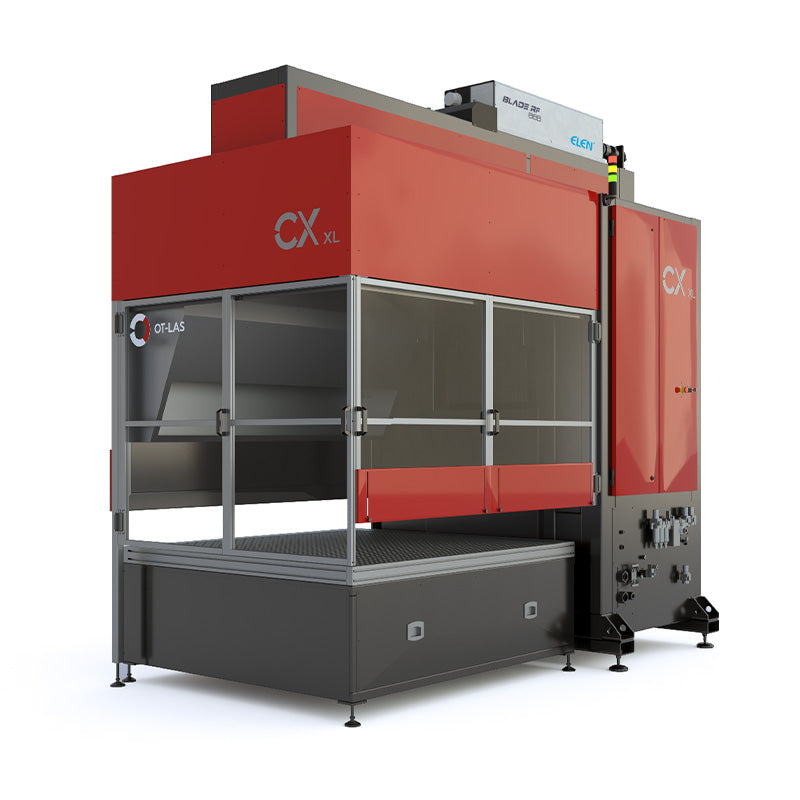

CX XL, the laser cutting and marking machine for very large areas

Designed and implemented starting from the experience with CX system, the CX XL laser machine is conceived to meet the needs to process large surfaces. Therefore, CX XL places itself on the market for the decoration of large marble and ceramic slabs, and whole leather.

CX XL can process the following materials:

  • Marble
  • Tiles
  • Ceramic
  • Wood
  • Wall covering
  • Leather
  • Glass
  • Plastic
  • Veneering

Advantages of the CX XL laser machine

The CX XL laser system is built on a very solid mechanic structure that guarantees precision over the time. Processing large-size slabs with CX XL is not a problem: the maximum useful marking area of 1600×1600 mm can be extended as far as 1600×3000 mm by moving table, but length can be customized even beyond such dimensions.

The CX XL highlights:

  • Working area up to 1600 mm.
  • Laser power of 1500 Watt.
  • Large size marking.
  • For each work, it is possible to assign geometric and processing parameters and set any drawing repetitions or compositions.
  • Great precision of laser spot thanks to the HD scanning head.
Blade RF 333 555 777 888 1222 1555
Rated power (W) 350 550 750 850 1200 1500
Electric consumption (kW) 9 10 12 13 22 23
Useful marking area (mm) from 800×800 to 1600×1600 – rated spot from 0.40 mm to 0.8 mm
X-axis automatic movement Stroke: 1000 mm
Electric Power Supply (VAC) machine: 400 3F+T ±10% 50 H
refrigerator: 400 3F+T ±10% 50 Hz
