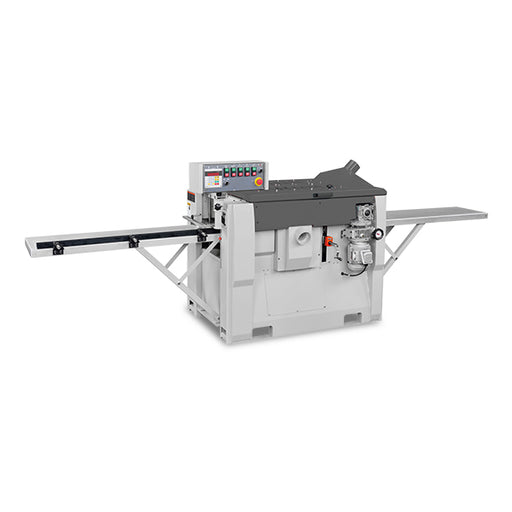

Cantek M412 4-Sided Planer Moulder

by Cantek

Sale

$24,600.00

$23,370.00

Payment Calculator

Financing Request

SKU WSI-CantekM412TP

Cantek M412 4 Sided Planer/Moulder

Quantity

Economical 4-Sided Planer Moulder Solution for the Small Shop.

The Cantek M412 4-Sided Planer Moulder is an economical and compact machine designed for professional woodworkers looking to produce a wide range of mouldings or S4S. With individual motors to each spindle you can comfortably produce a wide range of products including flooring, crown moulding, paneling, door & furniture components, S4S, and more. The electronic digital thickness control and mechanical readouts allow for fast and accurate adjustment of the spindles to produce the desired result. Equipped as standard with both infeed and outfeed tables the material is well supported during cutting operations. Its small footprint makes it the ideal solution for the small custom shop who wants to produce their own mouldings.

Four cutting modes: Single / double / three / four-sided planing and moulding
Designated individual motors to each spindle
Variable feed speed from 11-52 FPM for optimum finish results
Digital motorized thickness controller (inch / metric) for operator convenience
Mechanical digital readouts for side head adjustment
3 depth of cut control plates for bottom cutterhead
Includes infeed outfeed table for supporting material during machining
Upgraded adjustable infeed fence for convenient depth adjustment
See through top guard so operator can view cutterheads

Centralized control panel to turn on and off all working units and adjust thickness opening
Top horizontal spindle is equipped with two pattern knife for planing and moulding operations
Left vertical spindle can be adjusted in and out manually with a mechanical digital readout for accurate positioning

Planing	Width: 13” (330MM)
Planing	Depth: 7/16” – 9” (12 – 230mm)
2-Side Planing/Moulding	Width: 13-5/8″” (346mm)
2-Side Planing/Moulding	Depth: 7/16” – 9” (12 – 230mm)
4-Side Planing/Moulding	Width: 0 – 12” (0 – 305mm)
4-Side Planing/Moulding	Depth: 7/16” – 4” (12 – 100mm)
Top Horizontal Spindle	Width: 17-15/16” (455mm)
	Max. planing depth: 5/16” (8mm)
	Max. moulding depth: 3/4” (19mm)
	Speed: 7000 RPM
	Cutterhead diameter: 2-7/8” (72mm)
	Motor: 7-1/2HP (5.5Kw)
Bottom Horizontal Spindle:	Width: 13-5/8” (346mm)
	Max. planing depth: 1/4” (6mm)
	Max. moulding depth: 3/16″ (5mm)
	Speed: 7000 RPM
	Cutterhead diameter: 2-7/8” (72mm)
	Motor: 5HP (3.7Kw)
Right & Left Vertical Spindles	Max. cutting height: 4” (100mm)
	Max. cutting depth: 13/16” (21mm)
	Spindle diameter: 1-1/4″ (31.75mm)
	Speed: 7000 RPM
	Max. cutterhead diameter: 3-1/2” (90mm)
	Motor: 4.1HP (3Kw) x 2
Table	Area: 1125 x 685 mm
	Elevation: 230mm
	Power Table (Raise): 120w
Dust Hood Outlet	4 – 100mm (3.95″)
Minimum width	0-306mm
Minimum thickness	12-230mm
Feed System	Speed (Variable): 11-52 ft/min.
Feed System	Motor: 1HP (0.745Kw)
Machine Dimensions (LxWxH)	1485 x 1265 x 1216 mm
Packing Dimensions (LxWxH)	1350 x 1140 x 1130 mm
New Weight	635kgs (1400bs)
Gross Weight	730kgs (1610lbs)
Electrics	230/3/60 – 48 Full Load Amps

Download Brochure

Cantek M412 4-Sided Planer Moulder

Economical 4-Sided Planer Moulder Solution for the Small Shop.

Planing

Width: 13” (330MM)

Depth: 7/16” – 9” (12 – 230mm)

2-Side Planing/Moulding

Width: 13-5/8″” (346mm)

Depth: 7/16” – 9” (12 – 230mm)

4-Side Planing/Moulding

Width: 0 – 12” (0 – 305mm)

Depth: 7/16” – 4” (12 – 100mm)

Top Horizontal Spindle

Width: 17-15/16” (455mm)

Max. planing depth: 5/16” (8mm)

Max. moulding depth: 3/4” (19mm)

Speed: 7000 RPM

Cutterhead diameter: 2-7/8” (72mm)

Motor: 7-1/2HP (5.5Kw)

Bottom Horizontal Spindle:

Width: 13-5/8” (346mm)

Max. planing depth: 1/4” (6mm)

Max. moulding depth: 3/16″ (5mm)

Speed: 7000 RPM

Cutterhead diameter: 2-7/8” (72mm)

Motor: 5HP (3.7Kw)

Right & Left Vertical Spindles

Max. cutting height: 4” (100mm)

Max. cutting depth: 13/16” (21mm)

Spindle diameter: 1-1/4″ (31.75mm)

Speed: 7000 RPM

Max. cutterhead diameter: 3-1/2” (90mm)

Motor: 4.1HP (3Kw) x 2

Table

Area: 1125 x 685 mm

Elevation: 230mm

Power Table (Raise): 120w

Dust Hood Outlet

4 – 100mm (3.95″)

Minimum width

0-306mm

Minimum thickness

12-230mm

Feed System

Speed (Variable): 11-52 ft/min.

Motor: 1HP (0.745Kw)

Machine Dimensions (LxWxH)

1485 x 1265 x 1216 mm

Packing Dimensions (LxWxH)

1350 x 1140 x 1130 mm

New Weight

635kgs (1400bs)

Gross Weight

730kgs (1610lbs)

Electrics

230/3/60 – 48 Full Load Amps
