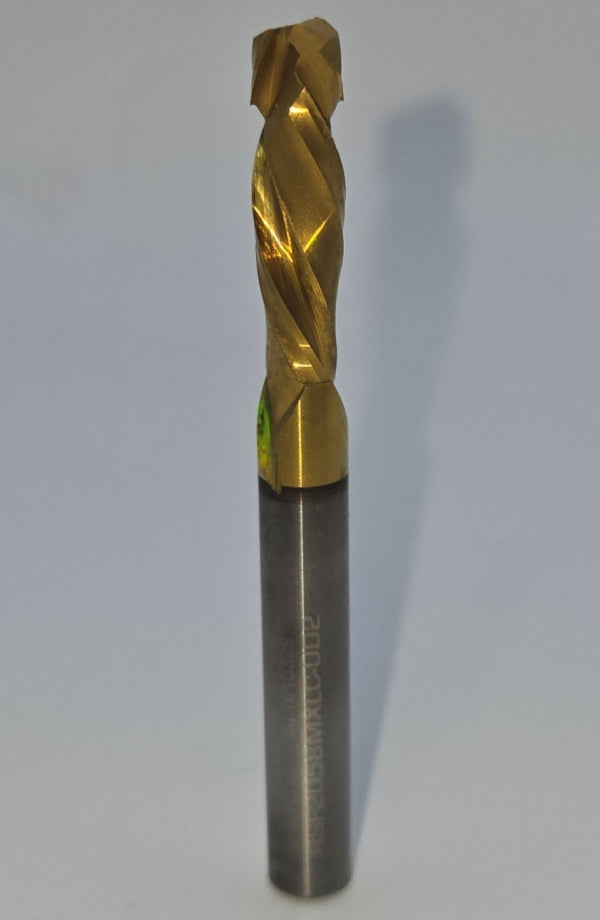

#RSF2058MXLC-UD2, Mortise Compression Router Bit, XLC Coating
The XLC coating technology is engineered for high-wear applications, particularly when machining laminates and other abrasive materials. By protecting the carbide cutting edge while preserving its geometry, XLC helps maintain sharpness, reduce heat and extend tool life. Its unique design also supports improved cutting performance after sharpening, offering longer service life and greater value over time.
Technical Specs
0.25" Dia, 0.875" LOC, 0.25" Shank Dia, 2.5" OAL, Two Flute
Alternative to LMT Onsrud #60-113MC
| ITEM NO. |
CUTTING DIA. |
LOC |
SHK DIA. |
OAL |
FLUTES |
COATING |
Bit Type |
| RSF2000-D2 |
0.1250 in |
0.5000 in |
0.2500 in |
2.0000 in |
2 |
|
Down Cut |
| RSF2008-D2 |
0.2500 in |
1.0000 in |
0.2500 in |
2.5000 in |
2 |
|
Down Cut |
| RSF2058MXLC-UD2 |
0.2500 in |
0.8750 in |
0.2500 in |
2.5000 in |
2 |
XLC - Extended Life Coating |
Mortise Compression |
| RSC2159XLC-UD2 |
0.3750 in |
1.2500 in |
0.3750 in |
2.5000 in |
2 |
XLC - Extended Life Coating |
Compression with Chip Breakers |
| RSCL2018-U3 |
0.3750 in |
1.2500 in |
0.3750 in |
4.0000 in |
3 |
|
Low Helix Up Cut |
| RSF2015-U2 |
0.3750 in |
1.2500 in |
0.3750 in |
3.0000 in |
2 |
|
Standard Helix Upcut |
| RSF2059MSXLC-UD3 |
0.3750 in |
0.8750 in |
0.3750 in |
3.0000 in |
3 |
XLC - Extended Life Coating |
Mortise Compression |
| RSF2059WS-UD2 |
0.3750 in |
0.8750 in |
0.3750 in |
3.0000 in |
2 |
|
Mortise Compression - High Feedrate |
| RSCL2030-U3 |
0.5000 in |
2.0000 in |
0.5000 in |
4.5000 in |
3 |
|
Low Helix Up Cut |
| RSF2061WXLC-UD2 |
0.5000 in |
1.3750 in |
0.5000 in |
3.5000 in |
2 |
XLC - Extended Life Coating |
Mortise Compression - High Feedrate |
