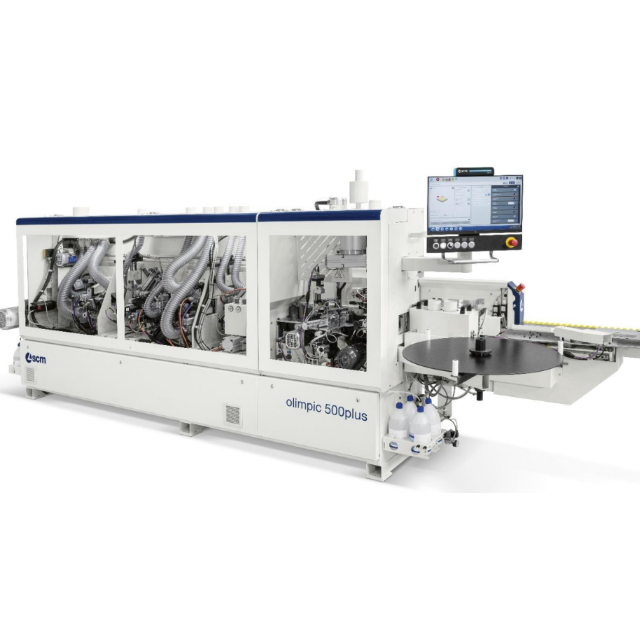

SCM Olimpic 500P HP / AF

Automatic edge bander designed to process panels for different applications with excellent productivity and quality performance.

Ideal for medium-sized companies, it is a highly versatile solution thanks to the possibility of using different types of gluing: EVA, PUR glues and hot air technology.

Features (model replacement of K560HP and K560HP AF)

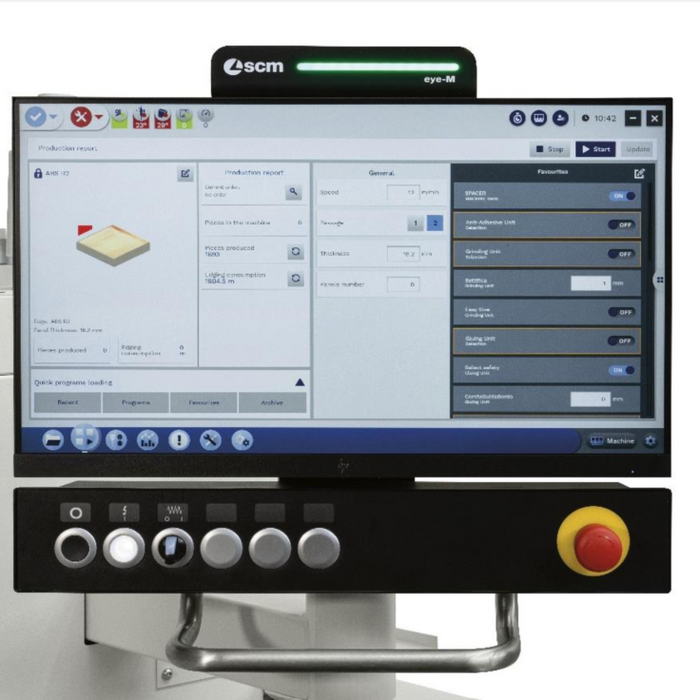

• NEW EYE-M-EVO Controller
• 24” High Resolution Touch Screen
• Unlimited Number of Working Programs
• Provides Diagnostic, Maintenance and Production Information
• LED Light Bar to Indicate Machine Status
• Windows 10 Operating System
• Available in 5 languages
• NEW Two Motor Pre Mill Unit (2.0hp)
• 100mm Diamond Cutters With Replaceable Inserts
• Maximum thickness removal of 3mm/Maximum stock removal of 80mm2
• Mechanical Digital Readout for Stock Removal
• Pneumatic Positioning Through Controller
• Fence Moves on THK Guides
• NEW Servo Driven Pressure Section
• SGP Glue Pot
• 4 Roller Pneumatic Pressure Section
• Jump Pressure Section
• Maintenance Free Bearing on Glue Pot
• I-Glue, Pneumatic Locking of Glue Roller on Trailing Edge
• 1.5kg glue pot capacity

Air Fusion+

• AF15 AirFusion+ Unit – 50fpm
• 50% Quicker Heat Up Time
• Requires Half the Air Pressure of the
• Quicker Cool Down, roughly 5 minute
• Silencer Mounted Above the Unit
• Min/Max Edge Thickness 1mm/3

Duty Cycle:

5-6 Hours of Production Per Day

Capacities / Feed Speeds / Panel Thickness:

8mm / 40-60 fpm / 60mm
