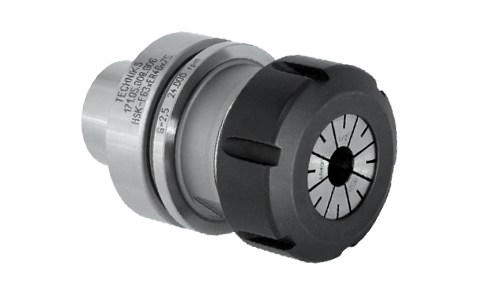

Techniks 30002 HSK 63F x ER 40 - 90mm, Slotted Nut Toolholder

$286.92
SKU TK30002

The Techniks 30002 HSK 63F x ER 40-90mm Slotted Nut Toolholder is an essential tool for machining operations. With its precise and reliable performance, this toolholder offers unmatched accuracy and precision in your machining operations. Made with high-quality materials, the Techniks 30002 HSK 63F x ER 40-90mm Slotted Nut Toolholder ensures long-lasting durability and performance, making it a must-have tool for your machining operations.

This toolholder features a slotted nut design, which provides a secure and stable grip on the tool, ensuring that it remains in place during machining operations. Additionally, the HSK 63F x ER 40-90mm design provides compatibility with a wide range of tools, making it a versatile tool that can be used for multiple machining operations.

Whether you're a professional machinist or a hobbyist, the Techniks 30002 HSK 63F x ER 40-90mm Slotted Nut Toolholder is an excellent tool for achieving precise and reliable results. Order yours today and take your machining operations to the next level.

Features

  • Balanced to 25,000 RPM at G2.5
  • Maximum 0.0001″ T.I.R. measured from taper to collet pocket
  • PowerCOAT Nut increases holding power by 75%
  • Includes slotted collet nut, #46140

Collet Type: ER 40

Toolholder Style: HSK63F

Length: 90mm

Diameter: 63mm

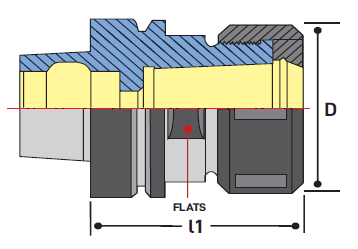

Technical Data

Collet Series ER40
Body Dia-Workpiece Side (in) 2.48
Body Dia-Workpiece Side (mm) 63
Gage Length (in) 3.54
Gage Length (mm) 90
Gage Length-Face Contact (in) 3.54
Gage Length-Face Contact (mm) 90
Lock Nut Diameter (in) 2.48
Lock Nut Diameter (mm) 63
Overall Length (in) 4.52
Overall Length (mm) 114.8
Material 8620 Steel
Taper HSK63F
Overall Diameter (in) 2.48
Overall Diameter (mm) 63
Unit of Tool Metric or Inch
Type Taper Shank Collet Chuck
Style Single Ended
Capacity Range (in) 0.086" - 1.02"
Capacity Range (mm) 2.2 - 26mm
Balanced to 25,000 RPM at G2.5
