Maggi System 46 Boring Machine INCLUDES FREIGHT

Maggi System 46 Boring Machine INCLUDES FREIGHT

by Maggi

$16,345.00

Payment Calculator

Financing Request

SKU WSI-MAG-SYSTEM-46

Quantity

Fixed Rate Shipping in the Continental United States

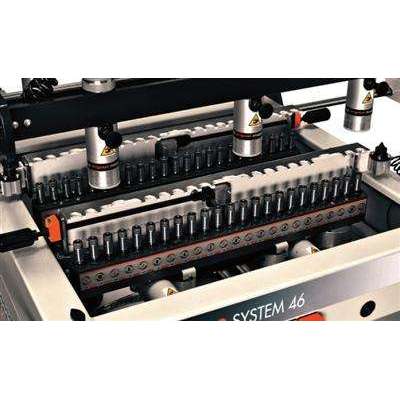

The Maggi System 46 Boring Machine provides (2) 23-spindle heads on 32 mm centers; distance between first and last spindle center of each head is 27-23/32" (704 mm).

Front end adjustment for quick and easy set-up.
(2) 1.5 HP 2,800 RPM motors; max.
Boring depth is 2-1/16" (55 mm).
Side depth counter system; extractable 400 mm support rollers for long panels.
Maximum distance between heads is 25-19/32" (650 mm) and minimum width is 5-1/8" (130 mm).
Complete with: 46 quick change chucks, 10' extension fence with (4) flip-stops and (2) pneumatic reference pins; (6) patented safety clamps.
This machine can be used for single or double row line drilling.
Uses 24 LH (red) and 22 RH (black) boring bits.
Working air pressure 94 psi.
Voltage: 230V 3-Phase
Net weight: 820 lbs.; Crated weight: 940 lbs.
Call for LTL Freight pricing outside the Continental United States at 919-776-8341.
