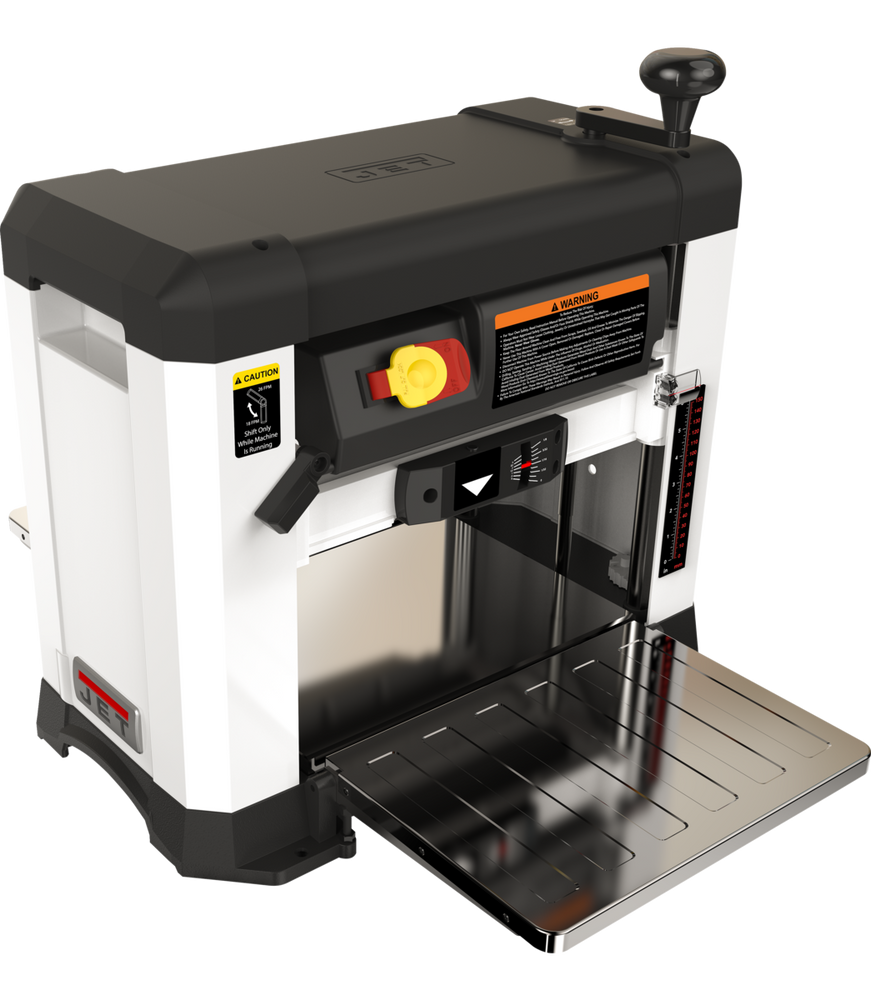

13" JET Helical Style Bench Top Planer, JWP-13BT

by Jet
SKU 722130
  • Helical Style Cutter head with 6 rows of 24 individual quick change inserts, provides a clean and smooth cut with easy to change blades
  • Precision machined Cast Iron Bed and Steel cover assists in keeping boards flat and reduces snipe
  • Four post design for maximum control and support of cutter head in reference to work piece and cast table
  • Powerful 2HP 15 Amp Motor turns the cutter head at 10,000 RPM
  • Dual infeed speed control for 18fpm or 26fpm, maximizes cut efficiency on different wood material types
  • Maximum depth of cut 1/8, 6 depth and 13 width capacity
  • Adjustable folding infeed/outfeed tables for leveling to bed and saves shop space when stored
  • Dust Port hooks up to dust management system and helps keep shop clean
  • Toggle switch with removable safety key
  • Adjustable depth stop for consistent repetitive cuts
Gross Weight81.730
Net Weight74.800
Ready For Web (US)Yes
Prop 65Cancer and Reproductive Harm
Movement - Horizontal (In.)
Segmented Infeed Roller Diameter (In.)
Cutterhead Speed (RPM)10,000
Maximum Depth of Cut (In.)1/8
Feed Rate (FPM)18 and 26
Outfeed Table Length (In.)
Motor Power (HP)2
Knife Size (L x W x T)
Dust Collection Minimum CFM Required (CFM)
Number of Speeds2
Number of Knives24
Digital Readouts
Maximum Planing Thickness (In.)6
Distance Between Rollers - Center to Center (In.)
Recommended Circuit Size (Amps.)
Outfeed Roller Diameter (In.)
Maximum Height of Rollers Parallel to Tabletop (In.)
Cutterhead Diameter (In.)2 (46mm)
Motor Amps15
Cuts Per Minute20000
Range of Speeds
Dust Port Outside Diameter (In.)4 (102mm)
Bed Rollers Adjustable from Front
Motor Phase (PH)1
Table Height from Floor (In.)
Table Size with Extensions (L x W) (In.)
Prewired Voltage (V.)
Movement - Vertical (In.)
Number of Rollers
Type of CutterheadHelical Style
Maximum Planing Width (In.)13
Column Diameter (In.)
Minimum Planing Length (In.)
Wiring Remarks
Motor Voltage (V.)115
Infeed Roller Diameter (In.)
Style (Type)SV_1375591258774
Table Support
Maximum Full Width Depth of Cut (In.)1/8
Table Size (L x W) (In.)13 x 9.8
