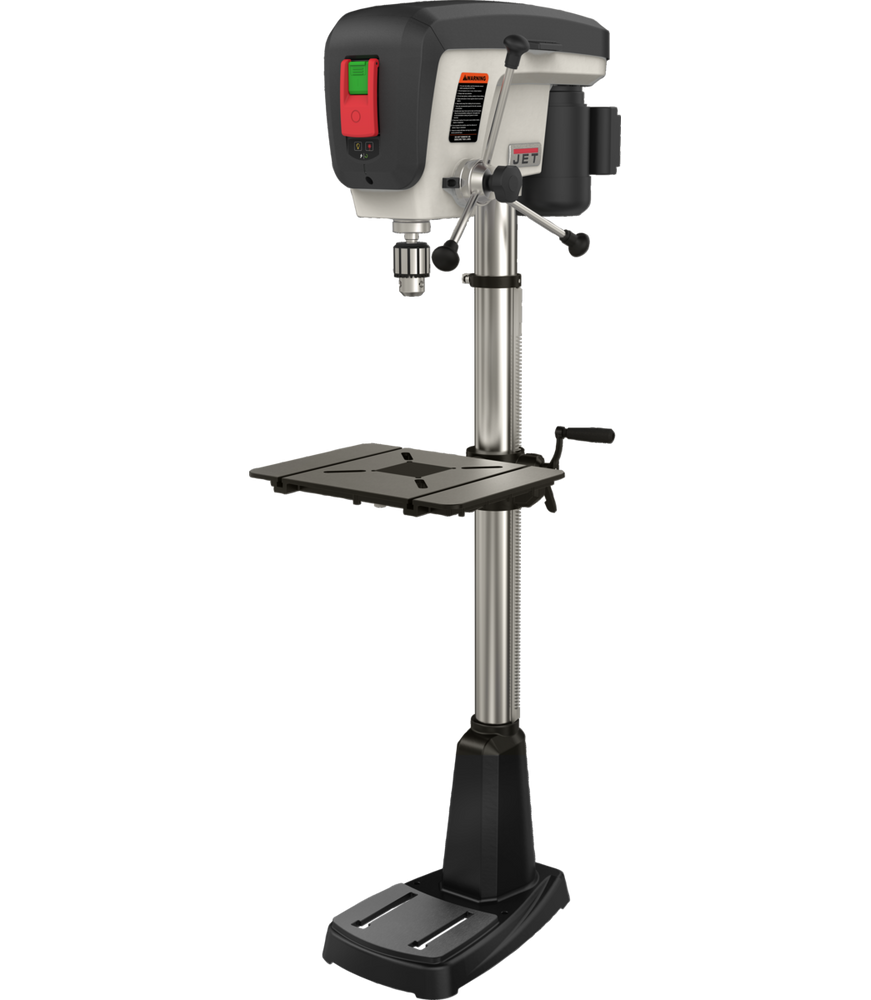

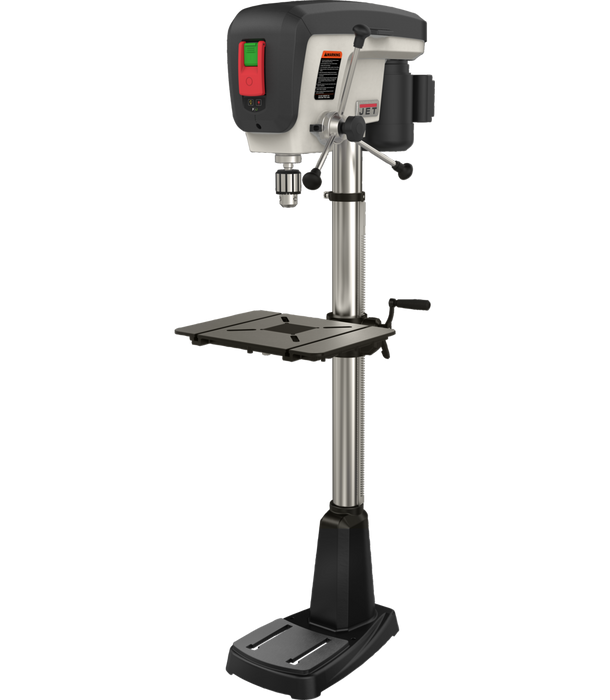

15" Floor Standing Drill Press 716250

by Jet
SKU 716250
  • Spindle travels a full 3-1/8 with one revolution of the handle
  • Large 12-1/2 x 17 precision ground work table features twin T-slot grooves and 4 table slots to accommodate any project
  • One-handed belt tensioning allows for rapid speed changes
  • Power switch features a safety key and large, paddle-style off button
  • Integrated depth stop makes repetitive drilling quick and easy
  • Xacta-X laser system easily identifies the drill center
  • Long-lasting, built-in LED work light reduces shadows
  • Table edge lip designed to make clamping easy
  • Replaceable MDF table insert
  • Large cast iron base provides stability
Gross Weight183.000
Net Weight172.000
Ready For Web (US)Yes
Prop 65Cancer and Reproductive Harm
Motor Power (HP)3/4
Number of Spindle Speeds16
Chuck Distance to Table (In.)#N/A
Chuck Distance to Base (In.)#N/A
Motor Voltage (V)115
Fence Size (L x H) (In.)#N/A
Spindle Speed Range (RPM)210 - 3500
Spindle Distance to Table (Max.) (In.)30-1/2
Style (Type)SV_1375591258781
Table Tilt (Deg.)45 Left and Right
Column Diameter (In.)2-3/4
Table Size Fully Extended (L x W) (In.)#N/A
Swing (In.)15
Spindle Taper (In. x TPI)#N/A
Chuck Size (In.)5/8
Base Size (In.)18-7/8 x 11-3/8
Motor Amps9
Table Size (L x W) (In.)12-1/2 x 17
Spindle Travel (In.)3-1/8
Motor Phase (PH)1
Wiring Remarks#N/A
Recommended Circuit Size (Amps.)#N/A
Prewired Voltage (V)115
Weight (Lbs.)172
Spindle TaperMT2/JT3
Assembled Machine Dimensions (In.)#N/A
Spindle Distance to Base (In.)46-1/2
Assembled Machine Dimensions (L x W x H) (In.)27 x 17 x 63-1/4
Prewired Voltage (V.)#N/A
Motor Voltage (V.)#N/A
