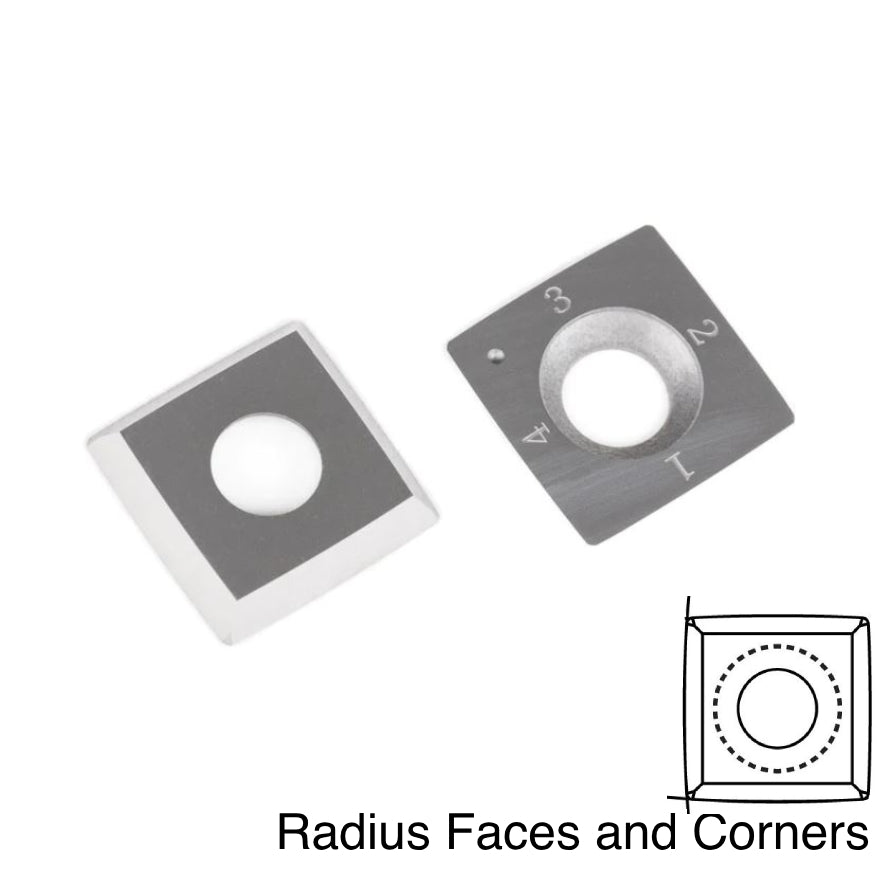

15 x 15 x 2.5mm Carbide Insert Knives with 150mm Radius Edges and Corners for SCM Xylent Jointer, Planer Cutterheads - Pack of 10


Durable C3 carbide indexable insert knives, designed for extended use, are available in a wide range of standard dimensions to suit various woodworking applications, including wood surfacing/planing cutterheads, groovers, helical planer cutter heads, and more. Square cutters are generally used for roughing, heavy cuts, and outside curves. These knives are meticulously polished to achieve a mirror-like finish, enhancing cutting precision and extending the lifespan of your tools.

Sold per a box with a quantity of 10 knives.

Shape: Square
Length: 15 mm
Width: 15 mm
Thickness: 2.5 mm
Holes: 1
Bevel: 30 degree

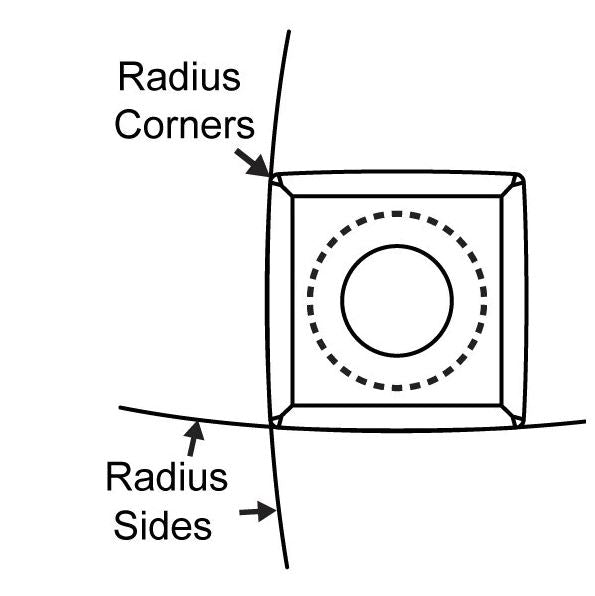

Cutting Edges: 4 with 150 mm Radius Faces/Edges and Radius Corners (8R)

Insert knives with radius faces/edges are used on cutterheads that have a sheer angle on the knives designed into the cutterhead. Greater shear angles require smaller radiuses, while lesser shear angles call for larger radiuses.

Insert knives with radius corners allow the knives to tuck under the other in the overlap pattern, which helps prevent the corners from dragging, reducing the likelihood of tear-out or splintering. The radius corners also reduce the cutting force by spreading the cutting load over a larger area, creating smoother cuts that can help extend the tool life and reduce noise during cutting.

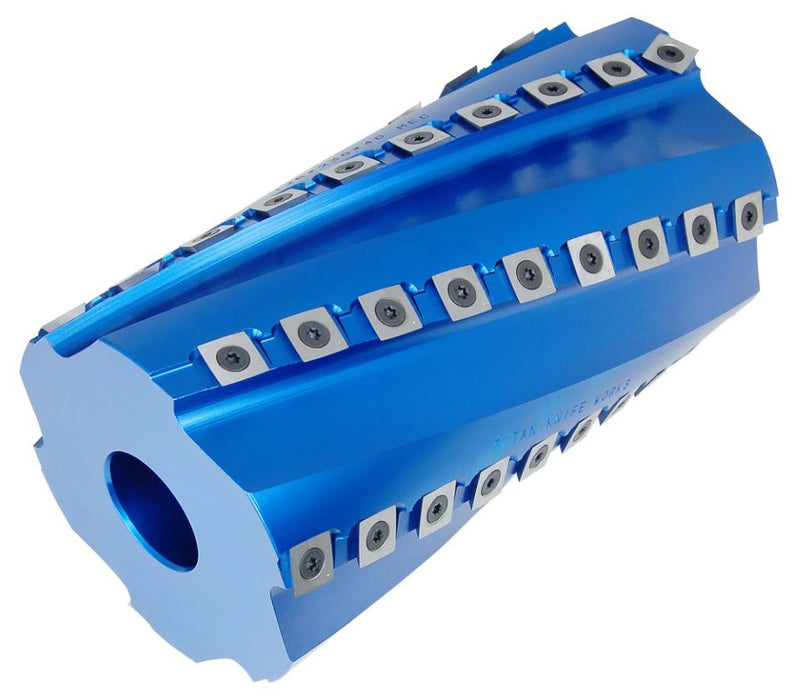

Compatible with: SCM Machines with Xylent Cutterheads; Jointers, Planers, Jointer/Planers, Combination Machines, Titan Spiral Shear Heads and Screws and more.

We advise our customers to measure their current insert knives as we cannot assure compatibility with tools from different manufacturers.

WSI Square Carbide Insert Knives Chart
