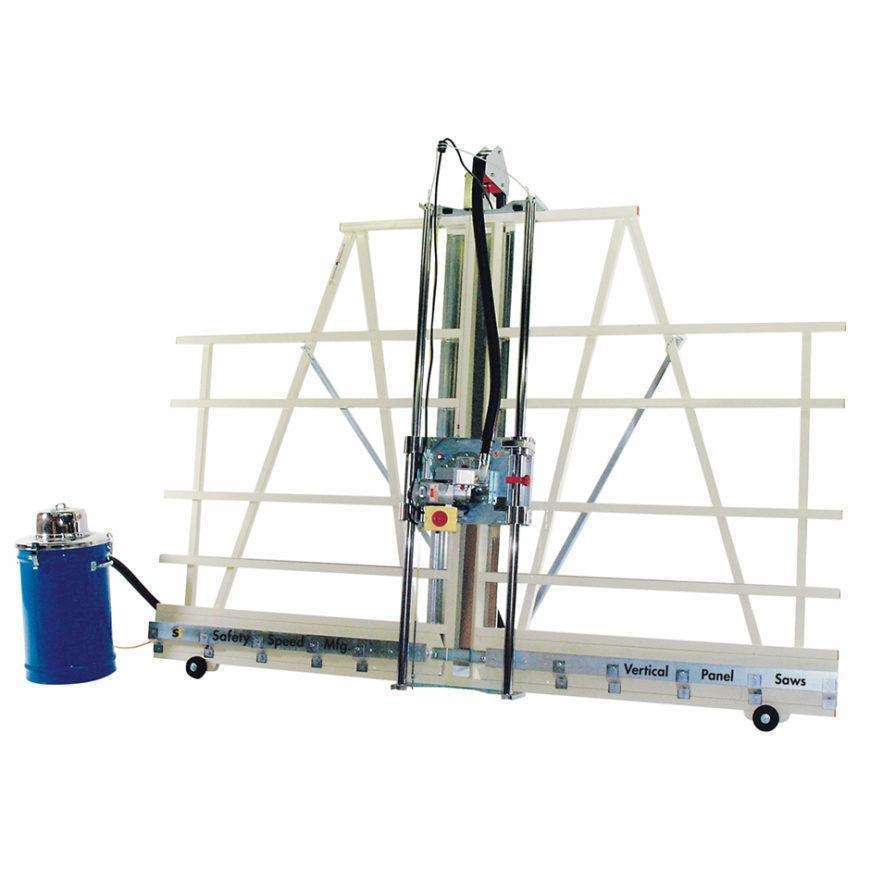

6400 Panel Saw

$4,756.00
SKU

Featuring a heavy duty worm drive motor, additional steel frame supports, aluminum wheels and double bearings, this machine will deliver an accuracy of 1/64″.

Standard Equipment

  • 3 Hp worm driven heavy-duty saw motor.
  • 10 ft. welded steel frame.
  • Chrome-plated 1 3/4″ guide tubes.
  • 8 Nylatron roller bearing systems.
  • Adjustable vertical and horizontal rulers.
  • Quick change from vertical to horizontal cutting.
  • Thin material pressure guard.
  • Solid aluminum material rollers.
  • Enclosed counterweight system.
  • Integrated dust collection bonnet.
  • Extended warranty.
  • TUV certified to UL/CSA standards.



Technical Data

Features
Max. Crosscut
64"/1625mm
Max. Rip Cut
Unlimited
Max. Cut Thickness
1 3/4"/45mm
Cut Accuracy, Straight and Square
1/64"/.4mm
Saw Blade Diameter
8"/210mm
Motor
13 amp, 120V, 220V
Frame Length
120"/3050mm
Product shipping information
Weight
598 lbs
Dimensions
124 × 17 × 92 in
