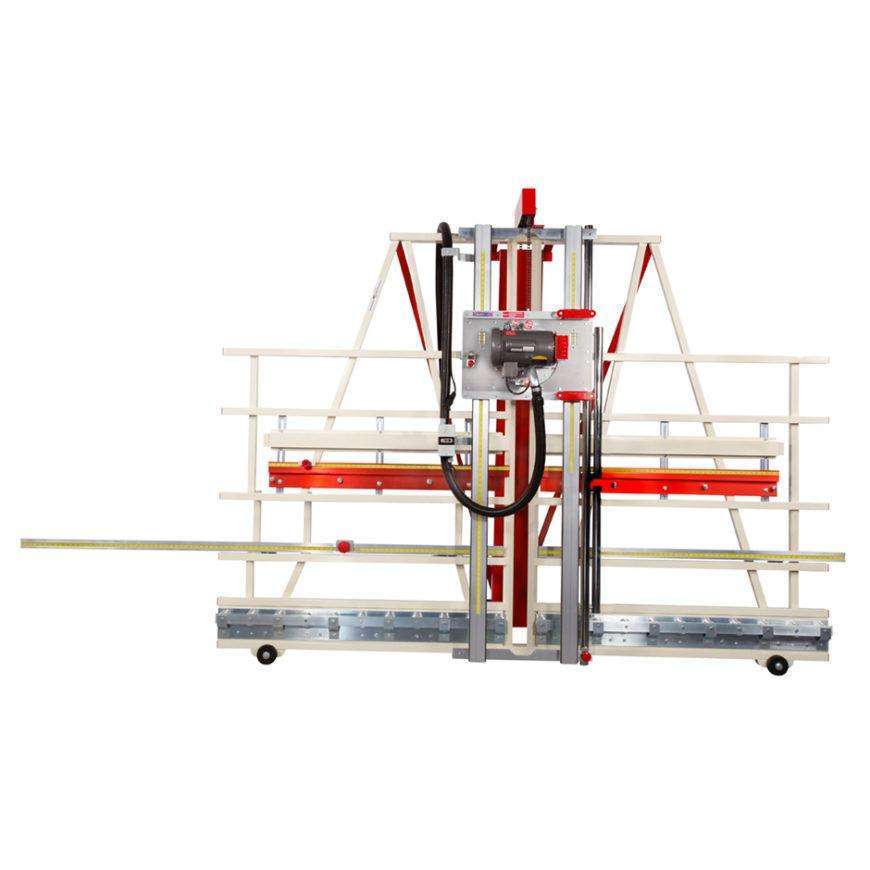

7400XL Heavy Duty Panel Saws

$12,798.00
SKU

Welcome to cutting at the highest production and accuracy level. If continuous sawing and tight tolerance is required for your operation, these units will deliver. Every component of this saw represents quality and performance. Showcasing 3 Hp, 3~ heavy duty induction motors, heavy extruded beams with precise dual-vee bearings, and the sturdiest frame on the market, these powerhouse machines will deliver cutting accuracies to 0.005” guaranteed.

Standard Equipment:

  • 3 Hp, 3~ continuous duty induction saw motor.
  • Welded steel frame and integrated stand system.
  • Dual V-track precision guide system.
  • Adjustable vertical and hori- zontal rulers.
  • Quick stop gauges (8′ left, 5′ right).
  • Saw blade. Quick change from vertical to horizontal cutting.
  • Floating pressure saw foot.
  • Solid aluminum material rollers.
  • Enclosed counterweight system.
  • MID-WAY FENCE™.
  • Dust collection ready.
  • Hold down bar.
  • Wheels.
  • 3 year warranty.
  • TUV certified to UL/CSA standards

Technical Data

Features
Max. Crosscut
64"/1625mm
Max. Rip Cut
Unlimited
Max. Cut Thickness
2 1/8"/55mm
Cut Accuracy, Straight and Square
.005"/.13mm
Saw Blade Diameter
8"/210mm
Motor
2HP, 1~ 230V, 3HP, 3~ 230V, 3HP, 3~ 460V
Frame Length
156"/3950mm
Product shipping information
Weight
1050 lbs
Dimensions
160 × 98 × 48 in
