Accord 500

by SCM

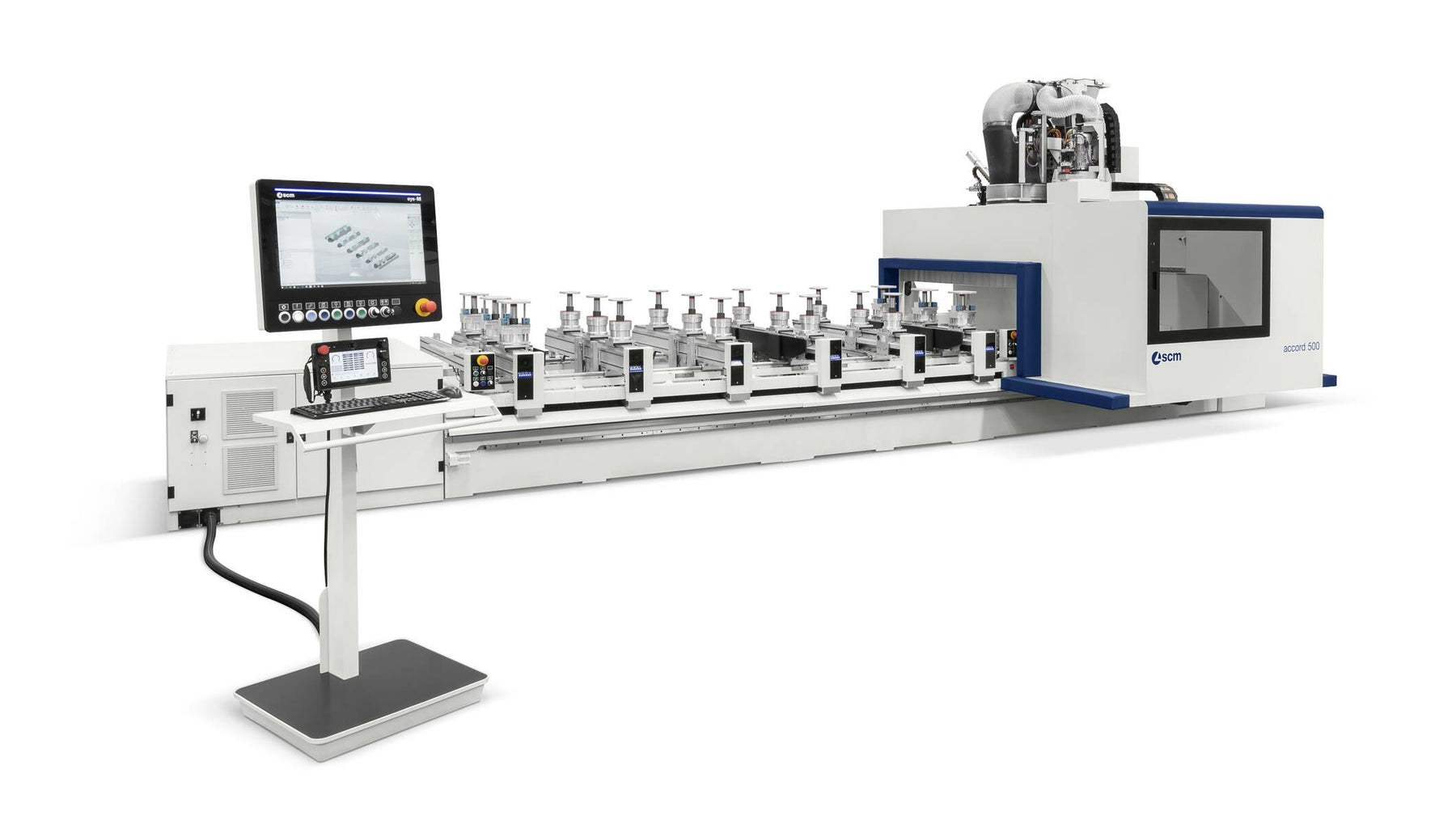

Accord 500 is the machining center that combines compactness, ease of use and high technology in doors, windows, stairs and solid wood elements machining. accord 500 is also available in the PRO-SPACE version without perimeter protections, ideal for companies that do not have a great deal of space available, but do not want to compromise on high performance.

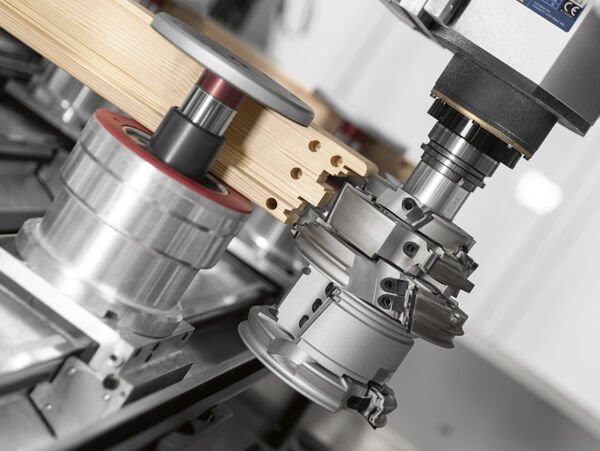

Speed and precision even in the most demanding operations thanks to the new KPX 5-axis operating unit with 17kW electrospindle that further increases the routing speed which now exceeds 15 m/min.

Efficient dust extraction system
in any condition thanks to the new chip conveyor device automatically positioned according to the machining program.

Up to 102 tools always available on board with the new integrated CADDY 35 tool changer: it plays the dual role of tool changer and "warehouse" serving the other on-board tool changers.

Optimized programming with Maestro power TMS that maximizes the tool changers capacity and its management. The operator will no longer waste time searching for the most suitable tool - the software will find and indicate its right position.


    accord 500
Working areas
X-Y-Z axes dimensions mm 3715 x 1600 x 300
5515 x 1600 x 300
6715 x 1600 x 300
X-Y-Z axes max. speed (PRO-SPACE) m/min 25-80-45
X-Y-Z axes max. speed (PRO-SPEED) m/min 90-80-45
Routing unit
5 axes electrospindle motor power (max.) kW (hp) 17 (23)
3/4 axes electrospindle motor power (max.) kW (hp) 21 (28,5)
5 axes electrospindle rotation speed (max.) rpm 24000
3/4 axes electrospindle rotation speed (max.) rpm 24000
Tool changers
TRB side tool changer  positions 11
CADDY side tool changer positions 35
RAPID rear tool changer positions 16
TRC rear tool changer positions 32
FAST on-board tool changer positions 16
VELOCE on-board tool changer positions 16
Drilling unit
Vertical and horizontal spindles (up to) n. 26
Rotation speed (max.) rpm 8000
Integrated saw blade Ø 125
