Accord 600 represents the best design solution for machining doors, windows, stairs and solid wood elements. In order to fully reduce production times, the machining center is equipped with a hyper-performing operating group with 3 independent units.

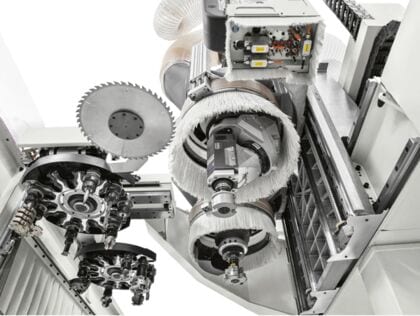

Tool changes in hidden time:
the operator group features two independent units, with 4- and 5-axis JQX electrospindles, each equipped with its own on-board tool changer.

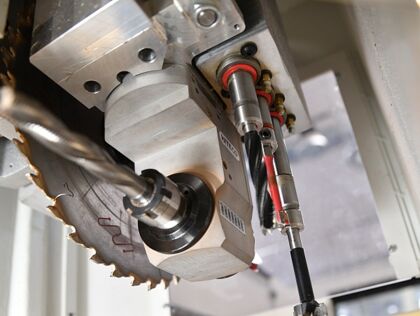

Extremely reduced production cycle times thanks to the exclusive BRC-S unit, even more flexible and compact, that allows to perform all the cutting, routing and drilling operations typical of window components.
FLEXIBILITY AND INNOVATION

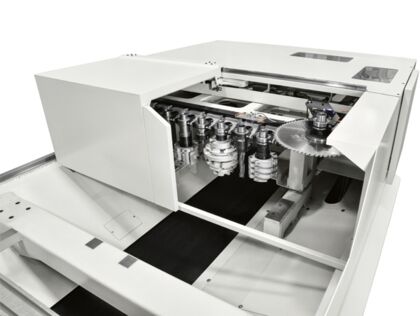

Up to 102 tools always available on board with the new integrated CADDY 35 tool changer: it plays the dual role of tool changer and "warehouse" serving the other on-board tool changers.

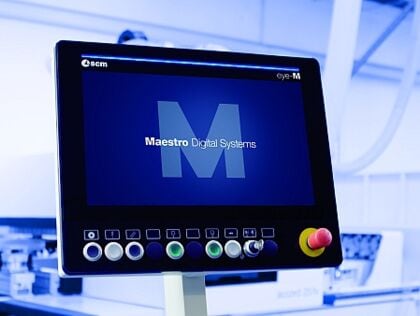

Optimized programming with Maestro power TMS that maximizes the tool changers capacity and its management. The operator will no longer waste time searching for the most suitable tool - the software will find and indicate its right position.
|X-Y-Z axes dimensions||mm||3715 x 1600 x 300
5515 x 1600 x 300
6715 x 1600 x 300
|X-Y-Z axes max. speed||m/min||90-80-45|
|5 axes electrospindle motor power (max.)||kW (hp)||13,5 (18,4)|
|3/4 axes electrospindle motor power (max.)||kW (hp)||21 (28,5)|
|5 axes electrospindle rotation speed (max.)||rpm||24000|
|3/4 axes electrospindle rotation speed (max.)||rpm||24000|
|TRB side tool changer||positions||11|
|CADDY side tool changer||positions||35|
|RAPID rear tool changer||positions||16|
|TRC rear tool changer||positions||32|
|VELOCE on-board tool changer||positions||12+12|
|Vertical and horizontal spindles (up to)||n.||26|
|Rotation speed (max.)||rpm||8000|
|Integrated saw blade||Ø||125|
