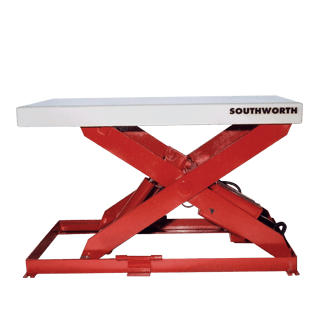

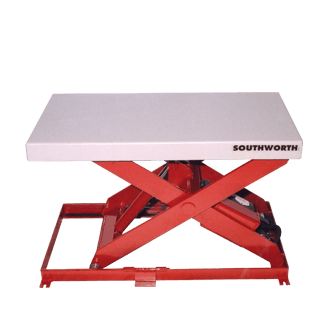

Backsaver Lite Lift Table

$0.00
SKU

These lighter capacity, light-duty hydraulic lift tables are built to the same exacting standards as our higher capacity Backsaver Hydraulic Lift Tables. They are available in 550, 1100, & 1500 lb. capacities. Ideal for light duty applications, they are an economical way to eliminate manual lifting and positioning.

Features

  • Low pressure hydraulics
  • Fast raising and lowering
  • Fully adjustable down speed
  • Heavy-duty torque tubes to minimize deflection
  • Lubricated for life pins, rollers and bushings
  • Full width straight through axles for increased stability
  • Heavy-duty wire braided hoses for maximum burst strength
  • Tell-tale return hydraulic line prevents fluid spillage
  • Built-in maintenance chocks
  • Light Duty Lift Tables available in 550, 1,100 and 1,500 lb. capacities
  • Standard Platforms: 20" x 36" and 24" x 48" (LL1.5-35)
  • Backsaver Lite Lifts operate on 115/1/60 power
  • Lifting Heights to 41 1/4"

Technical Data

Model
Number
Load
Capacity
Raised
Height
Lowered
Height
Standard Base & Platform Motor
HP
Voltage/
Phase/HZ
 Weight Budget
Range
LL05.5-26 550 lbs. 31-1/2" 5-1/2" 20" x 36" 0.5 115/1/60 310 lbs $2,100-$2,400
LL1.1-26 1100 lbs 31-1/2" 5-1/2" 20" x 36" 0.5 115/1/60 278 lbs $2,200-$2,500
LL1.5-35 1500 lbs 41-1/4" 6-1/4" 24" x 48" 0.5 115/1/60 450 lbs $2,500-$2,800
