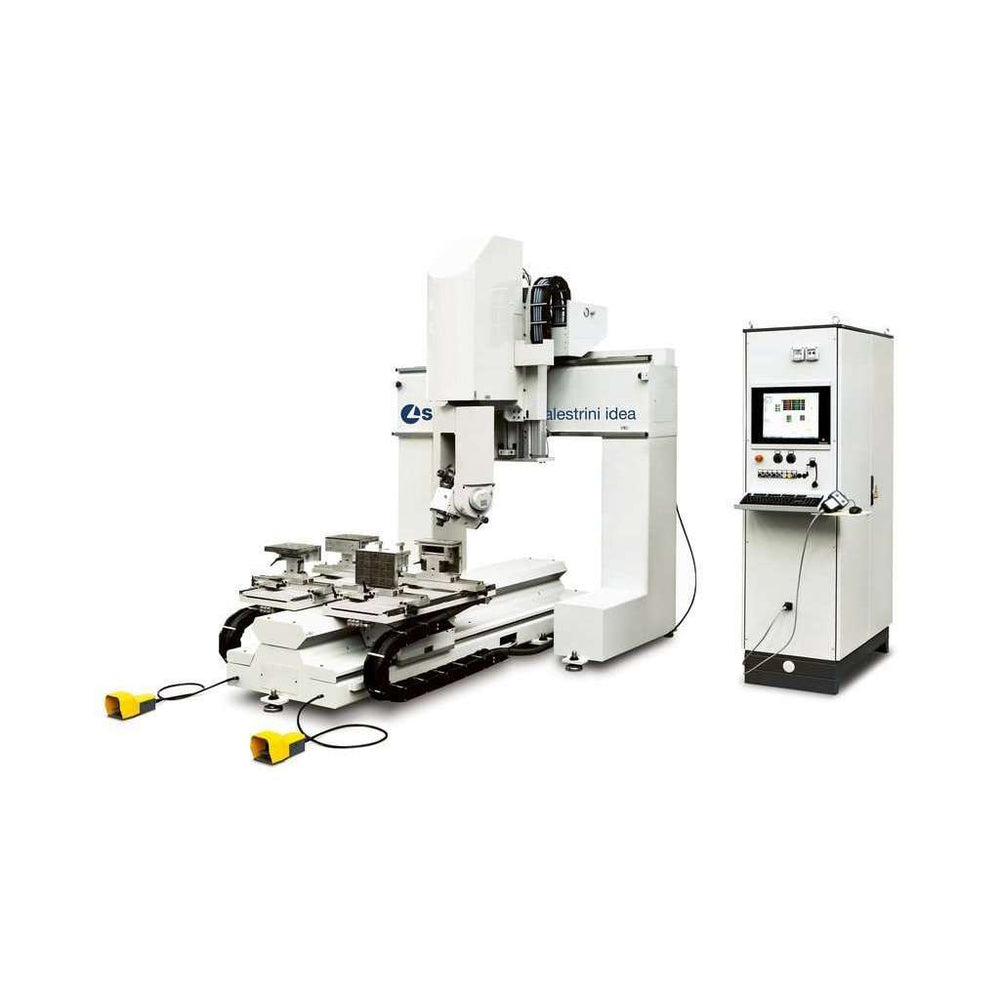

Gantry-type 5-axis CNC machining centre with two work benches. Ideal for routing complex wood surfaces, typical of chair components and similar of solid wood.
The machining head can use 4 independent spindles to switch from one operation to the next in a very short time. The machine is available in a number of versions with different work areas and machining units with 1 up to 4 spindles.
|AXES||X-Y-Z axes speed
B-C axes speed
|90 – 90 – 60 m/min
360° (in continuous) – 370 °
|X – Y – Z MACHINING AREA||1700 – 1900 - 700 mm|
ELECTROSPINDLES 24000 RPM -
CS33 (HSK63F + ER40)
|TOOL STORES||Stations for CS33 and LI11||No. 6 - 8|
