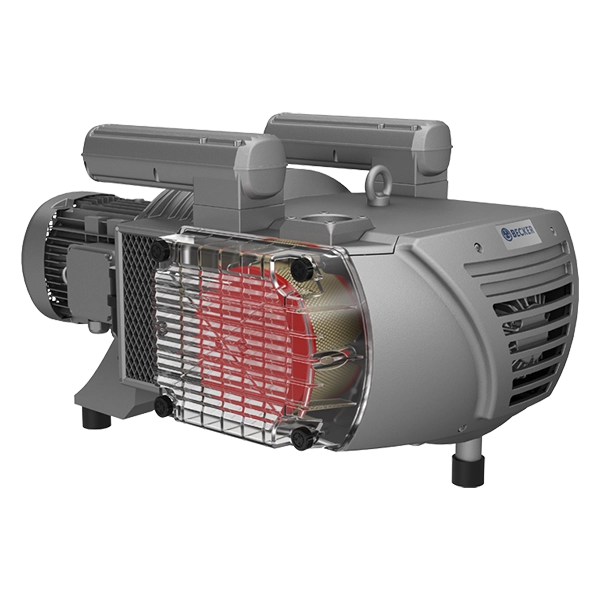

Becker VTLF 2.250/0-79 SK Oil-Free Rotary Vane Vacuum Pump 10 HP SPECIAL PRICING
Becker VTLF 2.250/0-79 SK Oil-Free Rotary Vane Vacuum Pump 10 HP SPECIAL PRICING

Becker VTLF 2.250/0-79 SK Oil-Free Rotary Vane Vacuum Pump 10 HP SPECIAL PRICING

by Becker
$8,900.00
SKU WSI-BECKERVTLF 2.250

The Becker VTLF 2.250/0-79 SK is a high-performance, oil-less rotary vane vacuum pump engineered for continuous-duty industrial applications. Utilizing self-lubricating graphite composite vanes, this dry displacement pump delivers exceptionally clean and dry vacuum performance without the need for oil changes. It operates with low maintenance and minimal downtime, making it the industry standard for CNC routers, woodworking spoil boards, printing presses, and industrial packaging systems. This complete package includes a high-efficiency 10 HP motor alongside integrated silencing valves, an air cooler, and built-in filtration to ensure quiet, cool, and highly reliable day-to-day operation.



  • 100 percent oil-free operation for completely clean and dry vacuum performance
  • German engineering designed for heavy duty, continuous operation
  • Self-lubricating graphite composite vanes ensure long service life with minimal maintenance
  • Integrated air cooler lowers operational temperatures and enhances efficiency
  • Sound-dampening housing and integrated discharge silencers provide quiet operation
  • Built-in clear cover suction filter allows for fast and easy visual inspection
  • Single shaft direct drive eliminates belts and reduces mechanical wear
  • Specifically optimized for material hold-down on CNC router tables and woodworking equipment
  • Pump Type: Dry Rotary Vane / Oil-Less Displacement
  • Configuration: Pump end only with U.S. flange, completely assembled
  • Open Flow Capacity at 60Hz: 174 SCFM
  • Open Flow Capacity at 50Hz: 146 SCFM
  • Maximum Vacuum: 27 inches Hg / 26.6 inches HgV
  • Motor Power: 10 HP Premium Efficiency (6.6 kW)
  • Motor Speed: 1150 RPM at 60Hz / 950 RPM at 50Hz
  • Electrical Compatibility: Three Phase, 230/460 Volts at 60Hz or 400 Volts at 50Hz
  • Motor Frame: 256TC Frame, footless
  • Finish: Grey Paint RAL 9007, no drip cover
  • Connection Size: 2 inch NPT
  • Noise Level at 60Hz: 79 dB(A)
  • Noise Level at 50Hz: 77 dB(A)
