Cantek CBS5 5HP Cyclone Dust Collector

Cantek CBS5 5HP Cyclone Dust Collector

by Cantek
Sale
$5,800.00
$5,510.00
SKU WSI-CantekCBS5

It is time to clear the air and upgrade your dust system to the next level!

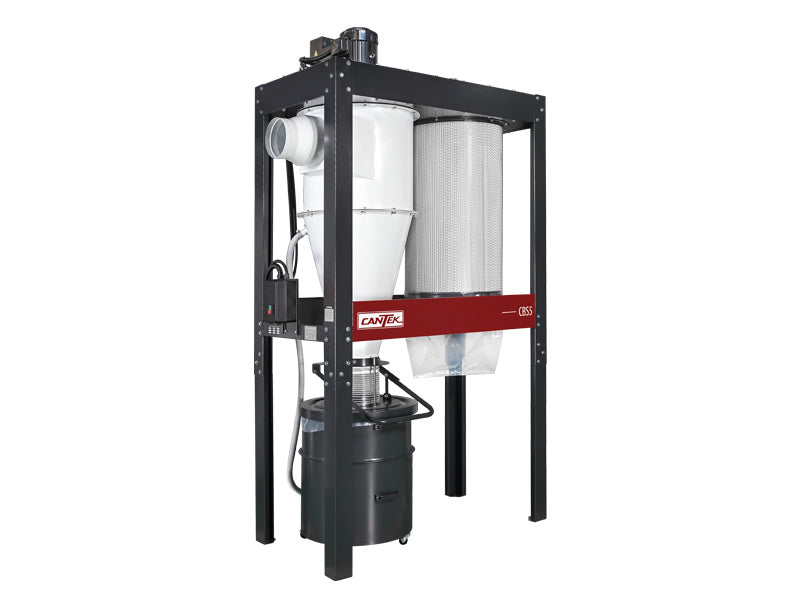

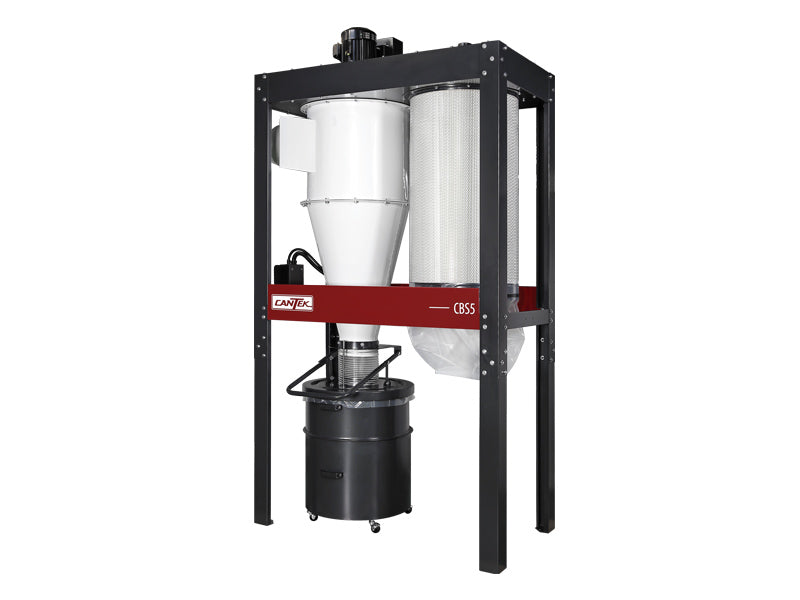

The Cantek CBS5 5HP Cyclone Dust Collector excels at efficiently removing both coarse and fine wood dust particles from your machinery. As dust is drawn into the system by a high-efficiency fan, it enters a cylindrical chamber where it circulates in a cyclonic pattern. Heavier coarse chips settle into a collection bin below, while fine dust proceeds through a HEPA filter. This meticulous filtration process ensures that only clean air is reintroduced into your workspace, promoting a healthier, dust-free environment for optimal productivity and breathable air.

  • Powerful 5HP blower motor generating 2450 CFM
  • The 2-stage cyclone design separates coarse dust from fine with the fine dust passing through a HEPA filer before the air is returned to the shop ensuring optimal air quality

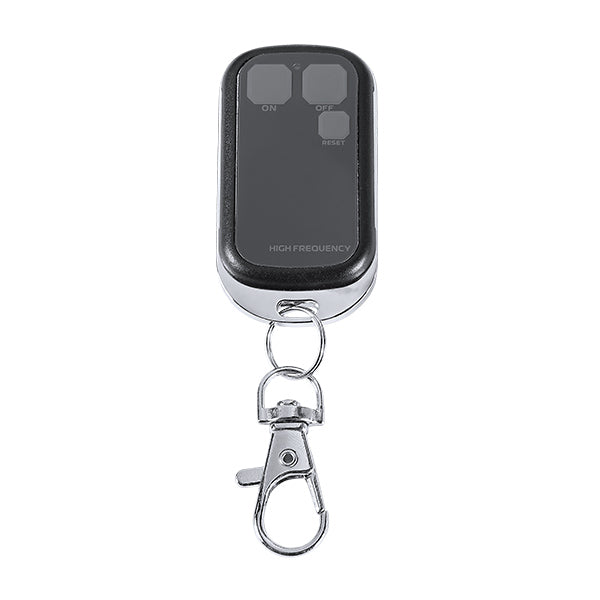

  • Remote control on/off for added operator convenience
  • Auto cleaning device for HEPA filter cleans every hour for 10 seconds

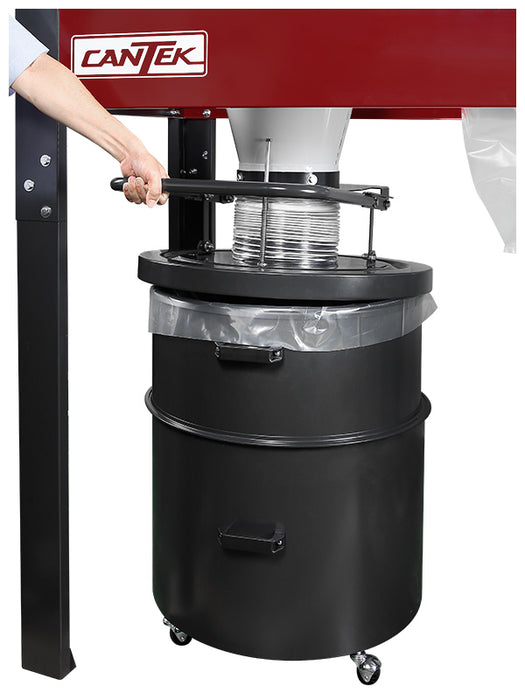

  • Convenient quick release connection for removing the coarse dust bin which is outfitted with casters
  • Bin is lined with plastic bag for simple and clean removal of dust
  • HEPA filter is equipped with an automatic
  • HEPA Filter is equipped with a quick release system to remove and dispose of fine dust particles

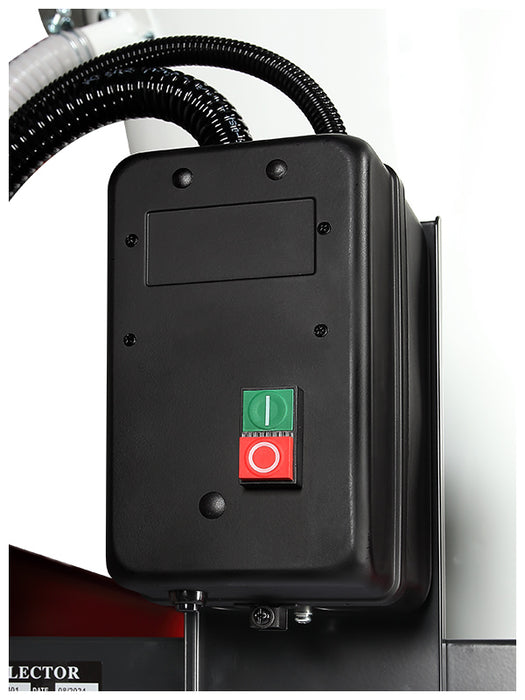

  • Equipped with magnetic switch
  • Fast and simple machine assembly
Blower motor
5 HP
CFM Capacity
2450 CFM
Fan diameter
16”
Dust port dimensions
Main Inlet = 10”
Reducer = 8”
Auto-cleaning motor
0.03 HP
HEPA filer size
23.6” x 38.4”
Dust drum capacity
50 gallons
Sound rating
78~81 dB
Machine electrics
230/3/60 (16 amps)
Machine dimensions
65.4” x 31.5” x 112”
Machine weight
607 lbs
Shipping dimensions
64 ¼” x 36” x 81 ½”
Shipping weight
786 lbs

Download Brochure
