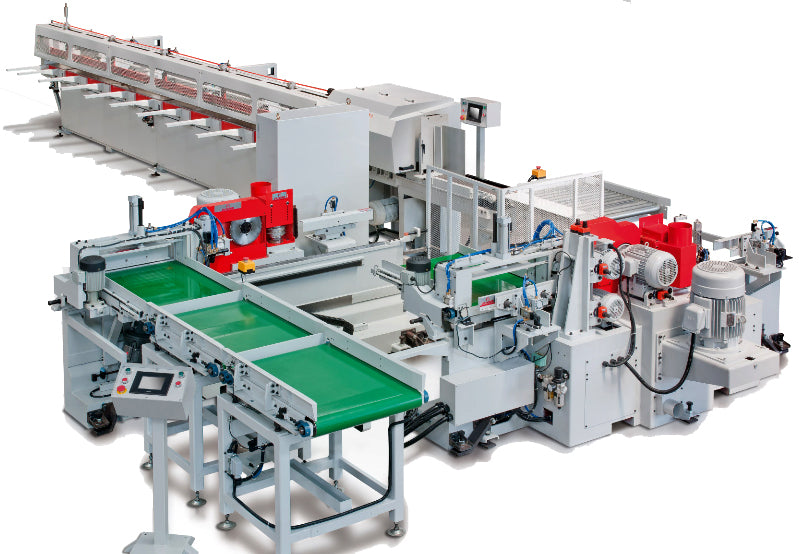

Cantek FL-08 Auto Finger Joint Line

Cantek FL-08 Auto Finger Joint Line

Cantek FL-08 Auto Finger Joint Line

Cantek FL-08 Auto Finger Joint Line

Cantek FL-08 Auto Finger Joint Line

Cantek FL-08 Auto Finger Joint Line

Cantek FL-08 Auto Finger Joint Line

by Cantek

$0.00

SKU WSI-CantekFL-08

Quantity

Quantity

FL-08 AUTO FINGER JOINT LINE INCLUDES THE FOLLOWING:

F-129-T2 AUTO INFEED TABLE

Length	900mm (35.4”)
Width	600mm (23.6”)
Infeed	Table½ HP (3Ph) x 2

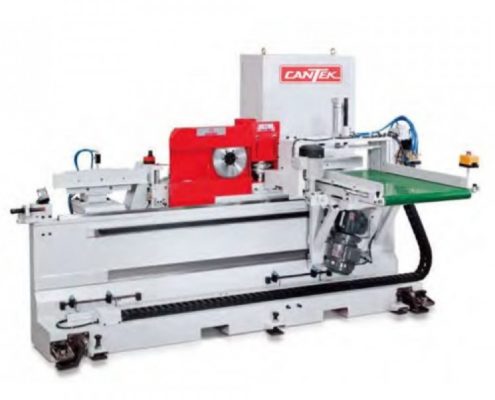

F-C07 AUTO FINGER SHAPER – LEFT

Table Size	600mm (23.6”)
Length	150~900mm (5.9” ~ 35.4”)
Width	20~60mm (0.78” ~ 2.36”)
Thickness	20~160mm (0.78” ~ 6.3”)

SPECIFICATIONS:

With 20HP (3Ph) for Main Spindle
With 5HP (3Ph) for Trimming Saw
With 2HP (3Ph) for Bottom Scoring Saw
With 1/2HP (3Ph) for Feeding Conveyor

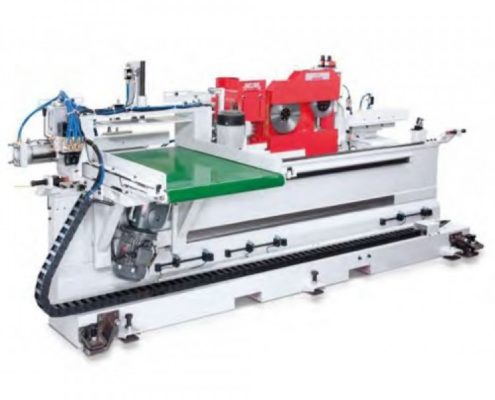

F-C08 AUTO FINGER SHAPER – RIGHT

Table Size	600mm (23.6”)
Length	150~900mm (5.9” ~ 35.4”)
Width	20~60mm (0.78” ~ 2.36”)
Thickness	20~160mm (0.78” ~ 6.3”)

SPECIFICATIONS:

With 20HP (3Ph) for Main Spindle
With 5HP (3Ph) for Trimming Saw
With Top and Bottom Scoring Saw, 2HP (3Ph) x 2
With 1/2HP (3Ph) for Feeding Conveyor
With Gluing System – Roller Type

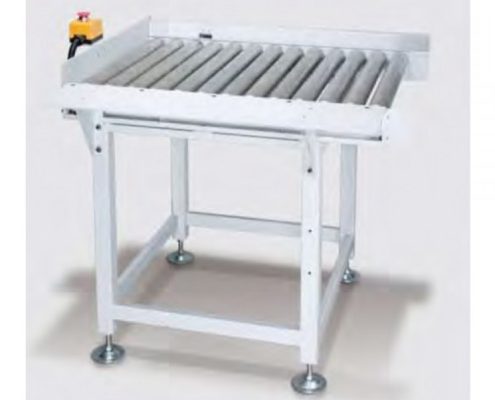

F-D16 TRANSFER ROLLER

Length	900mm (35.4”)
Width	600mm (23.6”)

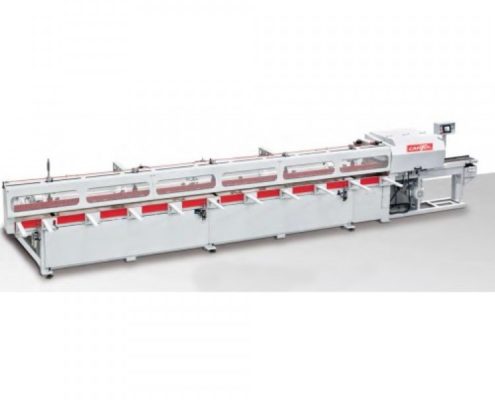

F-A05-6 TWO STAGE AUTO FINGER ASSEMBLER

Length	6000mm (236”)
Width	20~160mm (0.78” ~ 6.3”)
Thickness	20~60mm (0.78” ~ 2.36”)

SPECIFICATIONS:

With 2HP (3Ph) for Feeding Table
With 5HP (3Ph) for Sizing Saw
With 5HP (3Ph) for Oil Pump
With Saw Blade
Speed – Max. 4~5 Piece/Min.
