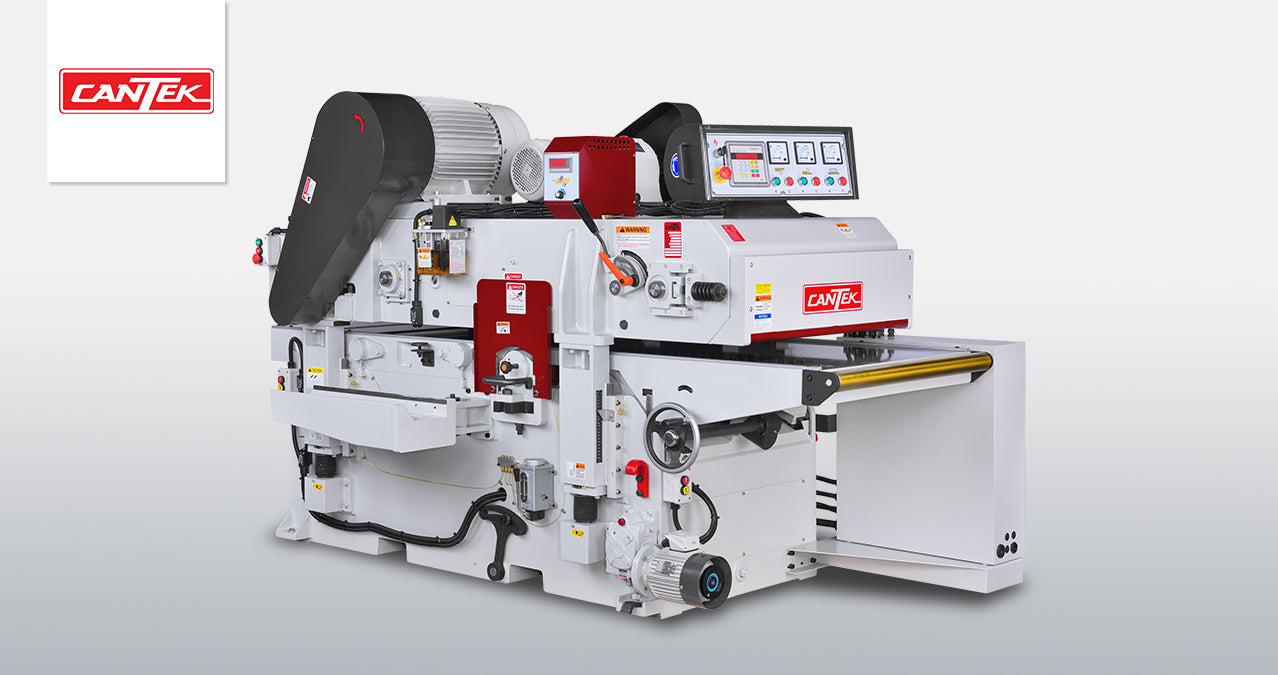

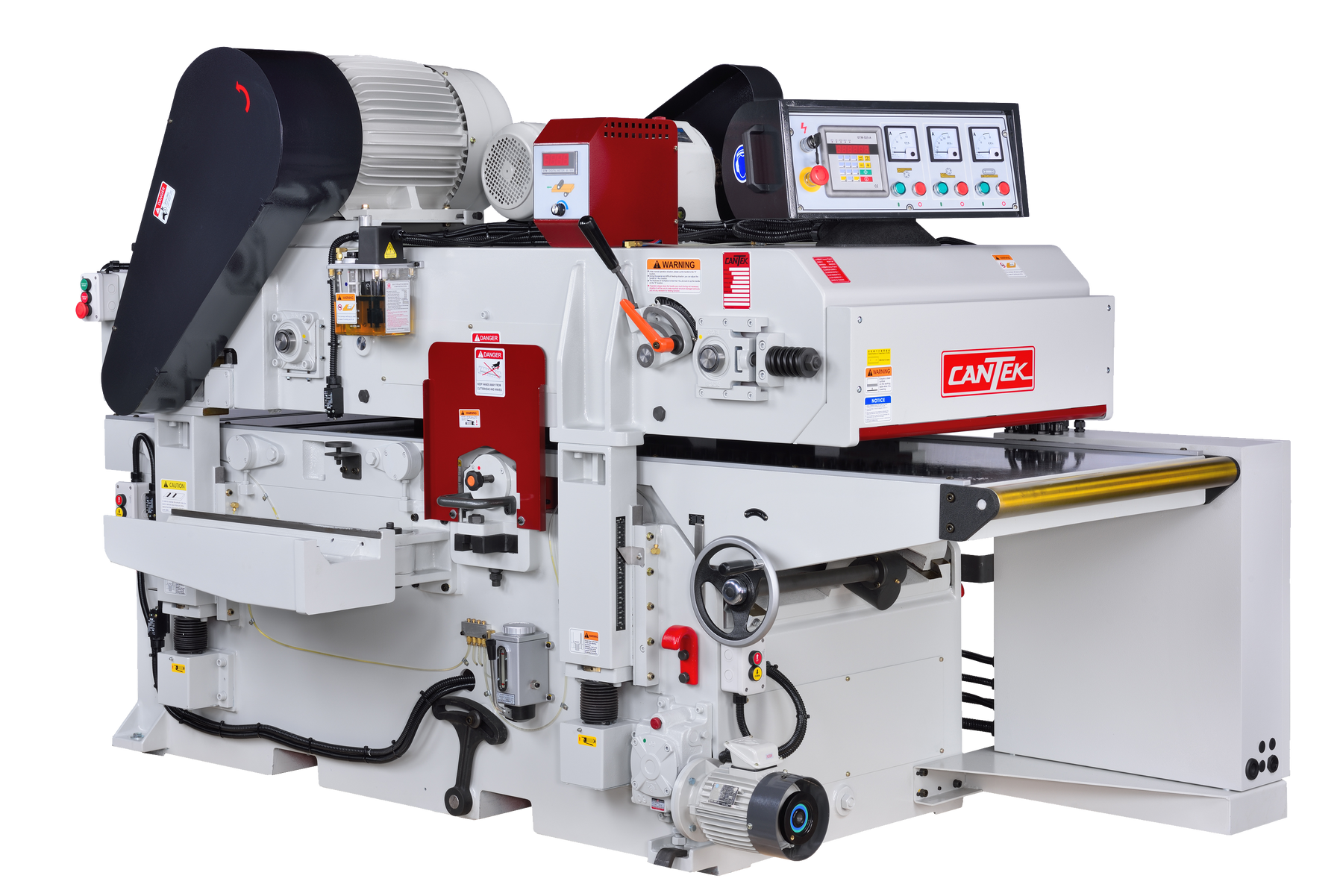

Cantek GT760ARD-8 30″ Double Surface Planer

by Cantek

Plane your material efficiently in a single pass.

The Cantek GT760ARD 30″ Double Surface Planer has a robust cast-iron body for industrial planing day in and day out.  The spiral insert knife cutterheads produce a smooth planed finish with maximum stock removal.  The material is passed over the bottom head with a spring-loaded pin feed system allowing it to act like a jointer to flatten the board prior to being planed to an accurate thickness with the top head.

  • Spring loaded conveyor pin system ensures material is passed over the bottom cutterhead to resulting in a flat and uniform board prior to planing to thickness on the top head
  • Spiral insert knife cutterheads with two-sided solid carbide knives produce a smooth finish with increased stock removal capacity and extremely quiet operation
  • Heavy-duty cast-iron machine body and table for vibration free cutting
  • 30″ wide x 8″ thickness capacity (optional 16” & 20” opening)
  • Cutterheads are spiral insert type with six (6) rows of carbide inserts
  • (2) driven and (1) idle bed roll for superior feeding of even difficult material
  • Digital electronic thickness adjustment in INCH and MM (Inch is to 0.001” resolution) for precise thickness control
  • Swiveling control panel for more ergonomic access to machine controls

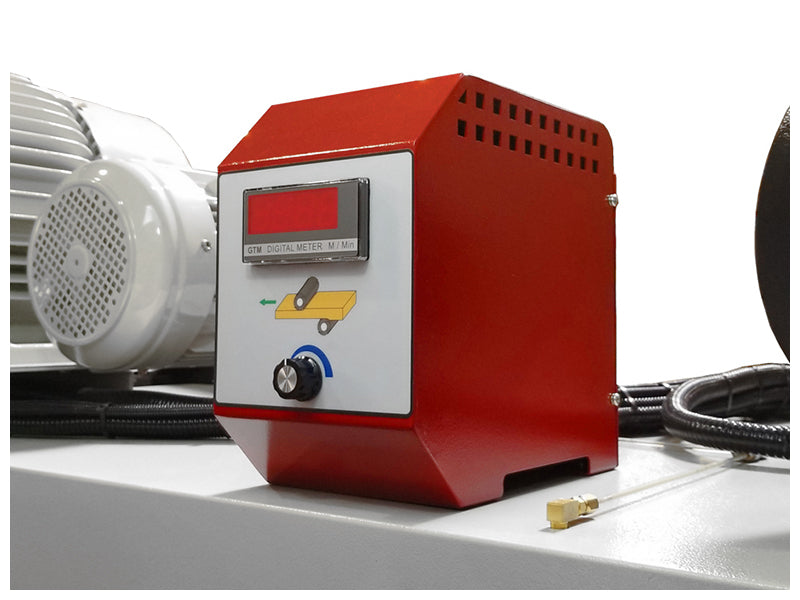

  • Inverter variable speed control with feed speeds from 26 to 79 FPM

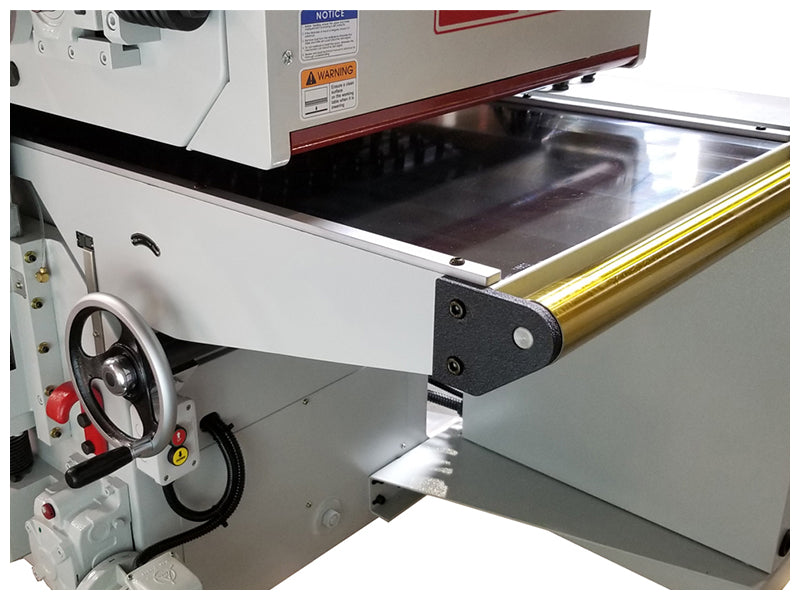

  • Easy to access external handwheel adjustment of infeed bed
  • Hard chromed worktable for high wear resistance

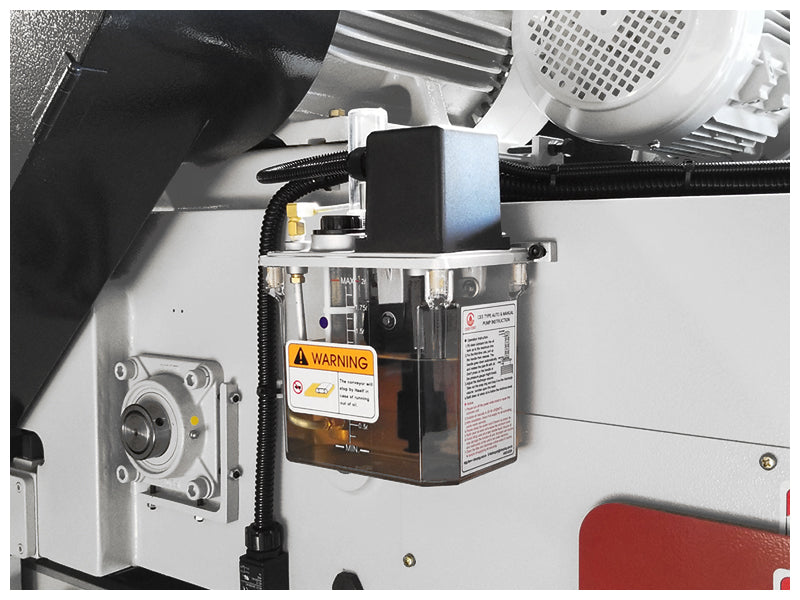

  • Auto lubrication to conveyor chain, central lubrication for dovetail elevation guideways
  • Section chipbreaker and sectional feed roller before top cutterhead
  • Rubber outfeed top roller to prevent chip marking
  • Over thickness safety shut-off bar across infeed.
  • Ammeter for each motor on control panel to monitor motor load
Max. working width
Max. working thickness
8″ (16″, 20″ optional)
Min. working thickness
Min. workpiece length
Bottom head motor
20 HP
Top planing head motor
25 HP (30 HP optional)
Feed motor
5 HP
Table elevation motor
1 HP
Cutterhead diameter
Knife dimensions
30mmx12mmx1.5mm (114 pcs per head)
Cutterhead speed
5000 RPM
Feed speed (variable)
26-79 FPM
Dust ports
(2) 6”
Machine dimensions (LxWxH)
107″ x 55″ x 75.6″
Machine weight
7040 lbs
Packaging dimensions
109 ½” x 55″ x 76 ½”
Shipping weight
 7700 lbs
