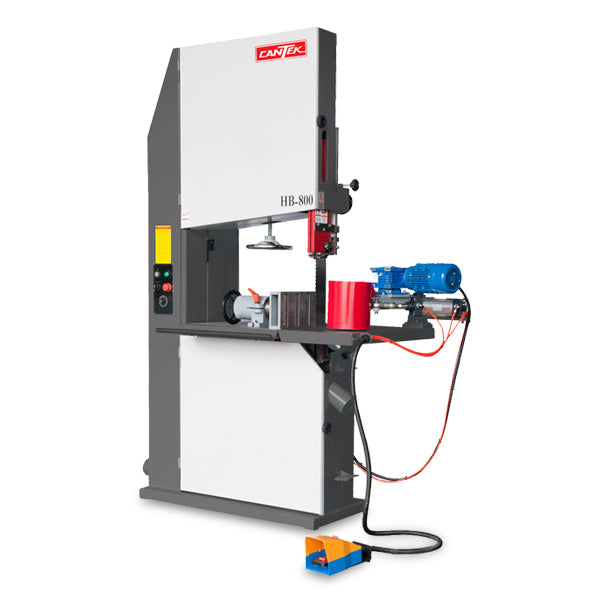

Cantek | HB800 32″ Band Resaw with Feeder

by Cantek
$16,160.00
SKU WSI-CantekHB800

Cut with confidence and accuracy.

The Cantek HB800 32″ Band Resaw with Feeder is built to last.  A 4” wide blade is driven by a powerful 20HP motor for precision straight resawing.  Equipped with a 1HP power variable speed feed unit which is pneumatically actuated to provide consistent feeding of the workpiece.  The feed speed can be variably adjusted from 3 to 56 FPM in accordance with the material type and thickness.

  • Cast iron upper and lower saw wheels are precision machined and dynamically balanced
  • Powerful 20HP saw motor
  • 4” wide resaw blade for precise straight resaw cutting
  • Specially designed Bakelite guide blocks provide rigid side blade support for straight cutting

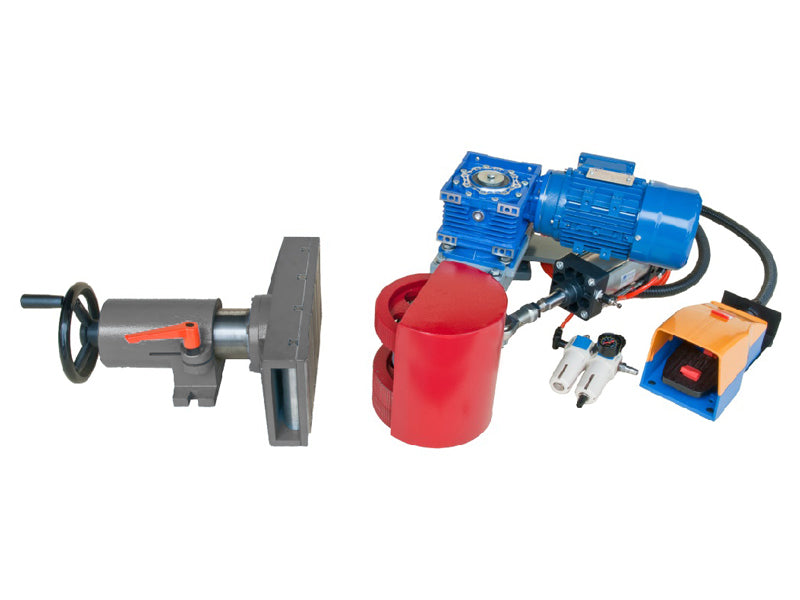

  • 1HP infinitely variable speed feeder with feed speeds from 3~56 FPM ensures consistent feeding of work pieces during resawing operations
  • Feeder is pneumatically actuated by a foot pedal for operator convenience
  • Adjustable roller infeed fence to facilitate with feeding of the workpiece
  • Upper and lower Bakelite guides ensure blade stability for optimum cutting results
  • Heavy fabricated steel machine frame

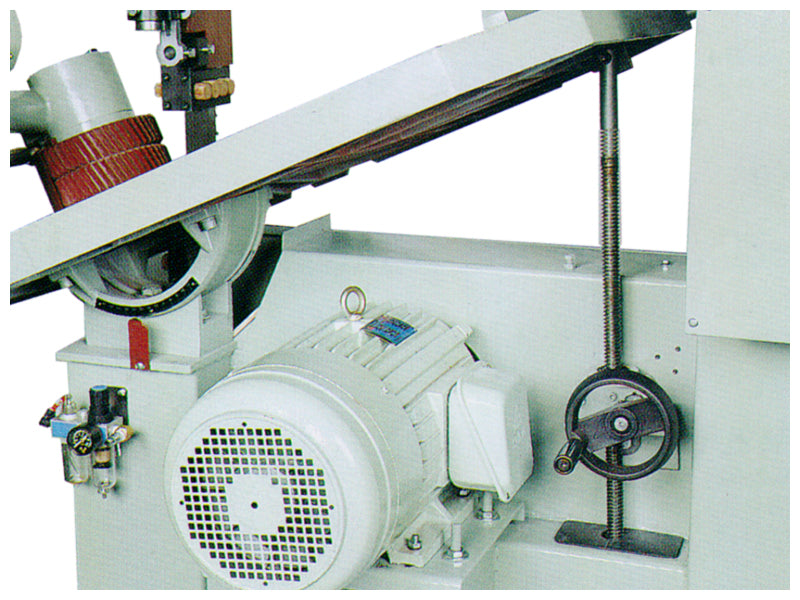

  • Large cast iron worktable is precision ground and can tilt to a maximum of 45o

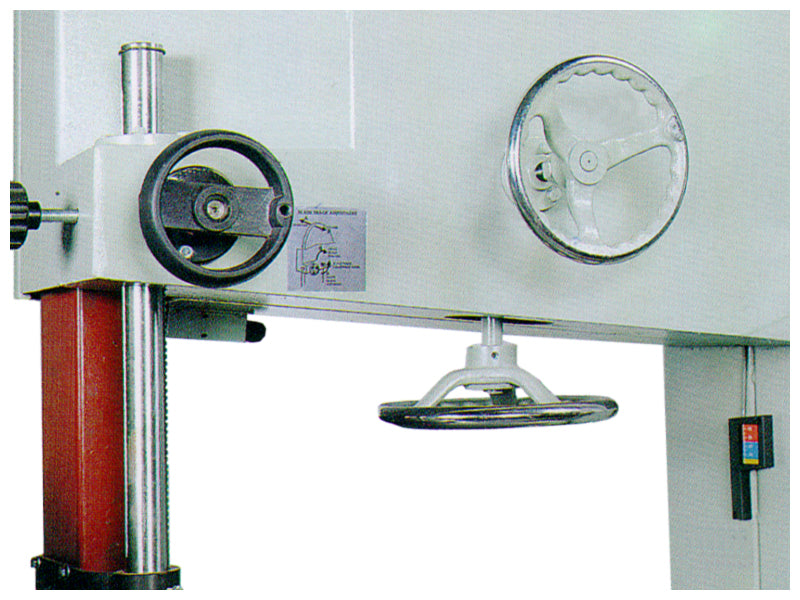

  • Convenient spring blade tension adjustment by means of a handwheel and gauge
  • Foot brake for braking wheels and blade
  • Rack & pinion blade guide adjustment
  • Band wheel is crowned for proper blade tracking and added stability of the blade
  • Blade lubrication system and reservoir for lubricant keeps blades cool
  • Auto Start-Delta control for main motor with emergency stop switch
  • Feed pressure is adjustable
  • Feed roller opening and closing is controlled by a foot switch for operator convenience
  • Knurled steel feed roller for maximum grip

RESAW SPECIFICATIONS

Saw wheel diameter
32”
Motor
20HP
Table size
45 ¼” x 31 ½”
Table tilting
0 – 45o
Throat capacity
30-5/8”
Height capacity
15-3/8”
Blade width
4”
Width of wheel
3.543”
Blade speed
5024 FPM
Blade length
216” to 217-1/8”
Dust hood diameter
4” x 2
Machine weight only
1470 lbs.
Electrics (complete with feeder)
230/3/60 = 54 Amps
460/3/60 = 27 Amps



FEEDER SPECIFICATIONS

Length of roller
6″
Diameter of roller
8″
Feed speed
3 – 56 FPM
Motor
1HP
Air pressure
72 PSI
Fence adjustment
4.72″
Feed opening
6″
Net weight
286 lbs.



RESAW & FEEDER DIMENSIONS

Machine & feeder net weight
1756 lbs.
Shipping weight
2266 lbs.
Shipping dimensions
100” x 33 ½” x 55 ½”
