Cantek, LBS300-5S 3-Sided Lineal Brush Sander

by Cantek
$17,000.00
SKU WSI-CantekLBS300-5S

Eliminate hand sanding with our economical sanding and de-nibbing solution for linear profile.

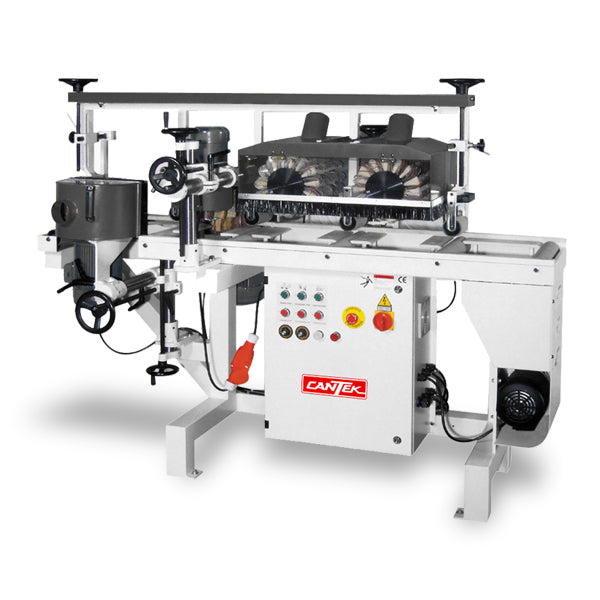

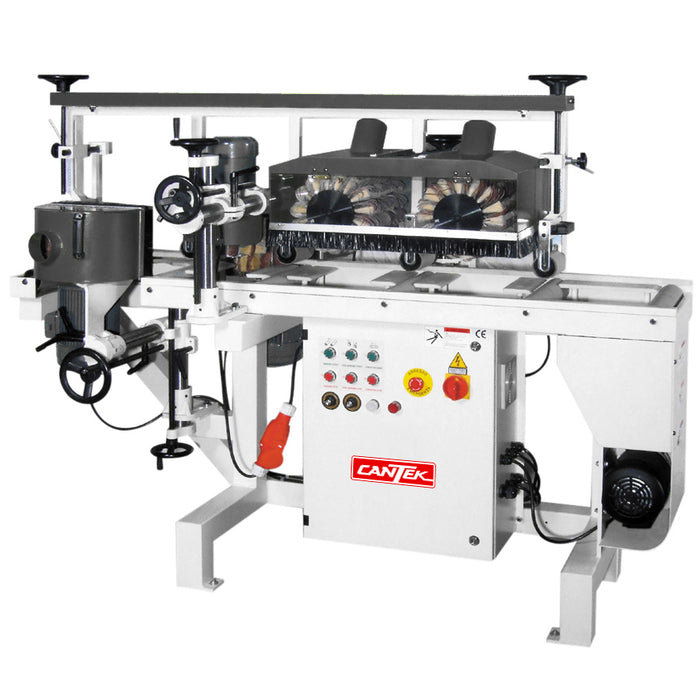

The Cantek LBS300-5S 3-sided lineal brush sander is designed to help with your everyday linear profile sanding needs. It can be used for white wood sanding and sealer sanding of linear parts such as mouldings, flooring, furniture components, window parts etc. The machine works well as a standalone unit, or as part of the finishing line.

  • Designed for sanding linear profiled wood on three sides
  • Brushing heads consist of abrasive cloth strips and cleaning brushes and are design to access profiled components.
  • Ideal for sanding and defibbing linear products including:
    • Moldings, skirting, architrave, flooring
    • MDF, hardwoods and softwoods
    • Paint, sealer, and lacquer sanding
  • Main Frame is fabricated of heavy steel plate and ribbed to minimize vibration and deflection.

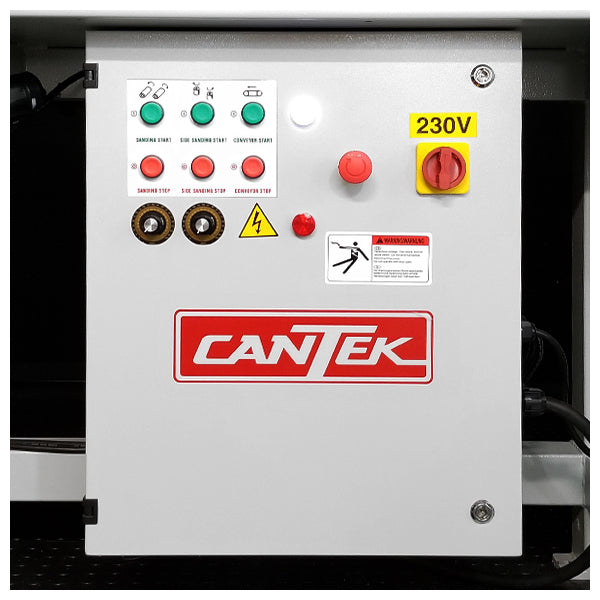

  • Centralized Control Panel for operator convenience. Clearly Identified & colour coded push buttons simplifying setup & operation
  • Variable speed adjustment by inverter (VFD’s) to all brush sanding heads (200-1200 RPM) for optimum sanding results

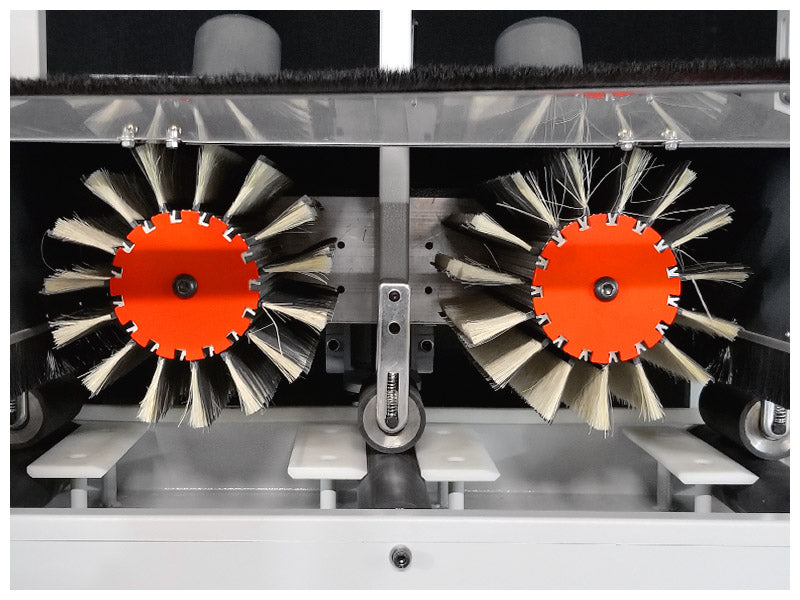

  • (2) Sets of top brushing sanding heads with working height adjusted by handwheel and can be set on an angle for bevel siding & angled mouldings

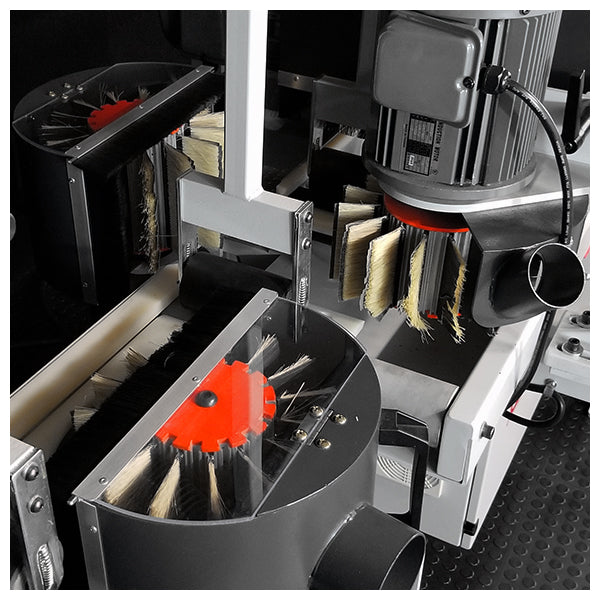

  • (1) left side brush sanding head is adjustable up/down, in/out and can be set on an angle
  • (1) right side brush sanding head which can be adjusted up/down and in and out and can be set on an angle
  • (1) Additional left side sanding head is adjustable up/down, in/out, and can be set on an angle

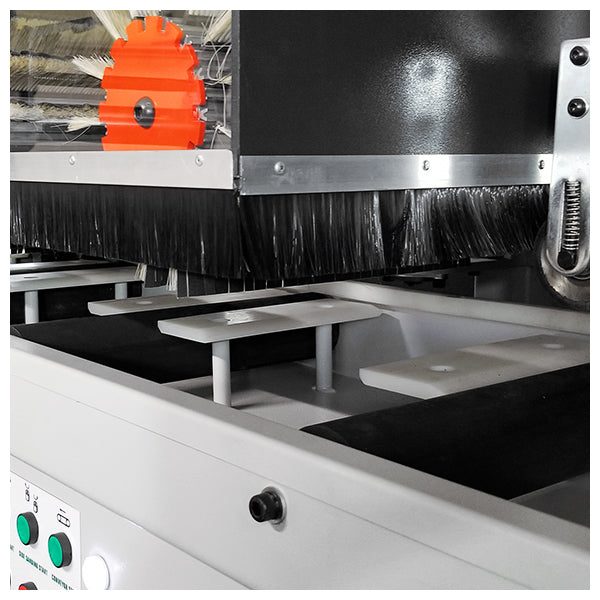

  • Top Press Rolls Working Height adjusted by hand wheel.
  • Brushing head consists of cleaning brush units and abrasive cloth units

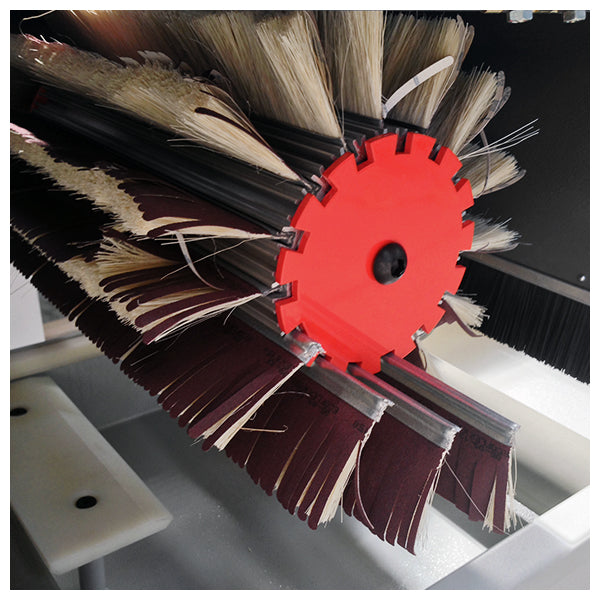

  • The dovetail pocket design allows for easy abrasive/brush replacement.
Max. working width
11″
280mm
Max. working height
4″
100mm
Min. work-pieces length
33″
840mm
Min. work-pieces thickness
3/8″
9.5mm
Feed speed (Variable)
6.5 ~ 27 FPM
2~8.2 M/min
Speed of sanding wheel
200 ~ 1200 RPM

Top brush head motor
2 x 3/4 HP
2 x .55KW
Left brush head motor
1 x ½ HP
1 x 0.37KW
Right brush head motor
1×1/2 HP
1 x 0.37KW
Left brush head motor
1×1/2 HP
1 x 0.37KW
Conveyor motor
1/4 HP
0.18KW
Moving brush head motor
1/3 HP
0.25KW
Machine dimension (LxWxH)
73” x 49” x 61”
1840 x 1230 x 1550mm
Packing dimension (LxWxH)
81” x 40” x 64”
2050 x 1010 x 1630mm
Net weight
748 LBS
340 KGS
Gross weight
1034 LBS
470 KGS
