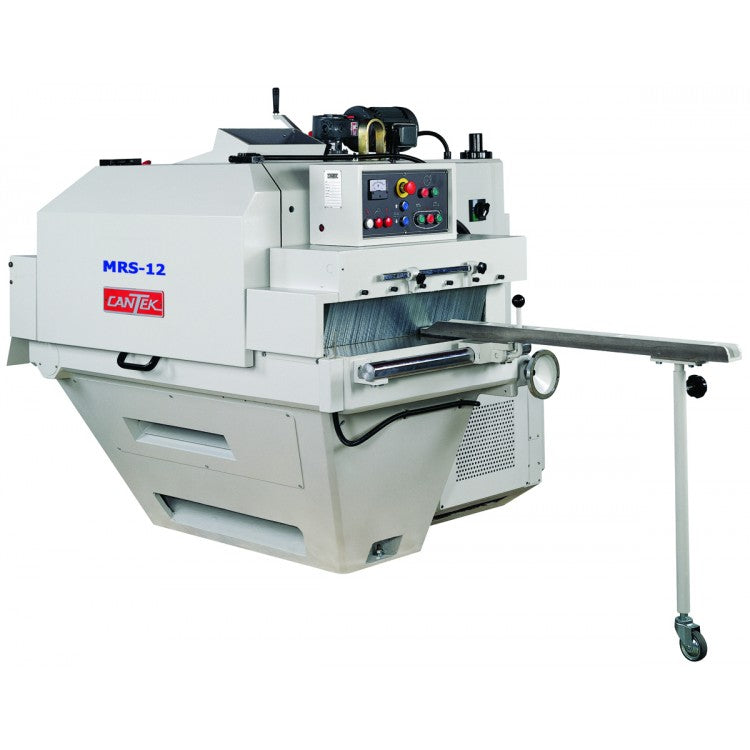

Cantek | MRS12 Multi Ripsaw

by Cantek
$42,400.00
SKU WSI-CantekMRS12

  • The Frame is Cast Iron, all the main parts are enclosed, ensuring protection and perfect stability
  • Straight line caterpillar feeding with heavy guided chain with rubber inserts. Chain blocks are special cast iron with heat treated & precision ground pins
  • Nickel chrome steel Saw Arbor with 70 mm OD – dble. keyed quick removal sleeve
  • 3 sets of Anti-Kickback Fingers 2 top, 1 bottom
  • Powered Rise & Fall to the pressure rollers
  • New style round Fence Bar support with quick shift long fence
  • Automatic Centralized lubrication system
  • Automatic Star-Delta Starter (slow speed start) and low voltage controls
  • C.E style European guard & safety features
  • Long fence for control of long material
  • Automatic star-delta starter (slow soft-low amperage start) and low voltage controls
  • Electrics to 230/460 or575 volts 3 phase 60 cycles – as required to UL/CSA Standards
  • With 3 rubber coated hold down rollers at outfeed end of machine
  • Overload protection device – Feed speed will slow down automatically if saw motor becomes overloaded
Maximum working thickness 3 3/8” (85mm) with standard pressure shoe

*2 ¾” (70mm) with short stock attachment:

Minimum Length 12” with short stock attachment
Saw Sleeve Usable Length
(between outside saws) 12″ (305 mm)
Sawblade Dia. 200 to 305mm (8” to 12”)
Saw arbor Sleeve OD (Diameter) 70 mm
Saw arbor diameter 50 mm
Saw arbor vertical adjustment 3.6” (90 mm)
Saw Motor HP 60 HP 460 volt
Powered Pressure Rollers(Rise/Fall) ½ HP motor
Saw Arbor Speed 3800 RPM
Feed Speeds 25 – 100 FPM
Feed Motor HP 3 or 5 HP
Voltage Machine can be ordered 230,460,
or 575 v, stock machine is 460 v electrics
Table Size 30” x 60″
Table Height from floor 33.5″
Net Weight 4510 lbs.
Shipping Weight 5060 lbs.
Machine Dimensions 82.68” 59” x 56 ½”
Shipping dimensions 70.87” x 66.93” x 63”

Machine includes HD Quick Removal Gang Saw Sleeve  (70mm OD with 2 Keys) & a set of 38 Spacers
