CANTEK MX350 (230V 3Ph) - High Frequency Automatic Edgebander with Premilling (INCLUDES FREIGHT)

by Cantek
Sale
$24,500.00
$21,990.00

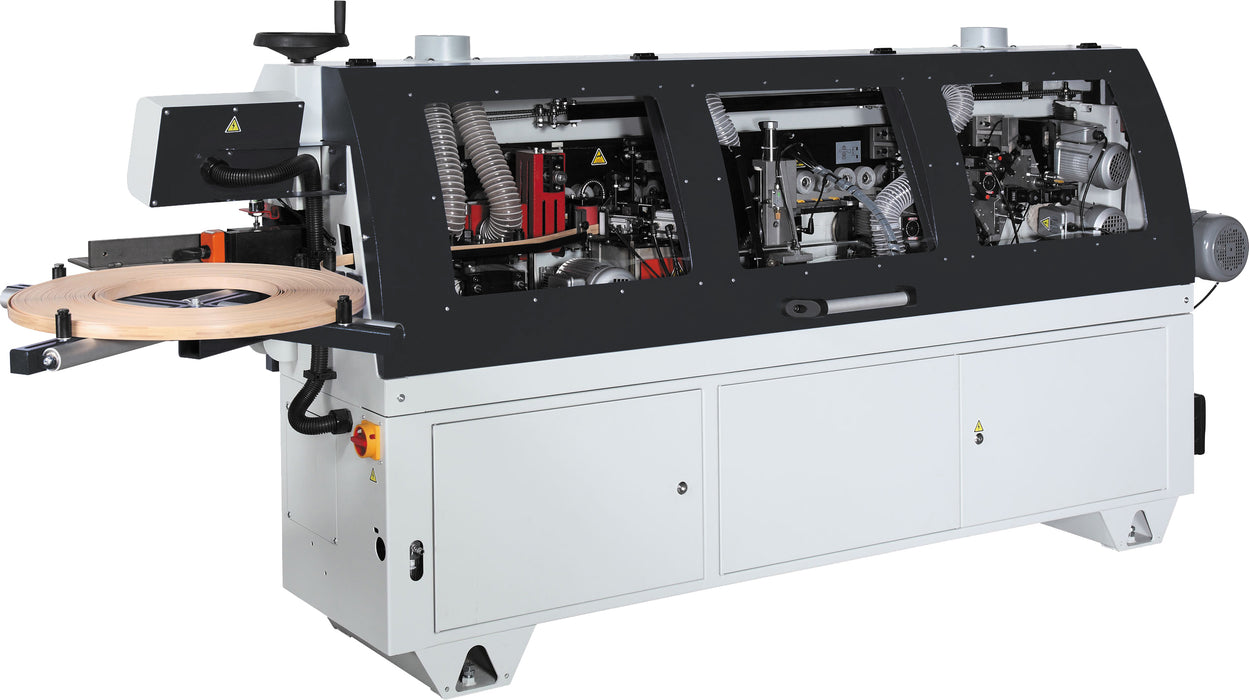

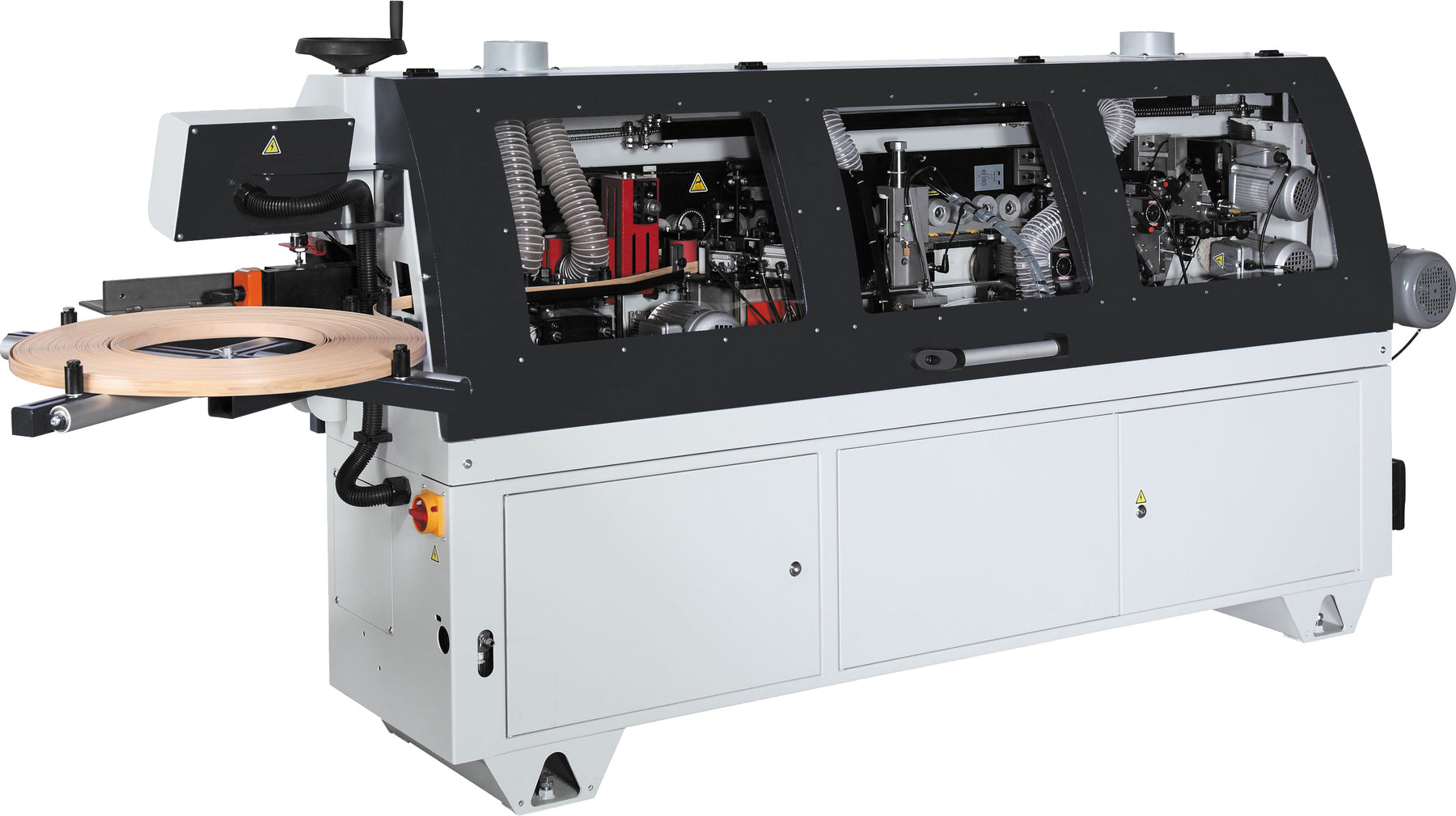

The MX350 from Cantek is designed to be a compact, and durable edgebander offered at an affordable price. This machine is equipped with premilling, end trimming, flush trimming, PVC scraping, and buffing. User friendly controls and adjustments allow for efficient changeovers of edge tape thicknesses between 0.4mm & 3mm.



FEATURES

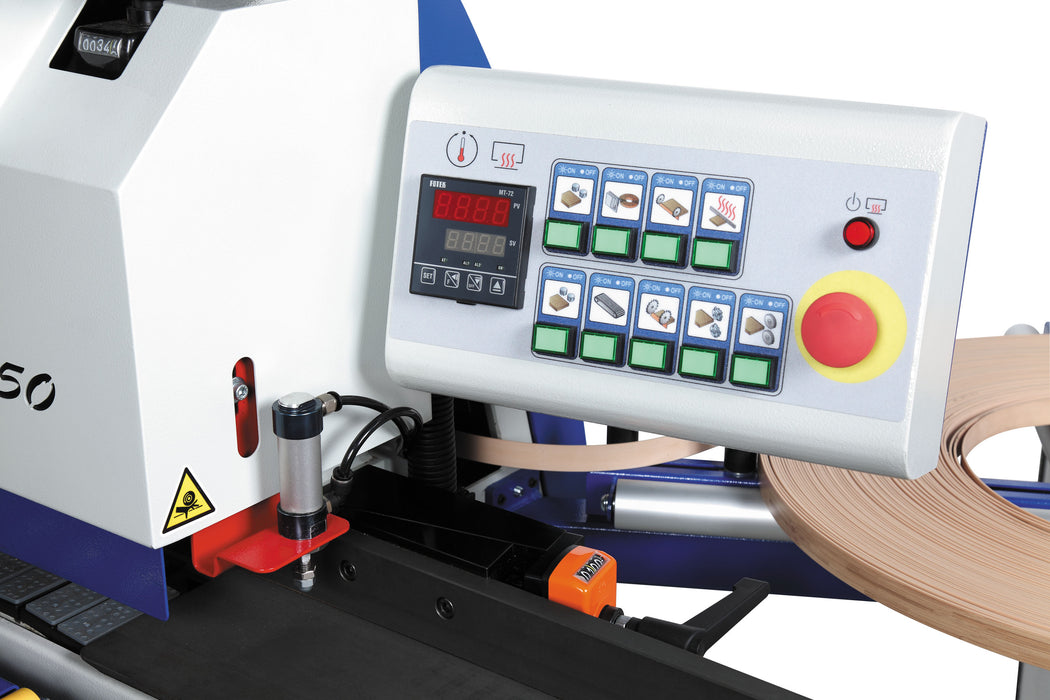

· PLC control system with LED display and keypad

· Work-piece is fed by chain

· Edge coil support plate: Ø 800mm (31 ½”), for PVC/ABS

· Edge feeding is Automatic edge feeding with a thickness capacity of 0.4–3 mm; strip material can be hand-fed

· Coiled edge bands up to 3 mm in thickness in Hard-PVC/ABS are cut with guillotine shears.

· Teflon-coated hot-melt glue pot

· Spring loaded pressure unit with (2) pressure rollers

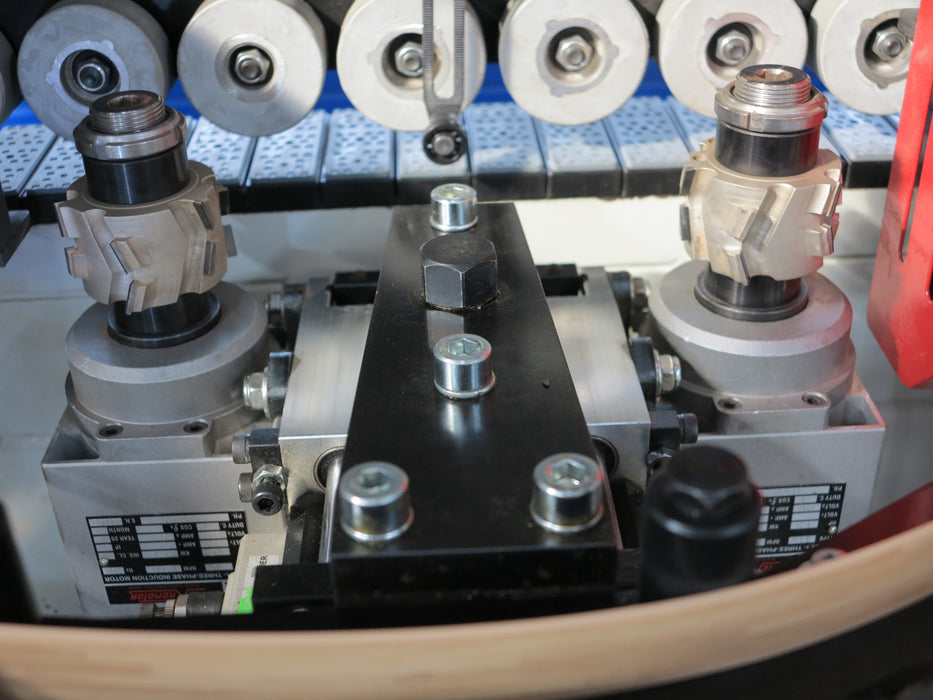

· Pre-milling function can remove up to 3mm and is designed to provide an ideal edge for applying edge tape by cleaning up poorly cut panels. (2) counter rotating diamond cutterheads for optimum cut results.

· High frequency 12000 RPM end trimming unit, with Ø100mm (4”) TC-Saw blades

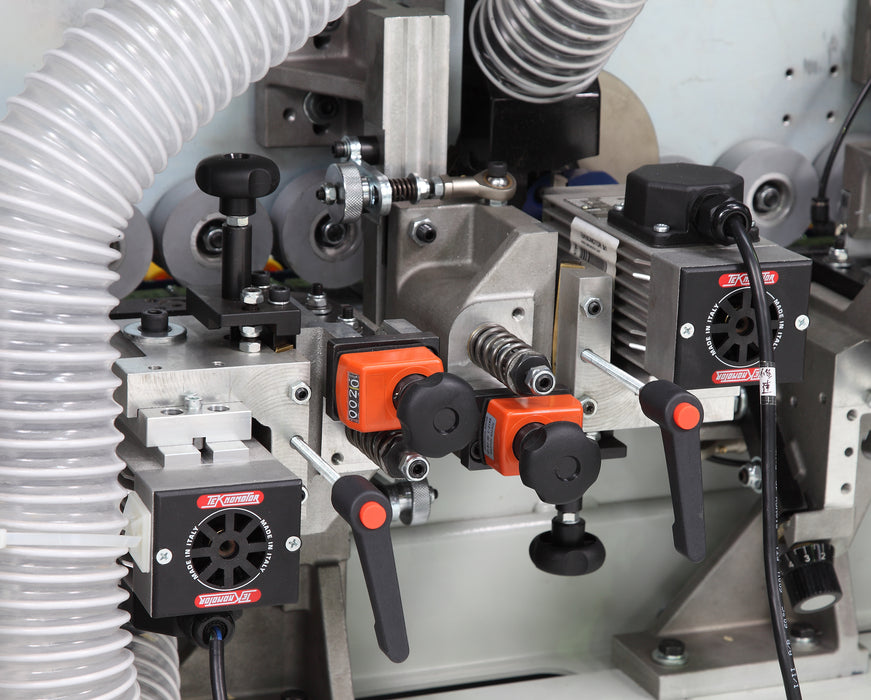

· High frequency 12000 RPM top & bottom trimmers with insert knife cutters for radius trimming & bevel trimming

· Radius scraper with 2mm radius

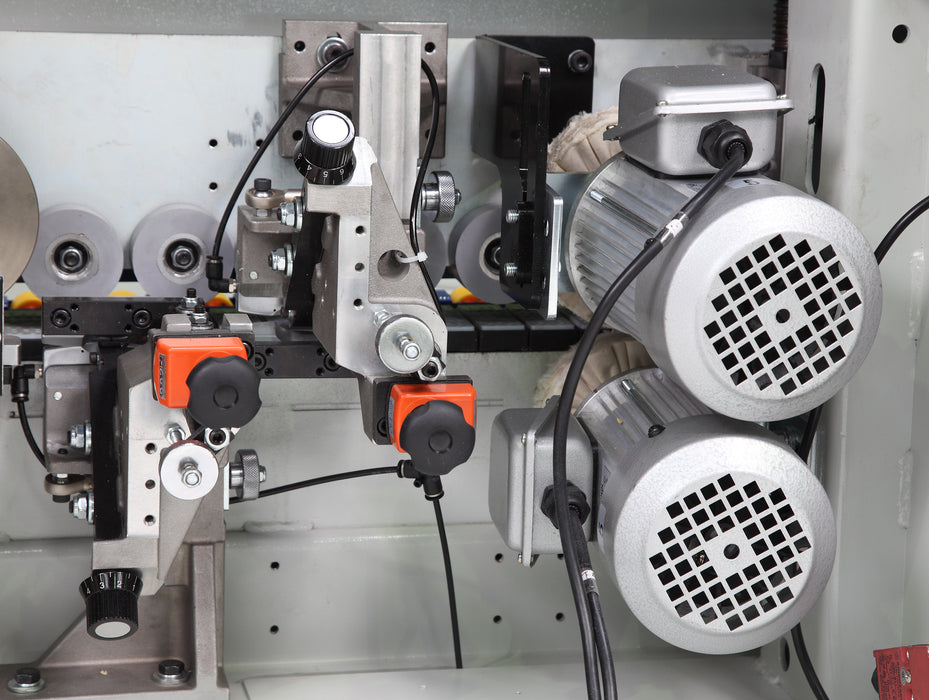

· 3000 RPM top & bottom buffing units

· Heavy duty pressure beam with extendable work-piece support

· Heated infeed fence for pre-heating the panel for optimum glue penetration

SPECIFICATIONS

Feeding speed 29.5 FPM 9 meters/min.

Panel thickness 0.315”~1.77” 8~45 mm

Edge thickness 0.0158”~0.118” 0.4 ~ 3 mm

Max. pre-milling thickness 1 ¼” 32mm

Min. panel width 4” 100 mm

Min. panel length 6.7” 170 mm

Working table height 33.47” 850 mm

Dust collection outlet Ø 5” x 2 Ø 127 mm x 2

Electrical consumption 10 HP 7.5 KW

Electrical 230/3/60 = 40 Amps Full Loads

Machine weight 1452 lbs 660 kgs



MOTOR SPECIFICATIONS

Feeding motor 0.75 kW

Pre-milling motors (2 pcs) 1.1 kW each (12000 RPM)

Glue spindle motor 0.18 kW

Front/rear trimming motor 0.22 kW (12000 RPM)

Upper trimming motor 0.37 kW (12000 RPM)

Lower trimming motor 0.37 kW (12000 RPM)

Upper buffing motor 0.12 kW (3000 RPM)

Lower buffing motor 0.12 kW (3000 RPM)

Pre-heating 0.4 kW

Glue pot 1.315 kW

Machine weight 1452 lbs 660 kgs



SHIPPING INFO

Shipping weight 1558 lbs 708 kgs

Shipping dimensions 114” x 30” x 54” 3450 x 660 x 1850mm
