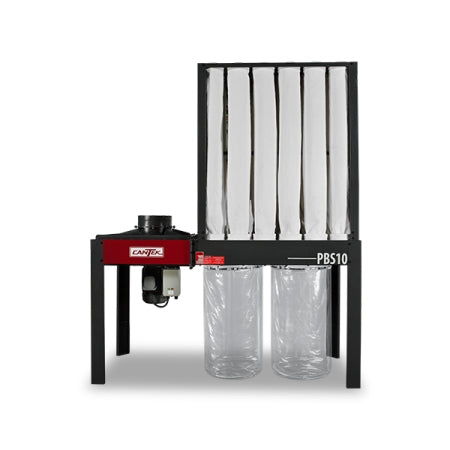

Cantek PBS10 10HP Dust Collector
Click or scroll to zoom
Tap or pinch to zoom
Cantek PBS10 10HP Dust Collector
Click or scroll to zoom
Tap or pinch to zoom
Cantek PBS10 10HP Dust Collector
Click or scroll to zoom
Tap or pinch to zoom
Cantek PBS10 10HP Dust Collector
Cantek PBS10 10HP Dust Collector

Cantek PBS10 10HP Dust Collector

by Cantek
$10,500.00
Payment Calculator
Financing Request
SKU WSI-CantekPBS10

Powerful Dust Collection Designed for Maximum Efficiency.

The PBS10 is a high-efficiency indoor dust collectors generating up to 5000 CFM with a 10 HP motor.  Equipped with a low RPM (1750 RPM) blower is designed to run much quieter than other high RPM units. The 3-micron filter bags ensure optimum air filtration and can be manually shaken to for cleaning. The machine comes standard with plastic collection bags for convenient disposal of your wood dust.  It can be optionally upgraded to use barrel bin collection or a self dumping bin collection unit.

  • High Airflow | 5000 CFM for demanding dust collection needs.
  • Quiet Operation | 1750 RPM blower significantly reduces operating noise.
  • Flexible Collection | Plastic bags, cloth bags, drums or dump bins.
  • Built to Last | Heavy welded steel construction.
  • Easy Bag Cleaning | Manual shaker system extends filter life & improves suction.
  • Compact Footprint | Maximum airflow with minimal floor space.
  • High Airflow | 5000 CFM for demanding dust collection needs.
  • Quiet Operation | 1750 RPM blower significantly reduces operating noise.
  • Flexible Collection | Plastic bags, cloth bags, drums or dump bins.
  • Built to Last | Heavy welded steel construction.
  • Easy Bag Cleaning | Manual shaker system extends filter life & improves suction.
  • Compact Footprint | Maximum airflow with minimal floor space.
  • Convenient quick release connection for removing the coarse dust bin which is outfitted with casters
  • Bin is lined with plastic bag for simple and clean removal of dust
  • HEPA filter is equipped with an automatic
  • HEPA Filter is equipped with a quick release system to remove and dispose of fine dust particles
  • Equipped with magnetic switch
  • Fast and simple machine assembly

Standard Equipment

  • Magnetic starter
  • Plastic collection bags
  • Manual shaker
  • 24 high-efficiency filter bags
  • Heavy-duty blower
  • Heavy steel frame
  • 6 port dust manifold



Collection Options:

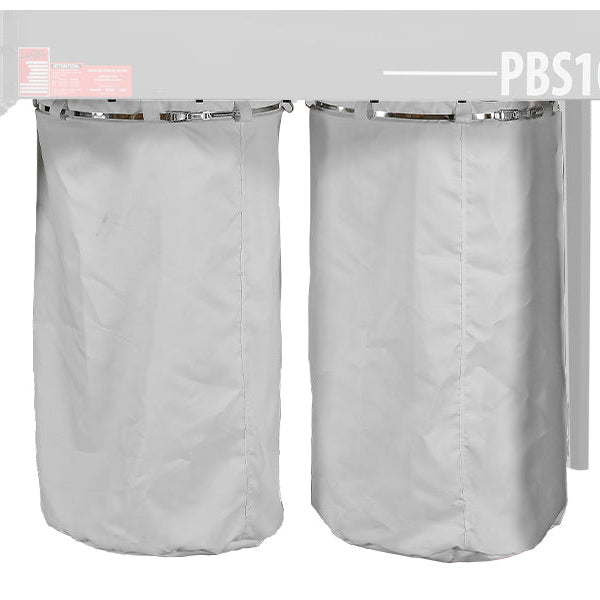

  • Standard:  Plastic bag collection
  • Option 1: Cloth bag collection

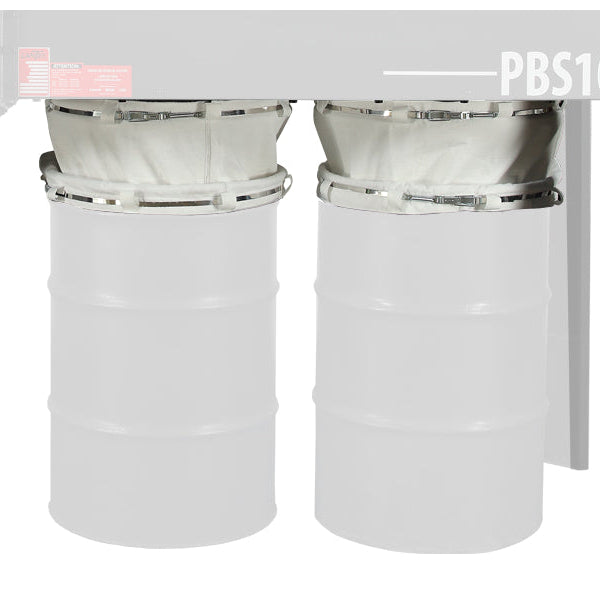

  • Option 2: Barrel drum collection

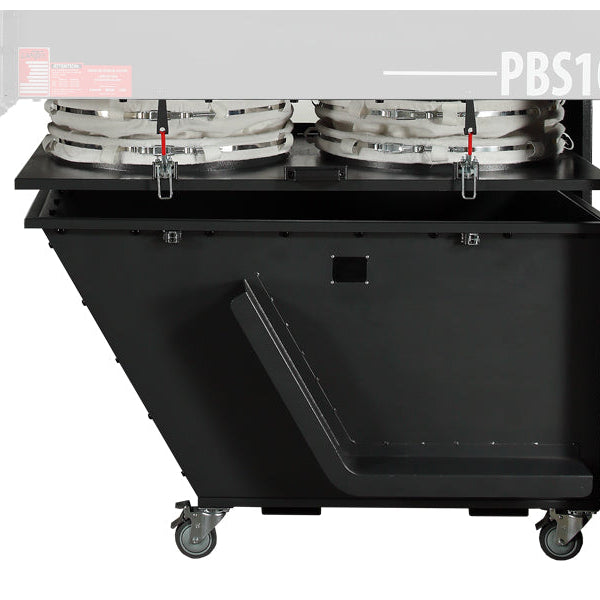

  • Option 3: Larger self dumping bin collection.
Blower motor
10 HP
CFM Capacity
5000 CFM @ 11” WC
Motor RPM
1750 RPM
Filter information
3 Micron Filter Bags:  8” dia. x 63” long x 24 pcs
Total Filtration surface (sq.ft)
263 sq. ft
Inlet diameter
14”
Disposal capacity
148 gallons
Machine dimensions (LxWxH)
97” x 42” x 117.5”
813 lbs
Electrical information
230/3/60 @ 28 amps
460/3/60 @ 14 amps
