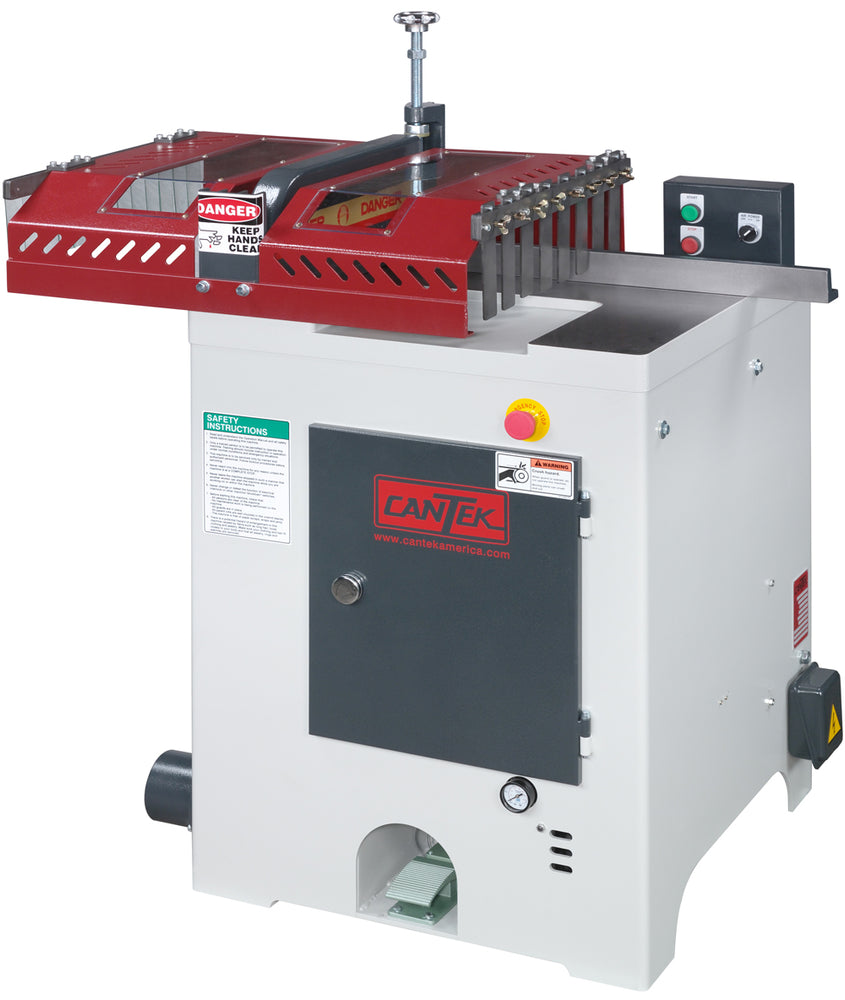

CANTEK PCS18 Pneumatic Cut-Off Saw 230V, 3PH. 460V is available at additional cost.
CANTEK PCS18 Pneumatic Cut-Off Saw 230V, 3PH. 460V is available at additional cost.

CANTEK PCS18 Pneumatic Cut-Off Saw 230V, 3PH. 460V is available at additional cost.

by Cantek
$6,600.00
SKU WSI-CantekPCS18
  • Cantek is available in right- and left-hand and configurations
  • Cutting off capacity (thickness x width): 2″ x 12″, 3″ x 11″, 4″ x 10″
  • Powerful 10 HP main motor
  • Pneumatic foot pedal operation with adjustable cutting speed from the front of the machine
  • Fast cutting rate up to 45 strokes per minute.
  • Cast iron table surface is precision ground assuring high cutting accuracy
  • Safety blade guard with adjustable fingers for added safety
  • Material clamp is easily adjusted for workpiece thickness variation
  • CSA magnetic switch
  • Door safety limit switch with 3″ long screw
Cutting capacity (thickness x width) 2″ x 12″, 3″ x 11″, 4″ x 10″
Cycle speed 45 strokes/min
Cycle operation Air
Saw blade size (optional) 18″
Saw arbor diameter 1″
Saw blade speed 3600 RPM
Dust exhaust diameter Ø4″  (100mm)
Motor 10 HP
Table size 26” x 27 ½” (660 x 700 mm)
Net weight 770 lbs.  (350 kgs)
Gross weight 902 lbs.  (410 kgs)
Packing dimensions (L x W x H) 37” x 33 ½” x 53.2” (940 x 850 x 1350mm)
