Cantek | ST152C Single End Tenoner

by Cantek
SKU WSI-CantekST152C

Economical solution for cutting tenons for door and window frames.

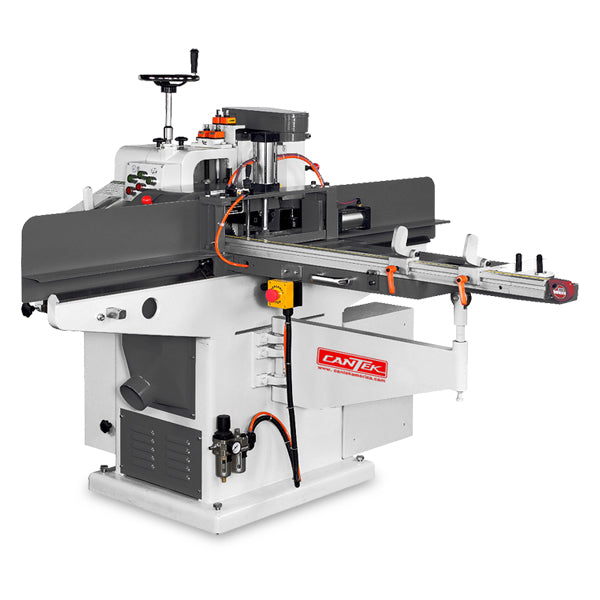

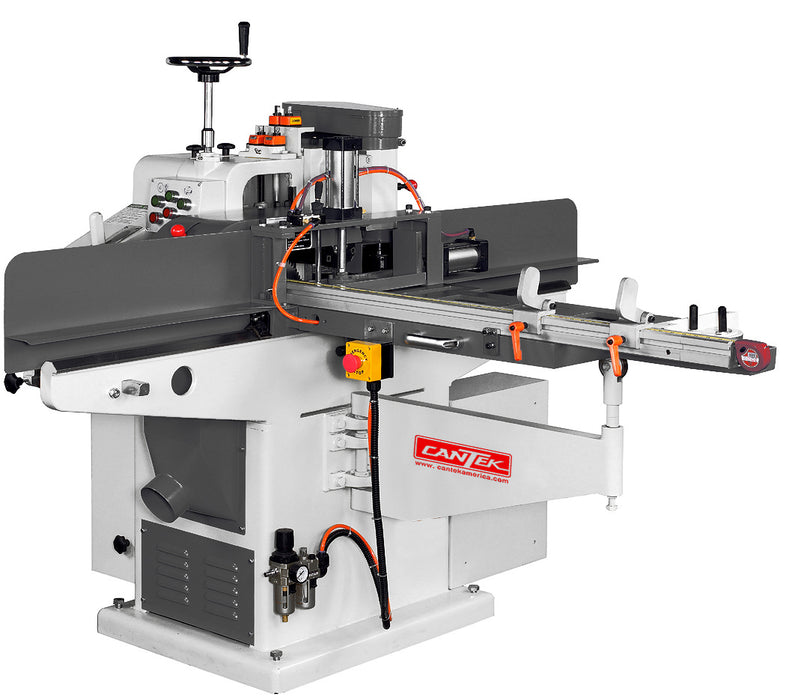

The Cantek ST152C Single End Tenoner offers superior tenoning results in a economical solution.  The 12” trim saw unit is mounted in front of the tenon heads and enables stock to be cut to the desired length.  The two horizontal spiral insert knife tenoning heads are capable of producing a tenon up to 6” long.  The heads are accurately adjusted using mechanical digital readouts.  The spiral insert heads produce an extremely smooth finish result.  The two opposed coping heads allow for long tenons to pass between to produce a profile to match your rail profile.   The coping heads are also adjusted using precision mechanical counters.

  • Industrial cast iron machine frame for vibration free operation
  • (5) working units to produce a wide range of tenons and profiles for door, window components, and furniture parts
  • Accurate adjustment using mechanical digital readouts
  • Spiral insert knife tenon cutterheads with scriber tips for superior tenoning results
  • Opposed coping heads allow for profiling even with long tenons
  • Vertical and horizontal pneumatic workpiece clamping ensures material is secure during tenoning operation
  • Infeed and outfeed safety guards
  • Sliding table rolls on precision machined ” V ” ways allowing for precise and smooth table movement
  • Mechanical stops for precision length cutting
  • Adjustable infeed fence determines stock removal length
  • Dust extraction ports on each working unit
  • Schneider electrical components to CSA standard

Trim Saw

  • 12” dia. driven from tenon heads
  • 1 ¼” shaft diameter x 6″ long
  • 2800 RPM
  • Saw position moved by changing spacers

Tenon Heads

  • Carbide insert spiral tenon heads with scribing inserts
  • 152mm (6”) long x 127mm (5”) diameter tenons heads
  • 5HP motor drives both tenon heads
  • 1 ¼” diameter spindle
  • 3400 RPM
  • 1″ lateral adjustment of tenon heads
  • 14 mm x 14mm x 1.5mm carbide insert knives

Coping Heads

  • Max. dia. tooling: 6 3/8”
  • (2) 5 HP motors
  • 1 ¼” diameter spindle
  • 6000 RPM
  • 2 ¾” spindle length
  • Independent adjustment each head
  • (2) 4 knife wedge type cutterheads with chip breakers included (60o corrugated knives)
  • Counterbore locknut allows both heads to move close together
Maximum tenon cut
152 mm
370 mm
127 mm
Maximum tenoning cutterhead size
4.3” dia. x 6” long
110mm dia. x 152mm long
Maximum shaping cutterhead size
Ø 6 3/8″
Maximum sawblade diameter
Ø 12 “
Spindle diameter
Tenon spindle
1 ¼”
Cope spindle
1 ¼”
Saw spindle
1 ¼”
Spindle speed
Tenon spindle
3400 RPM
Cope spindle
6000 RPM
Saw spindle
2800 RPM
Motor horsepower
Saw & tenon heads
7.5 HP
Cope heads
5 HP x 2
Sliding table area
50.4” x 17.7”
1280 x 450 mm
Net weight
1716 lbs
780 kgs
Gross weight
1914 lbs
870 kgs
Machine dimensions (LxWxH)
66” x 73” x 46”
1680 x 1840 x 1150 mm
Packing dimensions (LxWxH)
67” x 31” x 56”
1700 x 780 x 1400 mm
