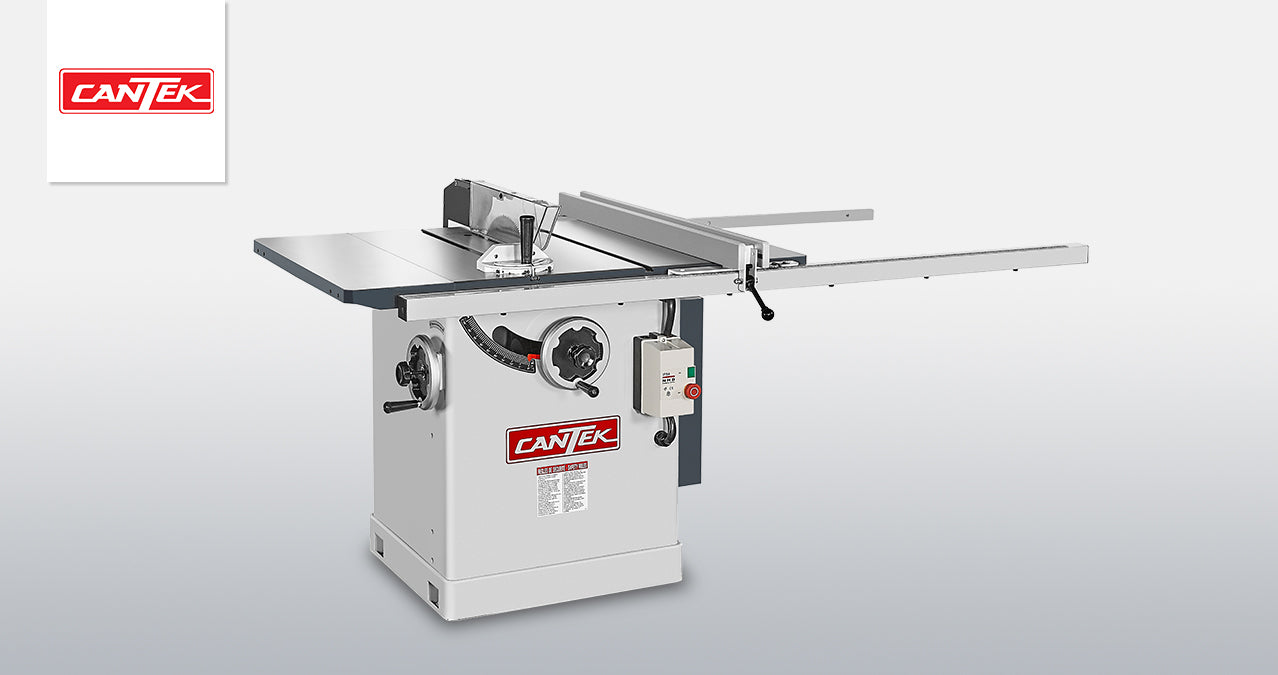

Cantek | TA10-5 10″ Table Saw

by Cantek
$2,900.00
SKU WSI-CantekTA10-5

Industrial 10” cabinet table saw with 5HP motor.

The Cantek TA10-5 10″ Table Saw is for serious woodworkers and production shops that require an industrial strength and powerful table saw.  The large precision-ground & polished cast-iron table and cast-iron saw unit ensure vibration free cutting with optimum cut quality.  The quick setting T-square rip fence is equipped with dual inch & metric scales for precise rip cutting. The blade guard is mounted to a splitter with anti-kickback pawls for safe operation.  Comes standard with both standard and dado arbors and table inserts.  Driven by a powerful 5HP motor it can make the cuts you need effortlessly.

  • Heavy-duty cast iron table is precision ground for accuracy & precision
  • Industrial strength cast iron saw carriage and trunnion for vibration free cutting
  • 50” capacity T-square rip fence assembly locks on front rail for a precise parallel reference to the saw blade
  • Right tilt blade to 45o

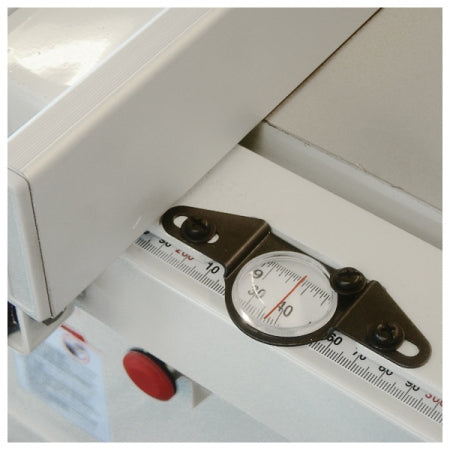

  • Dual Inch/Metric scale guide rail on rip fence with magnifying glass for easy visibility

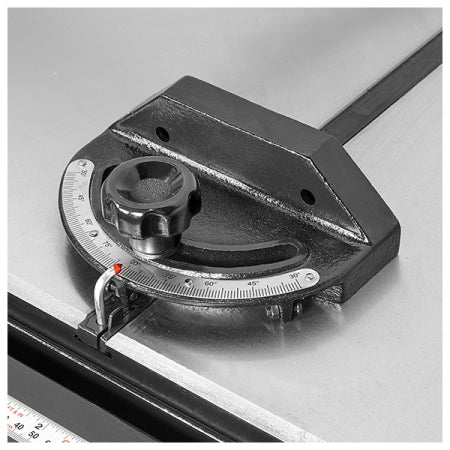

  • Miter gauge with two miter slots in the table
  • Comes with dado arbor & dado table insert
  • Rugged machine frame construction provides maximum stability and reduced vibration

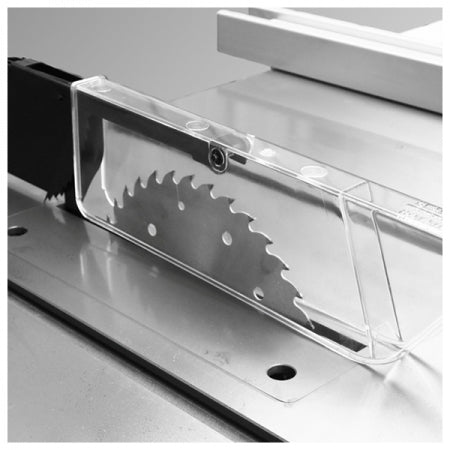

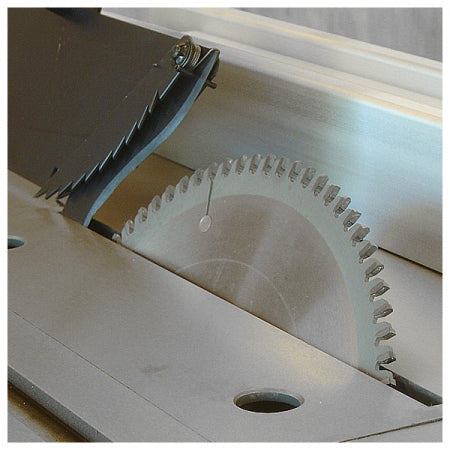

  • Saw guard with built in splitter and safety anti-kickback unit
  • 5/8” standard and dado arbor included along with appropriate cast iron table inserts

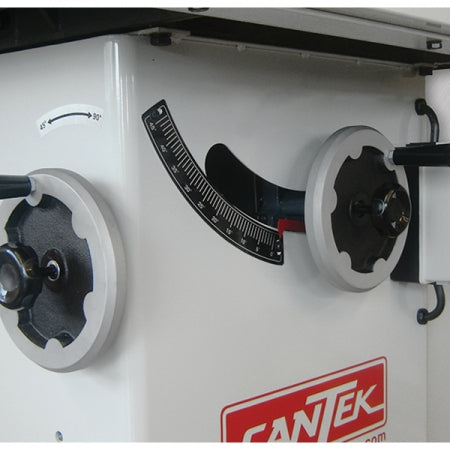

  • Handwheel adjustment for blade height and tilting adjustments which can be locked in place

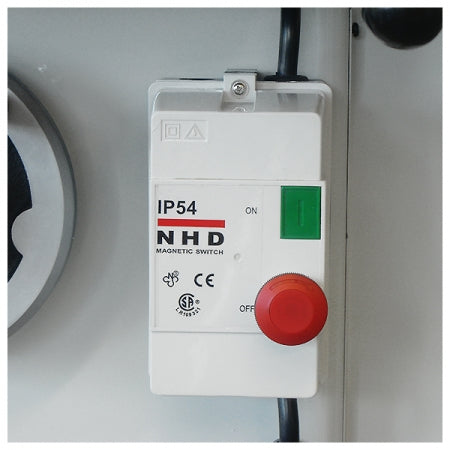

  • CSA / UL approved magnetic switch
Saw Blade Diameter
10″
Max. depth of cut at 90°
3″
Max. depth of cut at 45°
2″
Arbor diameter
5/8″
Dado arbor diameter
5/8”
Arbor speed
4200 RPM
Table size
36″x27″
Table height
34 1/4″
Max. rip to right of blade
50″
Motor
5HP
Electrical
230/3/60 = 15.2 Full Load Amps
Net weight
407 lbs
Gross weight
497 lbs
Packing size (LxWxH)
29″x36″x42″
