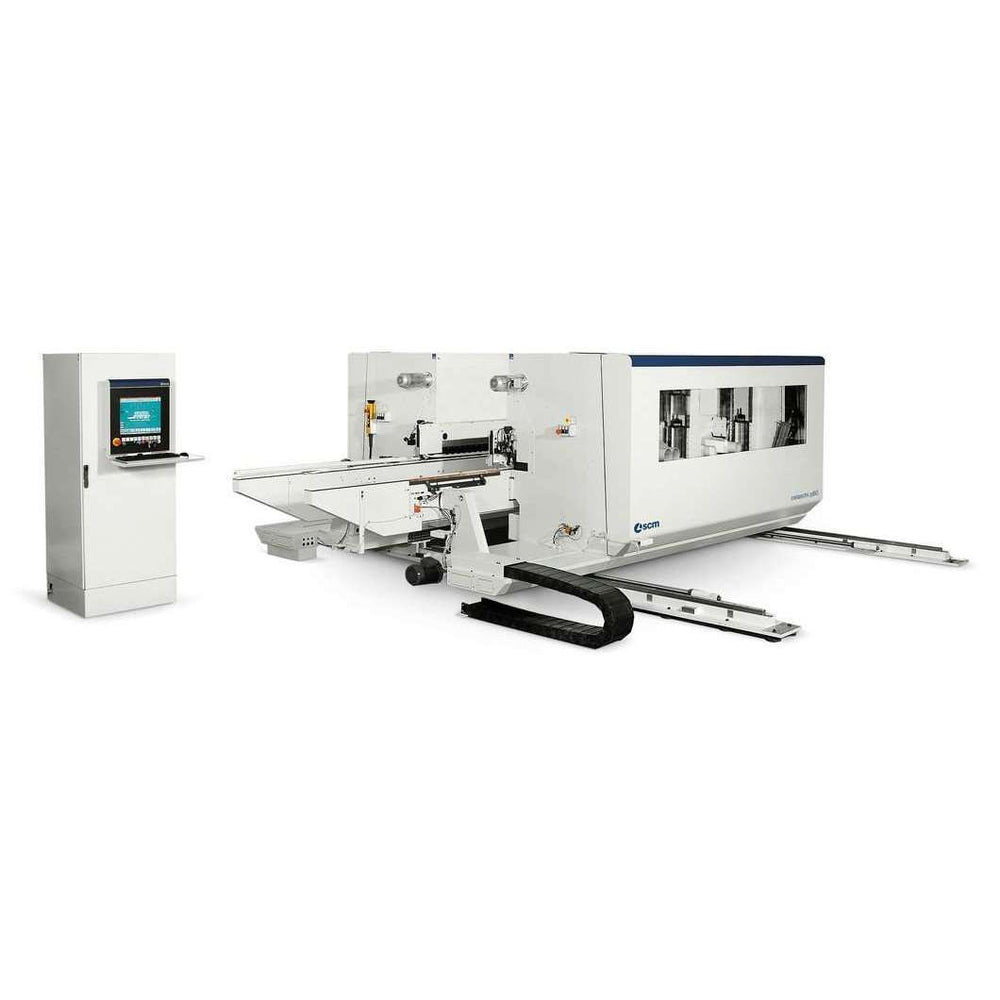

Celaschi P60

by SCM
$0.00
SKU

Thanks to the consolidated experience and continuous development, Celaschi P60 is double-end tenoner customizable according to specific needs.

Its reliable mechanics, motors power and electronic management of the different devices make celaschi p60 the top-of-the-range model for the most complex requirements and the most demanding applications such as production on multiple daily shifts.

Its features with high technological content make it perfectly integrated into high productivity lines.

Advantages

HIGH PRODUCTION YIELD both in stand-alone version or integrated into high productivity lines, thanks to the workpiece transport system allowing a feed speed up to 60 m/min.

GREAT VARIETY OF POSSIBLE OPERATIONS: Tenoning, squaring, moulding, through/blind grooves, sizing, sanding, drilling, chamfering etc.

QUICK PROGRAMMING WITHIN EVERYONE’S REACH thanks to the eye-M PRO touch screen control panel and the Maestro Square machine software.

Technical Data

MACHINE FRAME 5-6-8-10-12 operating units per side
WORKPIECE TRANSPORT SYSTEM

Maximum speed
Chain tracks centre distance
Dogs pitch

m/min
mm
mm

60
4050-9450
270-450-900

MOBILE BEAM

Maximum beam opening
Positioning speed

mm
m/min

6100
2,8-12

WORKPIECE DIMENSIONS

Width
Thickness

mm
mm

120-6100
3-200

BELT /PULLEYS SYSTEM WITH ELECTRONIC POSITIONING

Vertical stroke
Vertical adjustment
Positioning speed

mm
mm
m/min

20
3-150
0,25
