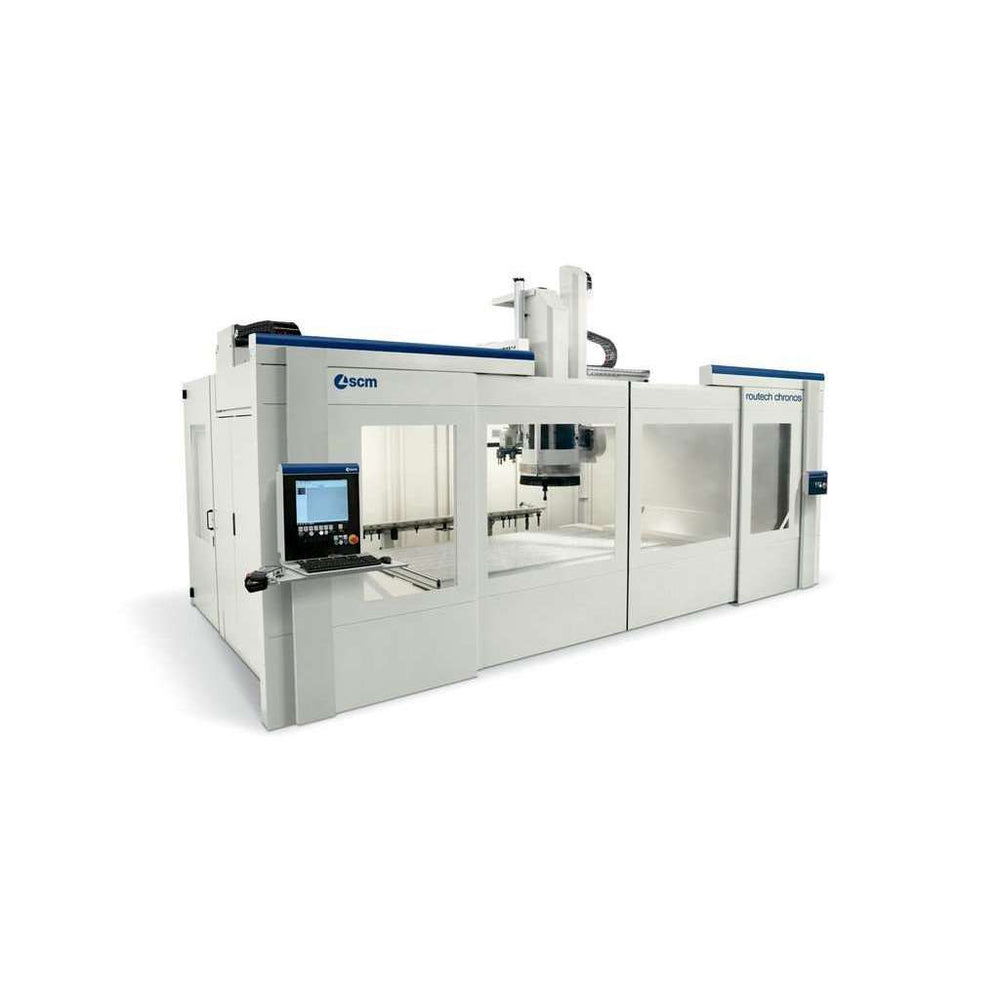

Routech Chronos

by SCM
$0.00
SKU

Compact universal machining centre with large work areas and high workpiece passage, designed for producing curved wood, boat furniture, food & beverage, foundry models and moulds for the automotive and aerospace sectors.

Advantages

  • Machining any shape with maximum accuracy across the whole machining volume with the gantry type structure and the specific machining heads with 5 interpolating axes.
  • Easy loading and unloading of workpieces thanks to the mobile longitudinal beam structure that guarantees maximum access to the worktable.
  • Highly visible and totally safe machining: Drastic reduction of dust and noise, the work area is completely enclosed.
  • Machine is always ready to perform any machining: It is fitted with a high number of immediately available tools.
  • Save Energy, high performance and energy saving.

Technical Data

X-axis work area mm 3050 - 4250
Y-axis work area mm 1560
Workpiece passage mm 800
Electrospindle power kW from 11 to 15
Tool changer stations from 12 to 42
