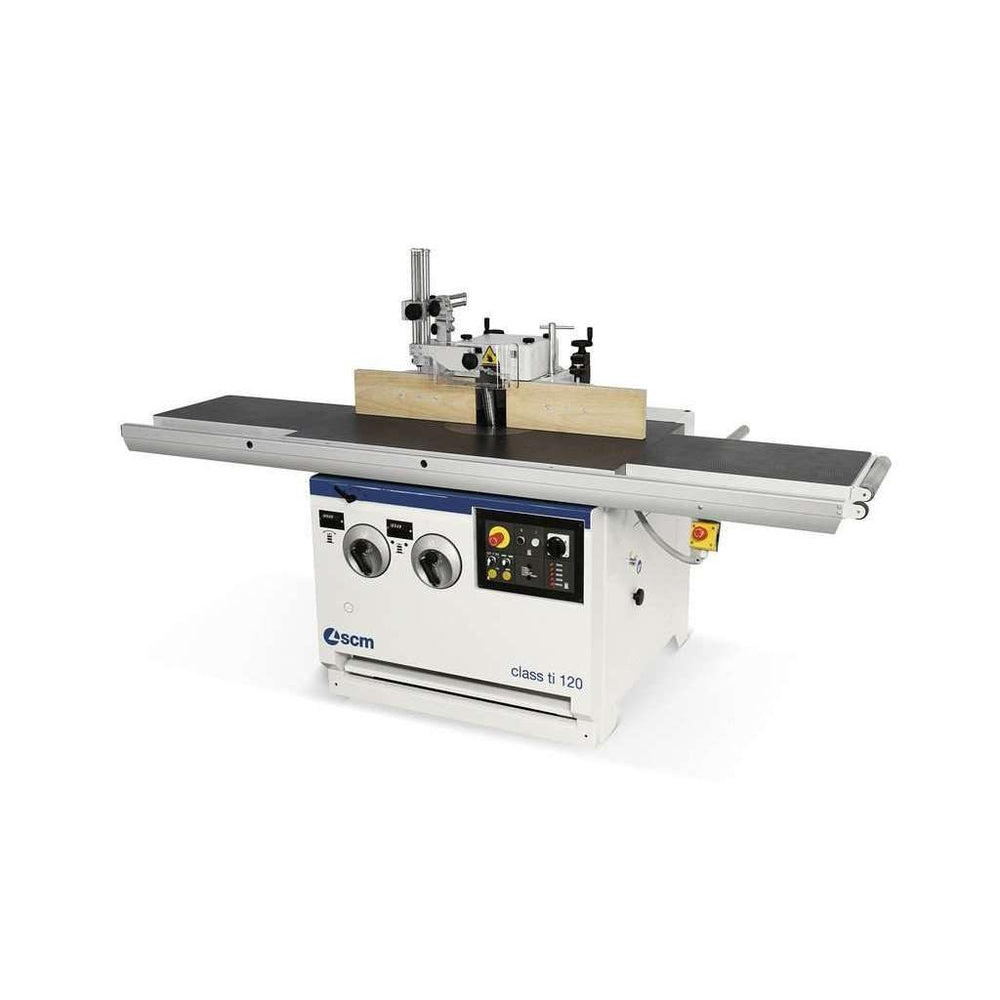

SCM Class TI 120 Tilting Shaper (INCLUDES FREIGHT)
The best solution for every application.
Precision and reliability with the the technological devices that guarantee reduced machine set up times, greater safety and ease-of-use.

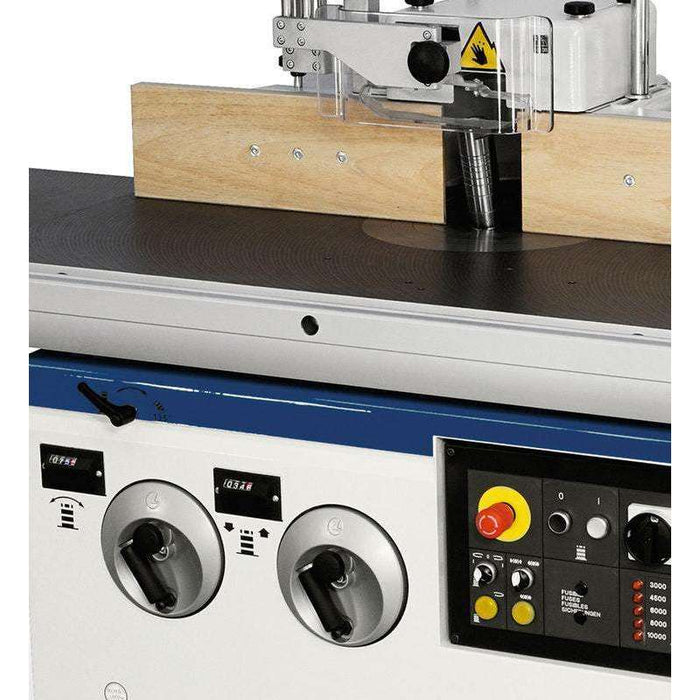

Set up precision and reliability. The operator easily adjusts all movements due to a hand wheel with mechanical decimal readouts located on the front of the machine.
Spindle moulder fence with mechanical programming: maximum set-up speed and ease-of-use. No more test runs due to digital readouts that ensure accuracy to a tenth of a millimetre in positioning the two worktables.

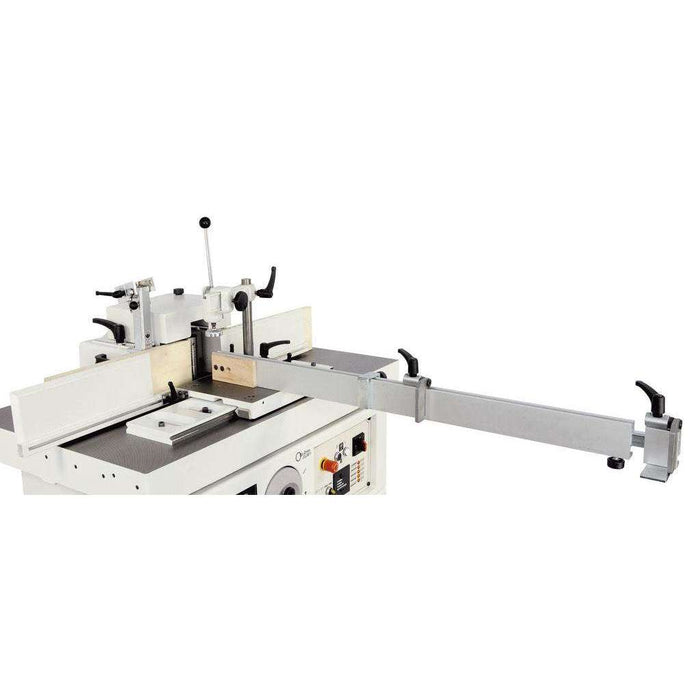

Easy access to the spindle to carry out different machining with the optional "Flex" system for the rapid exclusion of the fence from the working table.
|Class ti 120|
|Spindle height diam. 30-35 (40-50)||mm||140 (180)|
|Spindle speed (at 50 Hz)||rpm||3000/4500/6000/7000/10000|
|Max. diameter of the profiling tool||mm||250|
|Max. tool diameter retractable under the table at 90°||mm||300|
|Max. diameter of the tenoning tool||mm||300|
|Three-phase motor power starting from:||kW/Hz||5 (6) / 50 (60)|
