Lamello Classic X Biscuit Joiner with Systainer Case, 101600S

by Lamello
Sale
$800.00
$700.00
SKU CL101600S

50th Anniversary Classic X Systainer Promotion:

Effective now for a limited time and while supplies last, we are offering the Classic X machine with the Systainer case (Item #101600S) for $700. We will be offering this promotion until all of the units have been sold. In additional, a new Classic X Biscuit Joiner will be available in the Spring of 2024 with a higher wattage and slightly lighter and slimmer for purchase.

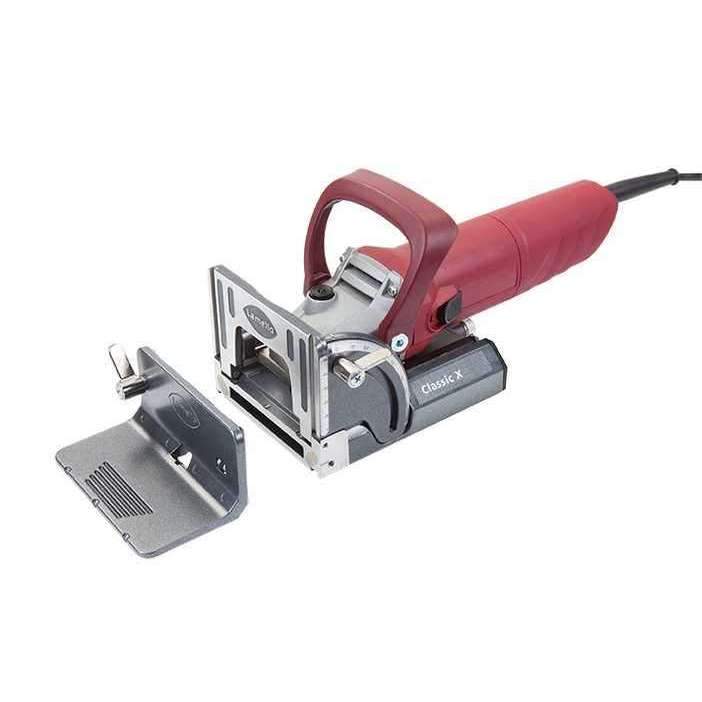

The Classic X is the original biscuit joiner from the inventor of the Lamello System for cutting a 4mm groove. The proven and well-designed Classic X is fast and versatile in its use and the basis for the wide range of connectors with fixed, self-clamping and detachable solutions. Precision in every component leads to perfect accuracy of the workpieces and saves time. The multifunctional stop square allows perfect mitres by applying on the exterior surface and stabilises the machine in vertical position.

Description

  • Classic X is the original biscuit joiner from the inventor and world-leader in wood biscuit joinery
  • The highly efficient, simple and accurate joining system for panels
  • Multifunctional stop square, swivelling front stop with fixed pivot point and high-precision application surfaces

Lamello Classic X Biscuit Joiner Includes

  • L81 Motor
  • Carbide-tipper Cutter
  • Suction stub
  • Stop Square
  • 4mm Spacer
  • Set of Tools
  • Systainer carrying case (#101600S only)
  • Manual

Classic X Biscuit Joiner Benefits

  • Base plate with improved visibility of the angle scale and the height setting
  • The base plate, swivelling front stop and stop square are now flush on both sides for efficient positioning on the work piece
  • Precision-machined guide and application surfaces for perfect fit of the work pieces
  • Slim but powerful 780 W motor
  • Multifunctional stop square for vertical stability as well as perfect miters due to the application on the outer surface for 22.5 and 45° angles

Lamello Joining System Benefits

  • A single power tool for 10 different connectors offering fixed and detachable connections
  • No tool change required for 9 different connectors
  • Lateral tolerance allows for faster working without positioning aids and stops
  • Avoid errors when adjusting the cutting depth since both work pieces have the same groove depth
  • Proven cutting principle with a disc cutter ensures that the grooves are always parallel and precise, even in the case of knots or rapid working

Applications

  • The highly efficient, simple and accurate joining system for panels
  • Thin work pieces measuring 8 or 10 mm may be joined at any angle
  • Fixed connections of wood and panels as well as composite materials such as solid surfaces using biscuits of various sizes, the clamping element or the plastic element for solid surfaces
  • Detachable connections using the Clamex S connector
  • Self-clamping connections with the E20-L and E20-H elements
  • Further use to cut grooves and expansion gaps as well as to mill out resin pockets

Versatile

A cutting principle for many different joining elements.

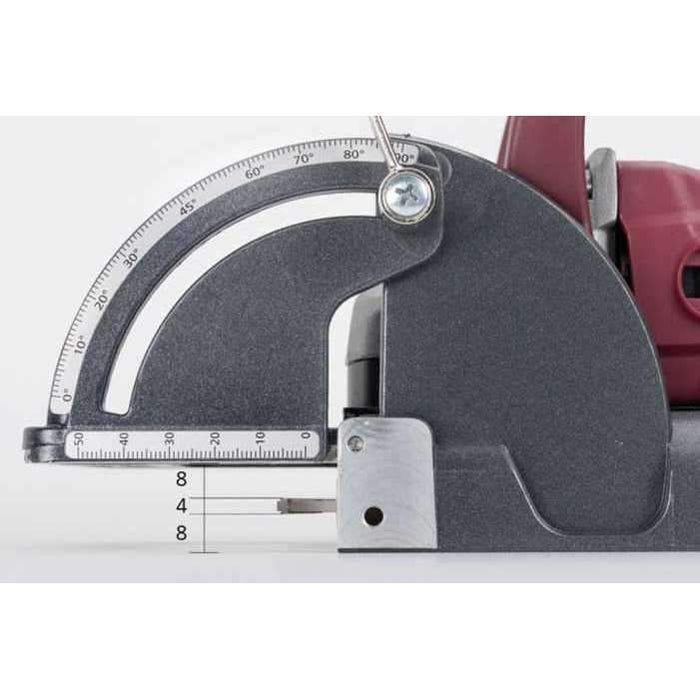

Swivelling Front Stop with Fixed Pivot Point

Join reliably with the cutter which is in the exact center between to two application surfaces.

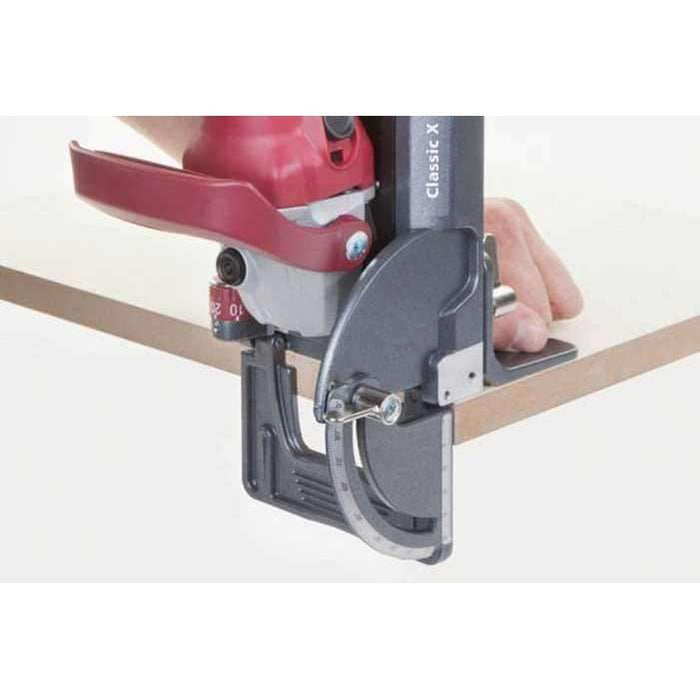

Multifunctional Stop Square

In addition to vertical stability resulting from the larger contact area, the stop square enables variable adjustment of the groove position, 0 - 50mm.

Technical Data

Power: 780 W
Voltage: 120 V
Speed: 10,000 minˉ¹
Cutter: Carbide-tipped cutter 100 x 4 x 22 mm
Teeth: 6 alternate teeth
Max. cutting depth: 20 mm
Weight: 6.8 lbs.
