Compact Lift Table

$0.00
SKU

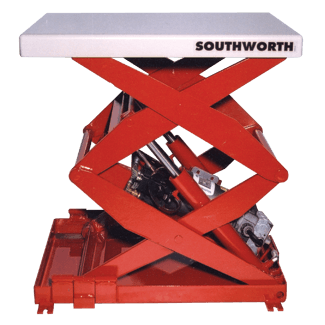

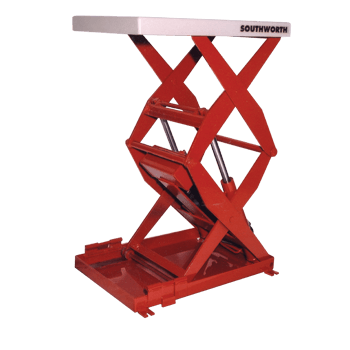

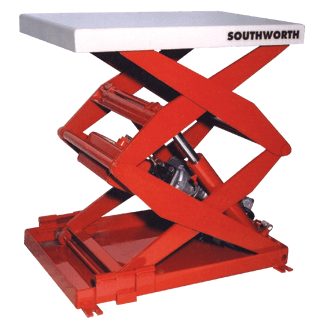

These industrial grade hydraulic lift tables are specifically designed for those applications involving lighter loads of up to 1,000 lbs. Backsaver Lite Compact Lift Tables feature a double scissor mechanism to provide a full 36” of lifting height in a very small 12” x 24” footprint. Oversize platforms to 24" x 36" are available. Available in four standard configurations:

  • Stationary
  • Compact with high lift and small footprint
  • Portable with easy rolling casters
  • Powered Portable with battery powered drive

Features

  • Low Capacity Lift Tables 500 or 1000 Lb.
  • 36" Lifting Height
  • Standard Platform: 12" x 24"
  • 16" x 24" and 24" x 36" Platforms Available
  • Operates on Standard 115/1/60 Power
  • Compact Size, Small Footprint

Technical Data

Model
Number
Load
Capacity
Raised
Height
Lowered
Height
Standard Base & Platform Maximum
Platform
Motor
HP
Voltage/
Phase/HZ
Shipping
Weight
Budget
Range
LS05-30 500 lbs 36" 6" 12" x 24" 12" x 24" .5 115/1/60 190 lbs $2,800-$3,100
LS05-30W 500 lbs 36" 6" 16" x 24" 24" x 36" .5 115/1/60 220 lbs $2,700-$3,000
LS1-30 1000 lbs 36" 6" 16" x 24" 24" x 36" .5 115/1/60 238 lbs $2,800-$3,100
