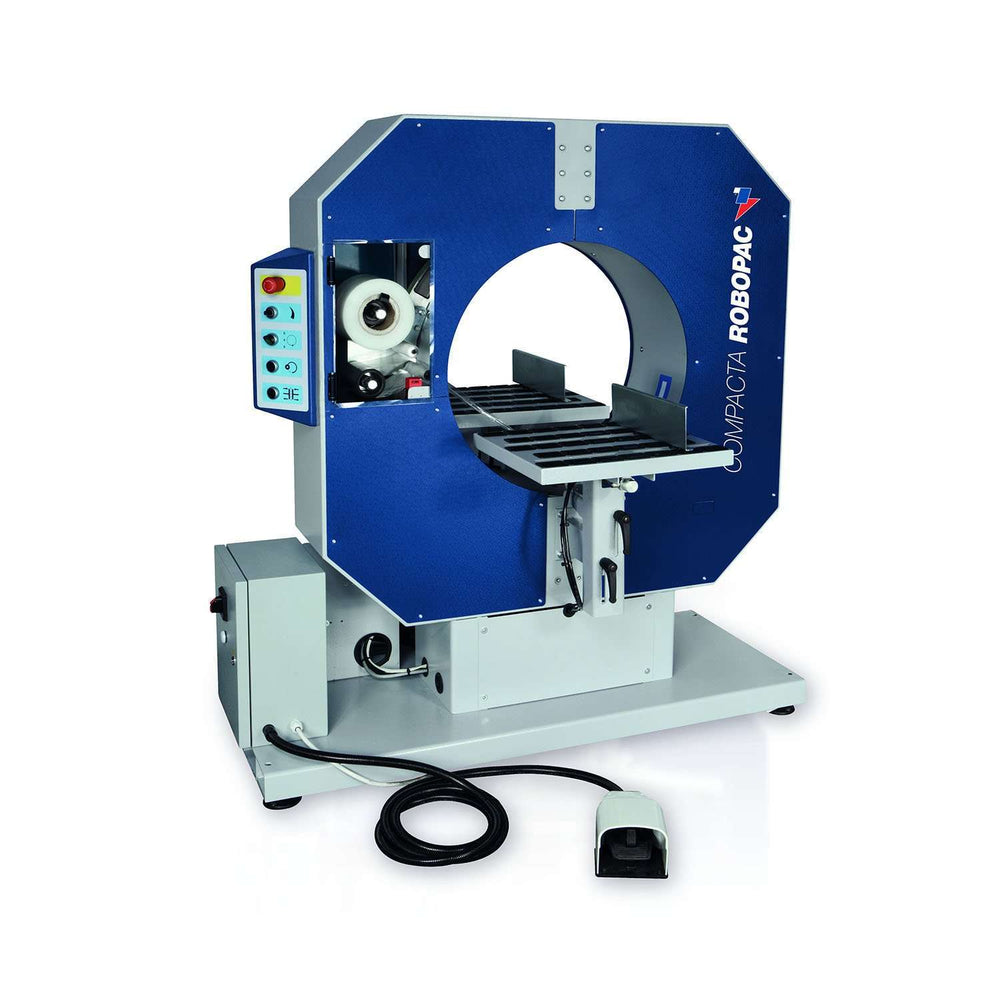

The Compacta semi-automatic bundling machines are designed for low- to mid-volume production.
They are designed for bundling long, narrow products like wood molding, aluminum and plastic extrusion as well as tubing, textiles and carpet.
Safe, simple operation includes automatic film clamping and cutting. Compactas feature constant film tensioning to improve package integrity and reduce film breaks.
|
Performance |
|
|
Belt Driven Rotation |
X |
|
Max Rotation Speed (RPM) |
120 |
|
Wrapping Cycle |
Continuous or Banding |
|
Manual Top Pressure Unit Infeed and Outfeed |
Optional |
|
Pneumatic Cold Cutting and Clamping Unit |
Standard |
|
Friction Roll |
Standard |
|
Constant Film Tensioning |
Standard |
|
Power Supply Voltage |
230 V 1 phase |
|
Installed Power |
1 HP |
|
Working Pressure: 87 PSI |
X |
|
Film Width (in.) |
5 |
|
Maximum Ext. Dia. (in.) |
8 |
|
Core Diameter (in.) |
3 |
|
Machine Length (in.) |
40 |
|
Machine Width (in.) |
57 |
|
Machine Height (in.) |
6 |
|
Conveyor Width (in.) |
17.7 |
|
Adjustable Conveyor Height (in.) |
31.5-35.5 |
|
CE Compliant |
Yes |
|
Warranty |
1 Year |
Auto Film Clamp
Highly reliable, dual rod cutting system fully automates the wrapping process.
Auto Film-Cutting Device
Automatically cuts film at end of wrap cycle, saving operator an estimated 30 seconds per load.
Pneumatic Top Platens
Infeed and outfeed units automatically adjust to ensure proper stabilization of the product. The length of the run can be adjusted manually, if needed, to compensate for products of varying height.
R-Connect® Ready
Able to install R-Connect® remote monitoring software immediately.
Available Options
| Extended Warranty |
| Manual or Automated Operation |
| Manual Top Pressure Unit Infeed & Outfeed |
| Automatic Top Pressure UnitInfeed and Outfeed |
| Automatic Cycle Start |
| Built for Rugged Operations |
| Conveyor Infeed & Outfeed |
| Doesn't Cause Product Damage |
| Field Proven Technology |
| Ideal for Processing Aluminum & Plastic Extrusions |
| Ideal for Processing PVC Pipe |
| Ideal for Processing Textiles & Carpets |
| Ideal for Processing Wood Moldings |

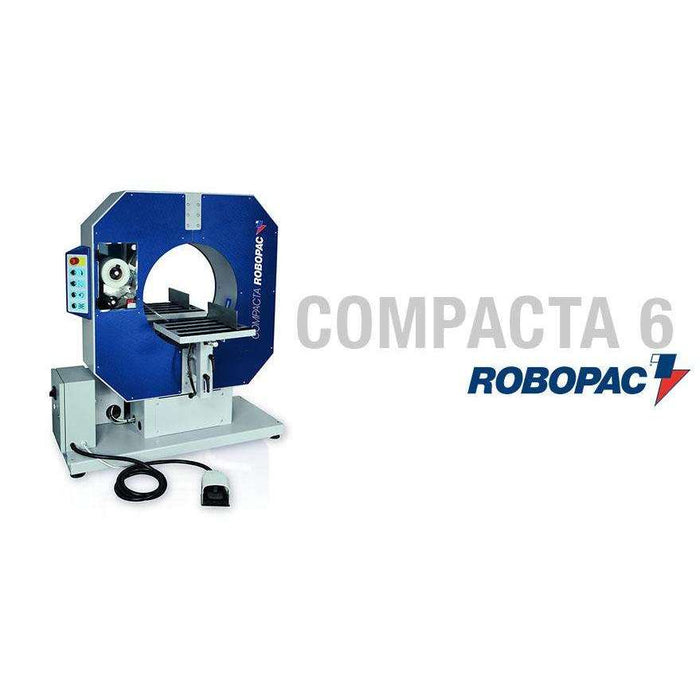

Compacta 6 from ROBOPAC USA on Vimeo.
