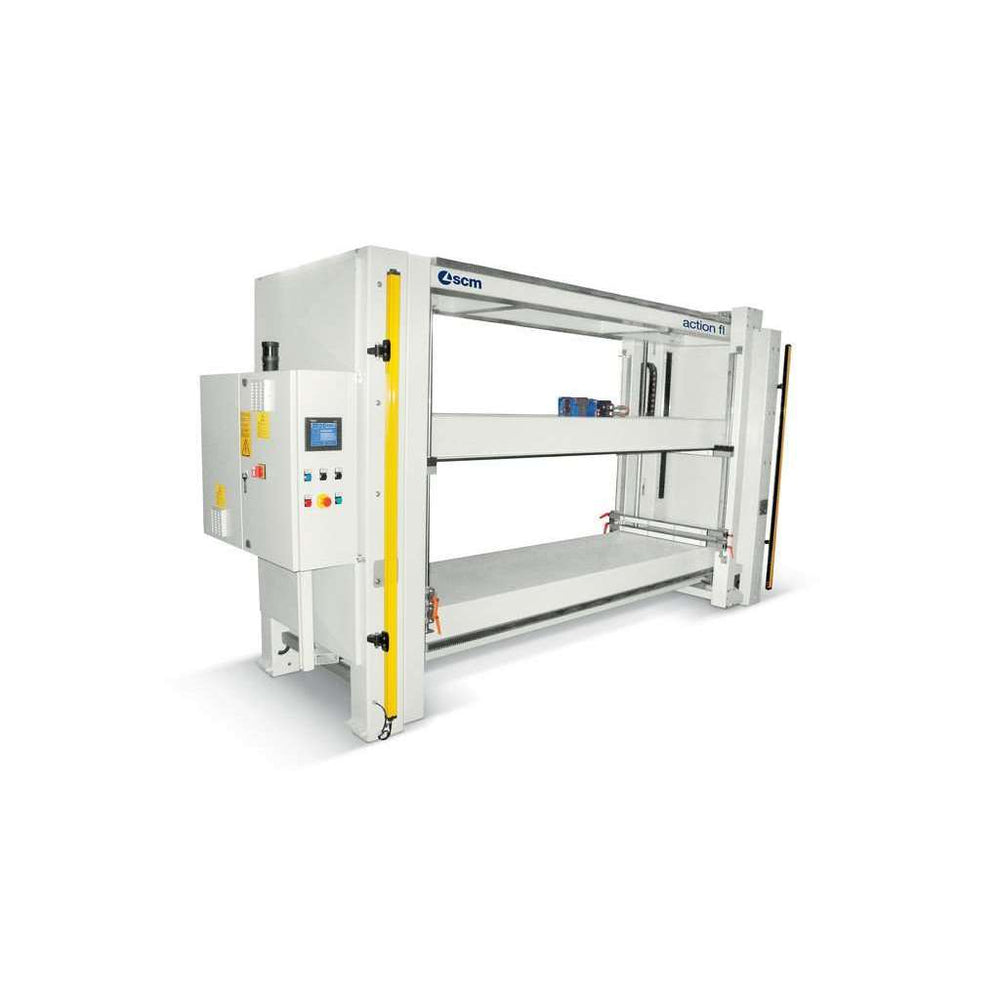

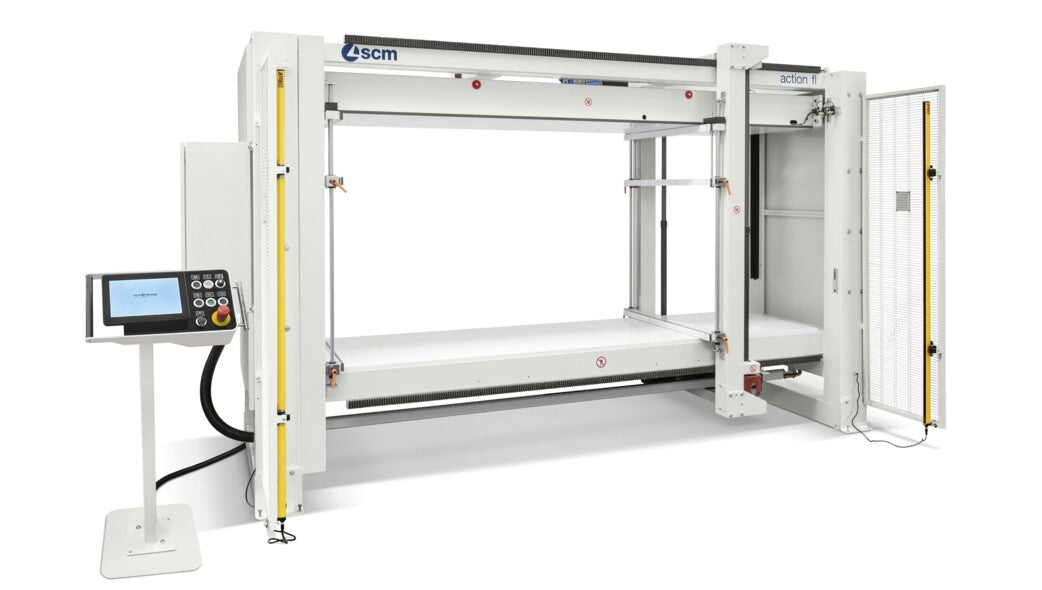

SCM CPC Action FL 2500 Case Clamp

by SCM
$47,190.00

The electro mechanical cabinet clamp Action FL with manual loading/unloading and a complete automatic cycle, is the solution for the assembly of cabinets. This machine is suitable for all cabinet manufacturers, with low productive volumes (up to 30 cabinets/shift).

Advantage

  • Efficient cabinet squaring by means of an integrated rack and pinion system.
  • Best performance due to installed brushless motors, which allow the cycle’s maximum speed execution.
  • Versatile use due to touch screen panel control.

Technical data

Installed power kW 4
Standard working dimensions (max) mm 2500x1250(H)x800
Standard working dimensions (min) mm 250x250(H)x150
Working height mm 600
