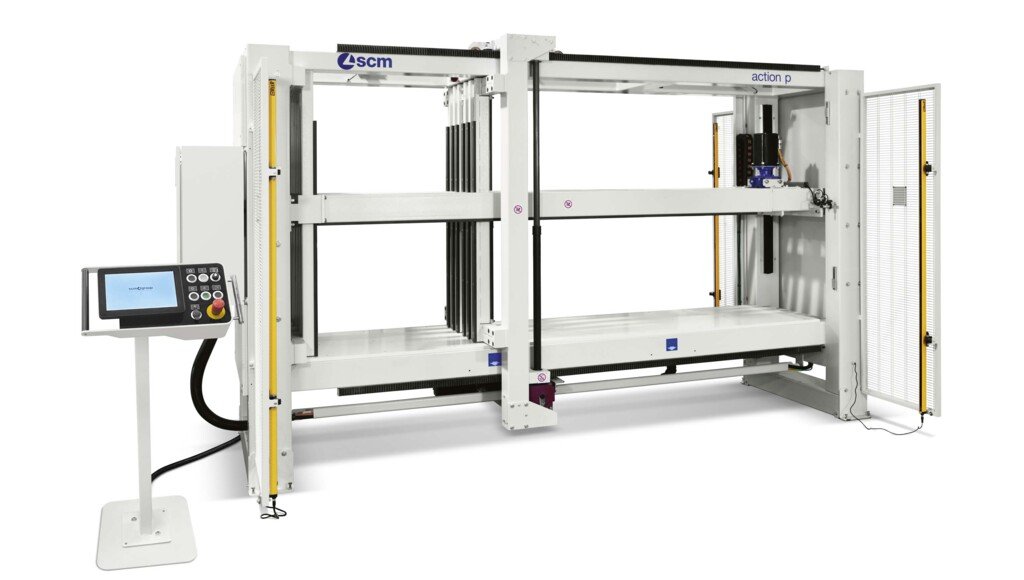

SCM CPC Action P 2500 Interleave Case Clamp

by SCM
$46,680.00

The electro mechanical cabinet clamp Action P is the solution for the assembly of cabinets.
The automatic set-up allows to a simple use of the clamp.
This automatic machine is suitable for all cabinet
manufacturers, with low productive volumes (up to 30 cabinets/shift).

Advantage

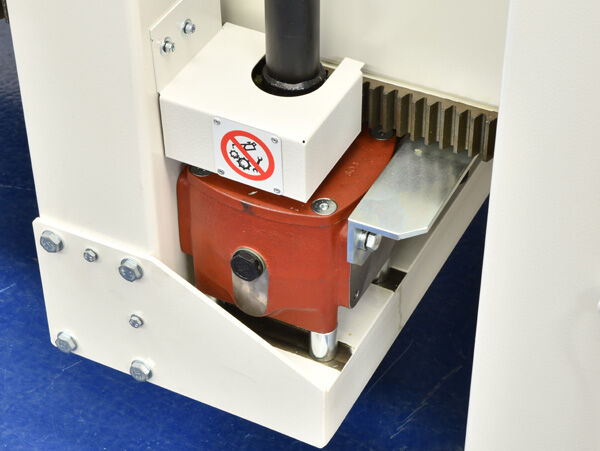

  • Efficient cabinet squaring by means of an integrated rack and pinion system
  • Best performance due to installed brushless motors, which allow the cycle’s maximum speed execution

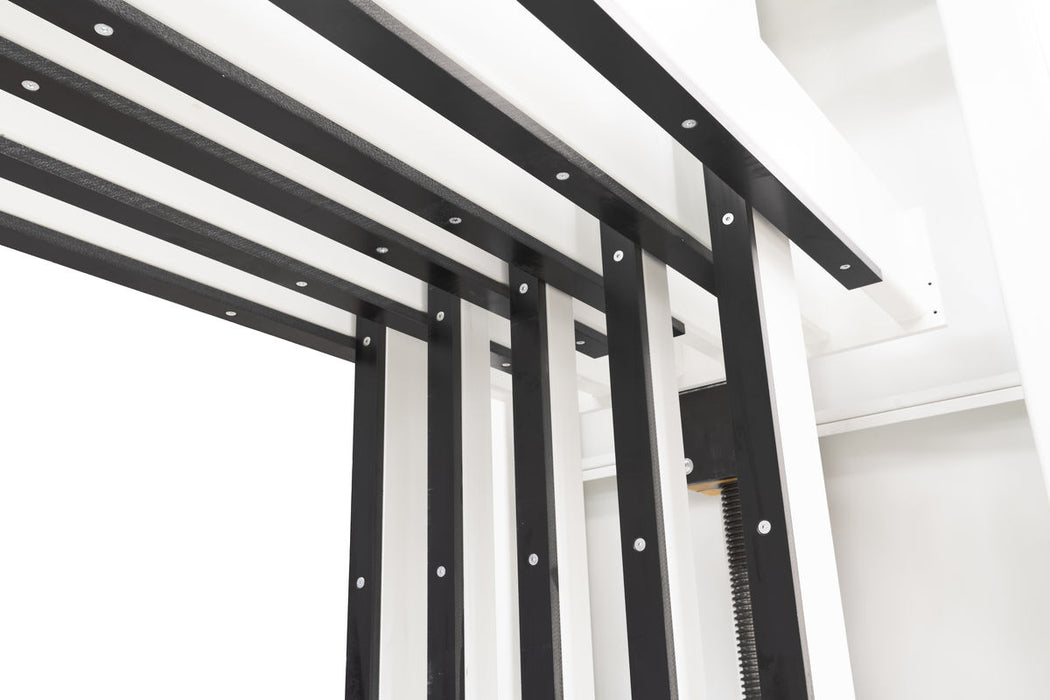

  • Horizontal and vertical pressure elements with single bars and “comb” system.

Technical data

Installed power kW 4
Standard working dimensions (max) mm 2500x1200(H)x700
Standard working dimensions (min) mm 250x250(H)x150
Working height mm 600
