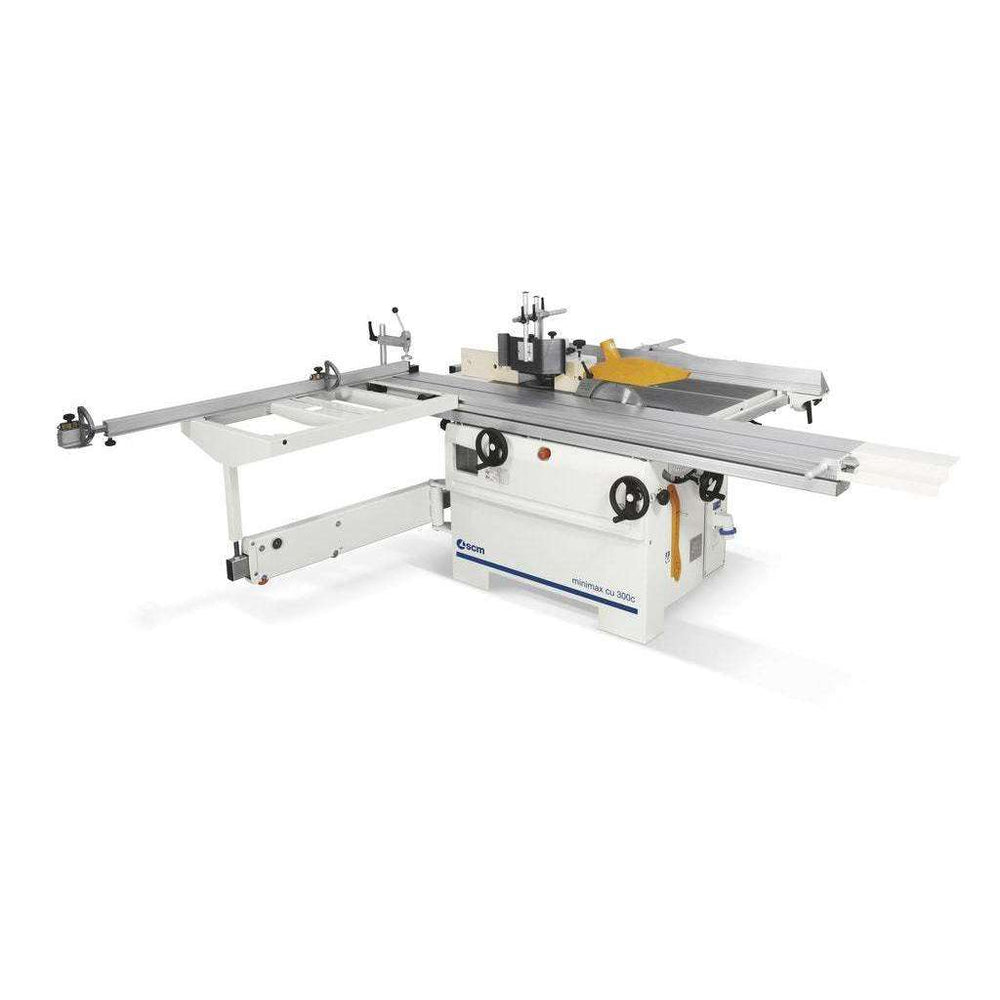

Minimax CU 300C

by Minimax
$14,295.00
SKU

Universal combined machine with all minimax quality, at the most affordable price, ideal for demanding hobbyists and crafts woodworking workshops.

The distinctive features of all our combined woodworking machines are:

EASE-OF-USE

The system of surfacing worktable opening toward the inside of the machine guarantees an excellent ergonomics.
All woodworking combined machines are equipped with anodized-extruded guides with support and rapid locking and an effective feeding system for the planer. These features make these machines easy-to-use for any type of machining.

FLEXIBILITY

Maximum flexibility when using the cutters, with the spindle moulder unit equipped with various speeds. The machines are equipped with spindle moulder hood with micrometric adjustment, very useful for moulding working.
The tenoning operations (option) are easy tank to the aluminum carriage and the dedicated speed

PRECISION

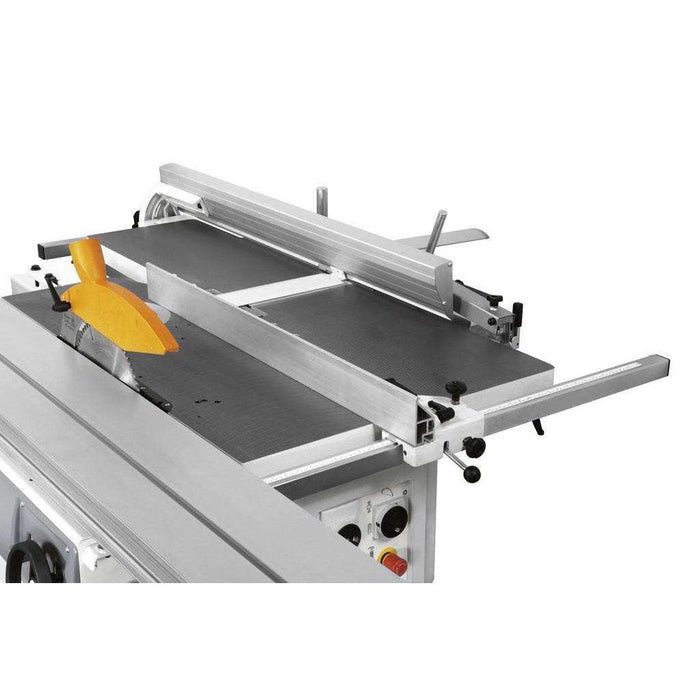

A tiltable saw unit, with sliding of the anodized aluminum carriage next to the blade for a better cutting precision are only some of the standard equipment of the minimax woodworking combined machines.
The lifting and tilting of the unit with practical hand wheels guarantee an easy setting among different machining.

SAFETY

Rich CE safety devices, like the shaft protection to carry out shaping operation and working on curved profiles. The machining on the planer is very easy thanks to the large dimensioned surfacing tables

Discover the "Xylent"cutterhead, available for this machine

Advantages

Performance without limits

Incredible cutting of both very thick solid wood and panels, even those veneered, thanks to the new saw unit with a blade that has a maximum diameter of 315 mm that grants a 100 mm cutting height with the scoring blade installed.

Professional and very sturdy

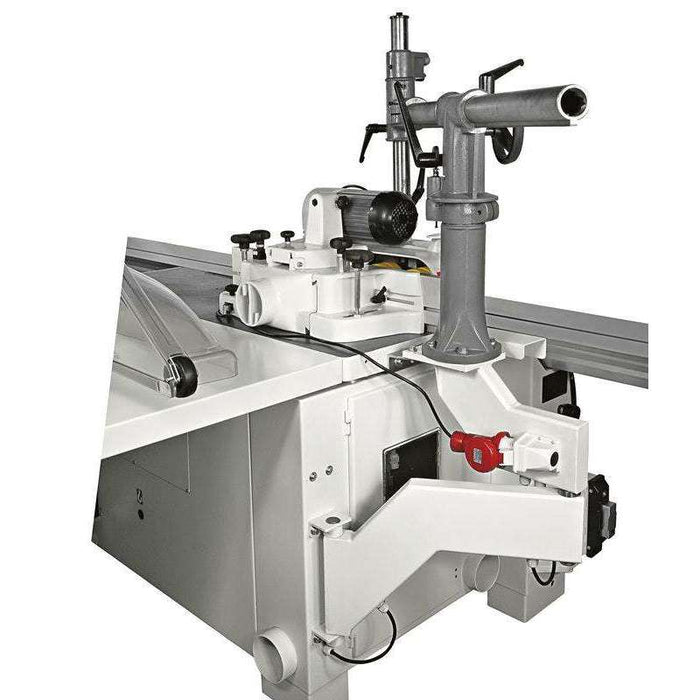

The unit has a cast iron structure. It is closed off by a cast iron “cup” to protect mechanical components inside the machine from sawdust, shavings and dirt. Precise and safe machining with the spindle moulder fence with micrometric adjustment complete with vertical and horizontal pressers.

Optimal planing

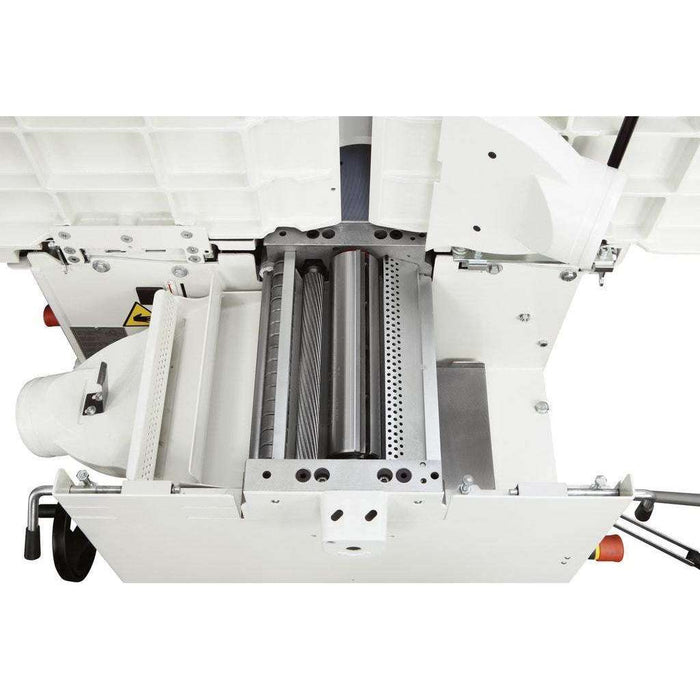

The planer unit in the standard version has a 72 mm diameter cutter block with 3 knives (the optional “Tersa” cutter block is available with quick tightening knives and automatic adjustment). For an impeccable result, the pressure of the thicknesser feed rollers can be adjusted according to the type of wood machined. The thicknesser infeed roller has helical toothing to guarantee strong, constant work piece feed. In contrast, the sandblasted steel outfeed roller maintains the perfect post-machining finish.

Exceptional accessibility

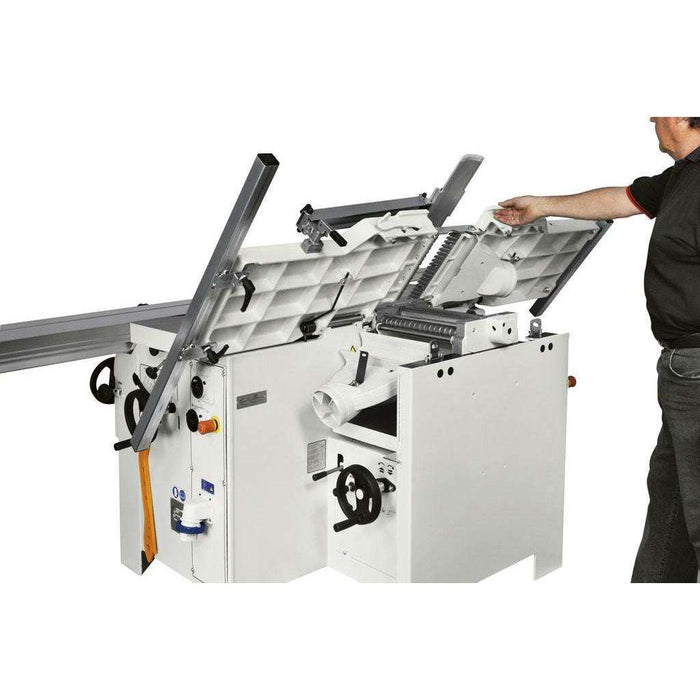

Thicknessing is more comfortable: during the changeover from surfacing to thicknessing the surfacing tables open towards the inside of the machine, with a 90° angle, and simultaneously. Work pieces with a maximum height of 230 mm can be machined to the thicknesser. The new design of the dust conveyor, protecting the cutter block, is specifically intended to further increase system safety and efficiency.

Technical Data

cu 300c
Cutterhead working width mm / inches 300 / 12
Jointer bed length mm / inches 1510 / 60
Max. sawblade diameter with scoring blade installed mm / inches 315 / 12
Sawblade arbor size mm / inches
Max. sawblade projection from table at 90°/45° mm / inches 100/78 3.75/3
Cutting width on parallel fence (Rip capacity) mm / inches 820 / 32
Max. useful spindle length mm / inches 100 / 4
Max. tool diameter when profiling mm / inches 210 / 8.25
Spindle moulder speed rpm 1700/4000/7000/9000
(3x) Single-phase motors Hp 4.8
Max. squaring stroke of sliding table saw mm / ft 1600/5.5 or 2600/8.5
With TERSA Straight-knife Cutterhead:
Cutterlock diameter / n° of standard Knives
Dimension of standard knives

mm/n°
mm

72/3
300 x 30 x 3
