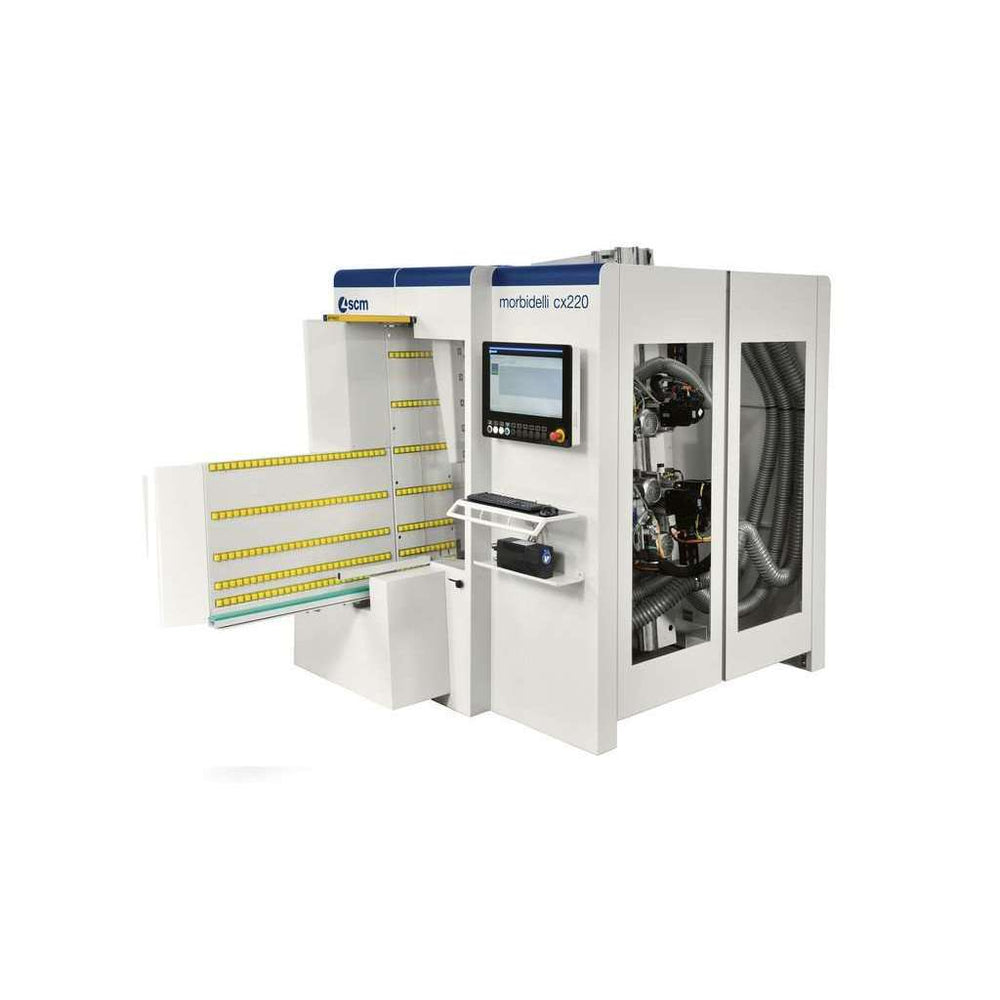

Morbidelli CX210 / CX220

by SCM
$0.00
SKU

The best solution for batch-1 processes.
Compact and smart CNC drilling centres, perfect to grant drilling on 5 sides of the panel, grooving and routing operations. No manual inverventions on the machine between two operations allowing uninterrupted machining cycle.
Also available with automated panel return conveyor for a continuous cycle production.

Advantages

THE PERFECT DRILLING:

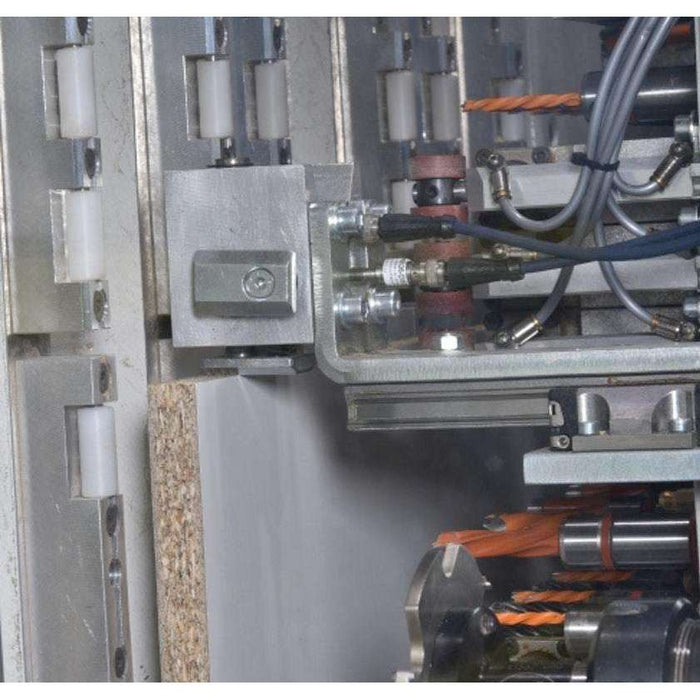

RO.AX SPINDLE

Zero play during machining with the new RO.AX technology (Rotoaxial spindle technology), the most efficient spindle on the market with rotation speeds up to 8000 rpm. The sturdiness of drilling heads is proven by the reduced maintenance costs: five times less than that imposed by the majority of other machine manufacturers.

+60% OF PRODUCTIVITY:
TWO DRILLING HEADS

morbidelli cx220 machining time is considerably reduced: two drilling heads with independent Y axis, automatically program-managed, can work on a panel at the same time.

PERFECT SURFACES:

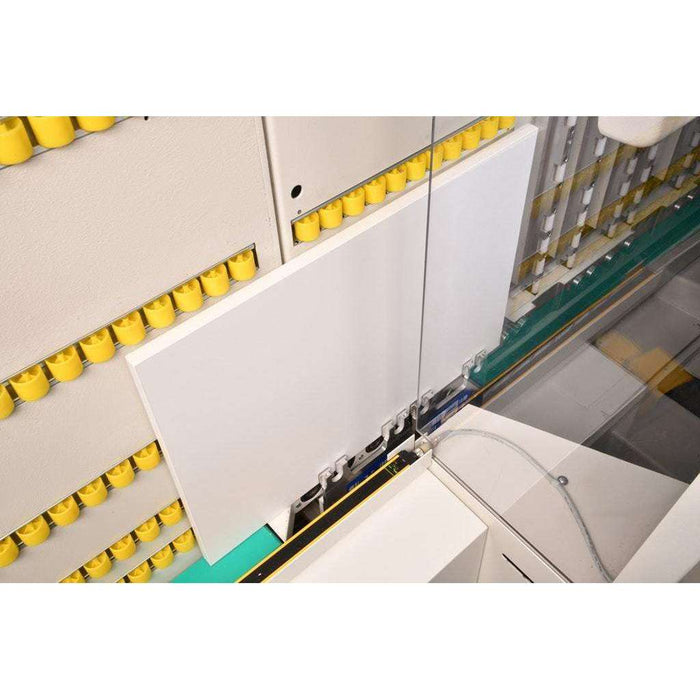

NEW WORK TABLE
​​​​​​No scratching thanks to the new properly designed work table,
the best solution for machining of lacquered and delicate panels.

Technical data

Axes
Panel length (max.) mm 3050
Panel width (max.) mm 1300
Panel thickness (max.) mm 95
Panel weight (max.) kg 70
X-Y-Z axes speed (max.) m/min 70 - 40 - 30
F31LTC drilling head
Vertical spindles no. 21
Horizonal spindles in X - Y directions no. 6 - 4
Spindles rotation speed rpm up to 8000 with optional inverter
Integrated blade in X axis Ø mm
rpm
125
up to 9700 with optional inverter
Motor power kW (Hp) 2,2 (3)
F21L drilling head
Vertical spindles no. 13
Horizonal spindles in X - Y directions no. 6 - 2
Spindles rotation speed rpm up to 8000
with opt. inverter
Integrated blade in X axis Ø mm
rpm
125
up to 8000
with opt. inverter
Motor power kW (Hp) 2,2 (3)
0-90° saw-blade/clamex unit
Diameter mm 125
Rotation speed rpm 5500
Electrospindle
Motor power (max.) kW 7,5
Rotation speed rpm up to 24000
Dowel insertion unit
Supply system water/vinyl glue
Available tools on tool changer no. 6
