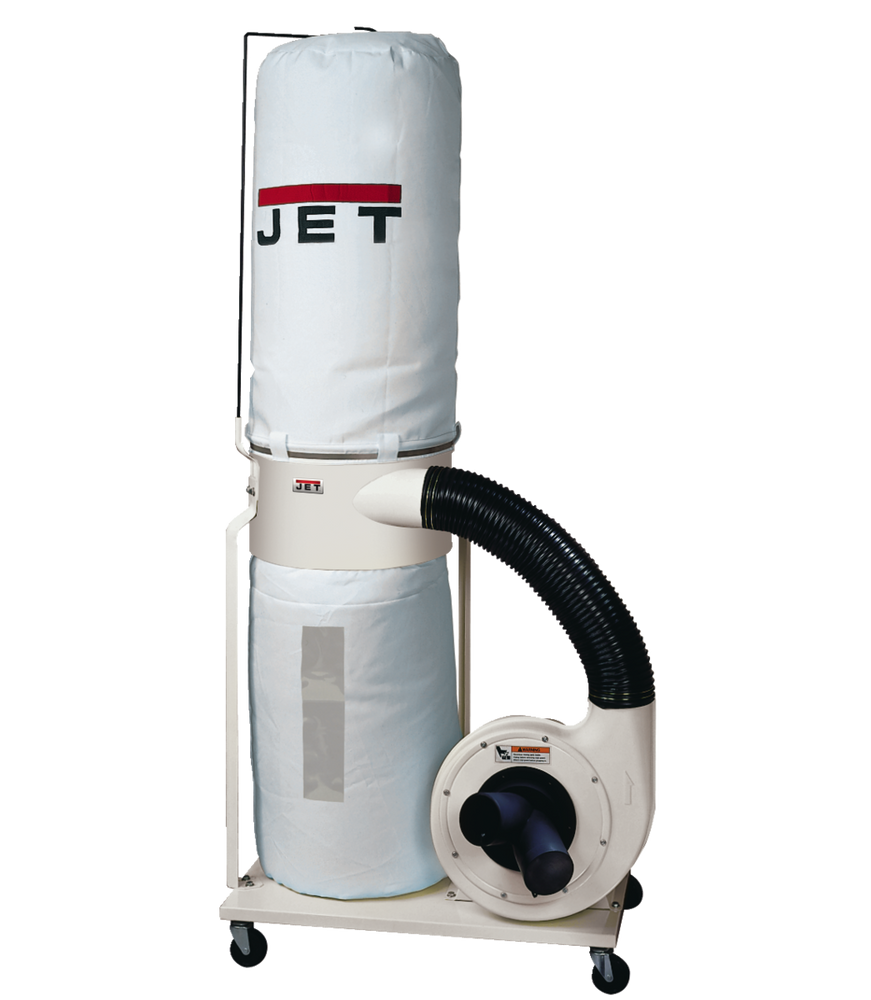

DC-1100VX-BK Dust Collector, 1.5HP 1PH 115/230V, 30-Micron Bag Filter Kit

by Jet
$699.99
SKU 708657K
  • Vortex Cone improves chip separation and collector bag packing efficiency
  • Eliminates premature filter clogging for sustained performance
  • Single-stage design for economical and quiet operation
  • Industrial controls designed for years of trouble-free use
  • Quick-connect collection bags with elastic band for fast, easy installation and removal
  • High air velocity (CFM) design stands up to any competitive specifications
  • Permanently lubricated, totally enclosed, fan-cooled motors are rated for continuous-duty
  • Includes four casters for maneuverability and total portabili
Height79.000
Length37.000
Gross Weight139.000
Net Weight127.000
Volume38.060
Width22.500
Ready For Web (US)Yes
Prop 65Cancer and Reproductive Harm
Style (Type)Bag
Prewired Voltage (V.)115
Motor Power (HP)1-1/2
1-Hose Connection Diameter (In.)6
Collection Bag Length (In.)30
Filter Efficiency (Micron)
Filter Bag/Canister Length (In.)32
Impeller Diameter (In.)11
Motor Voltage (V.)115/230
3-Hoses Connection Diameter (In.)
Recommended Circuit Size (Amps.)
Impeller Fins
Motor Phase (PH)1
Collection Bag Capacity (Cu. Ft.)5-3/10
Impeller MaterialSteel
Number of Air Inlets1 at 6, 2 at 4
Wiring Remarks
Sound Rating (Db.)70 - 80
Bag Diameter (In.)20
2-Hoses Connection Diameter (In.)4
Motor Amps11/5.5
Collection Drum Capacity (gal.)
Max. Static Pressure (Wc.)
Drum Collection Bag (Dia. x L/In.)
Canister Collection Bag (Dia. x L/In.)
Canister Filter Diameter (In.)
Canister Filter Length (In.)
Assembled Dimensions (L x W x H/In.)
Footprint (L x W/In.)
Motor Speed (RPM)
Efficiency (Micron)30
MERV Value
Air Flow (US Method) @ 4 (CFM)
Air Flow (US Method) @ 6 (CFM)
Air Flow (US Method) @ 8 (CFM)
Air Flow (EU Method) @ 4 (CFM)
Air Flow (EU Method) @ 6 (CFM)
Air Flow (EU Method) @ 8 (CFM)
Air Velocity (US Method) @ 4 (FPM)
Air Velocity (US Method) @ 6 (FPM)
Air Velocity (US Method) @ 8 (FPM)
Air Velocity (EU Method) @ 4 (FPM)
