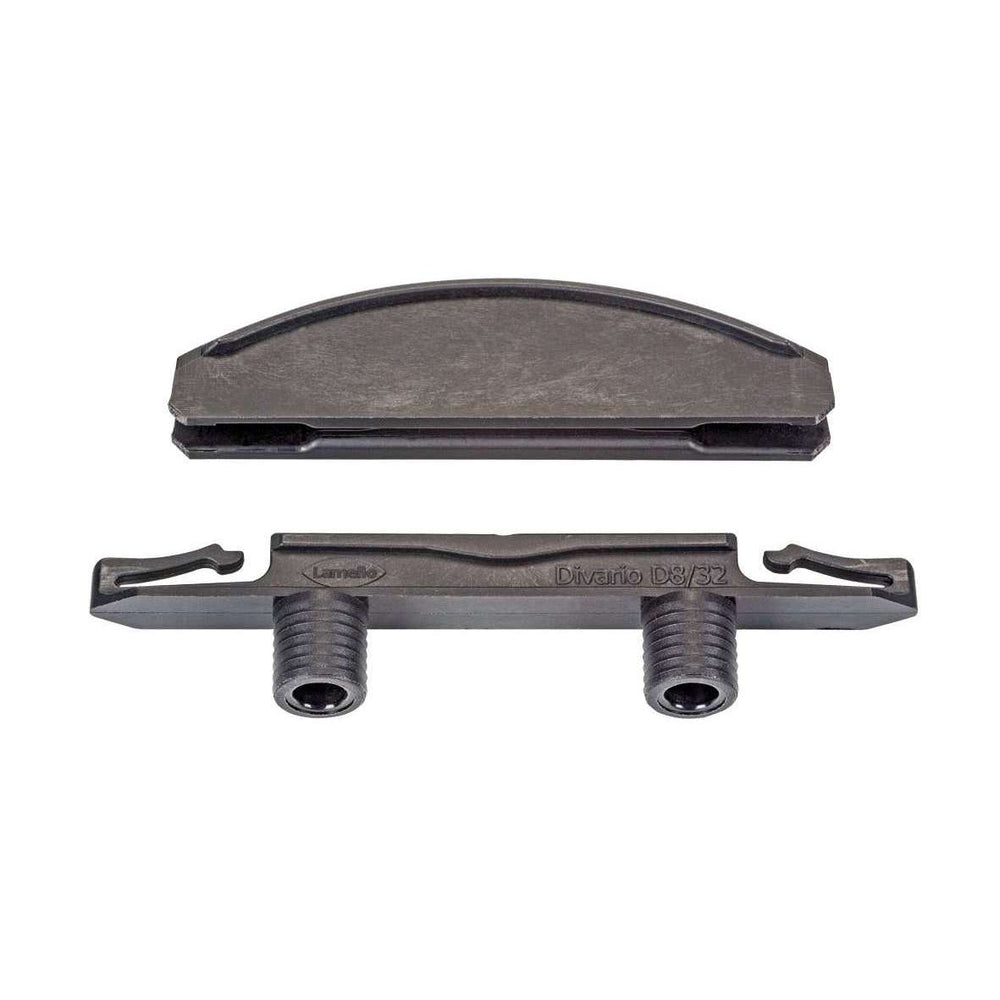

Lamello Divario P-18, Slide-in Connectors

by Lamello
SKU CL145550

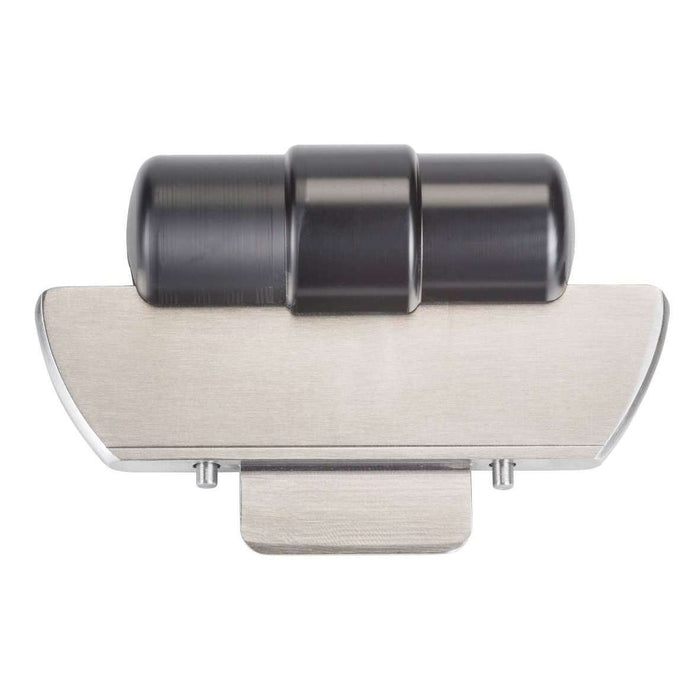

*Divario P-18 Connectors do not come with the required Divario P-18 Installation Tool and must be purchased separately*

With the Divario, shelves or separation walls can be inserted into pre-assembled structures. Additionally, the Divario P-18 also clamps the components during insertion, creating clean tight joints. The clamping action only occurs at certain points rather than across the entire insertion length, making the components easier to insert. Due to the strong connection between the work pieces, the joint is able to carry high tensile forces. With this new connector, the user has greater flexibility in design without having to sacrifice stability.

Neither clamping aids nor adhesive are required to insert the components. As a result, the connector makes it possible to assemble the components at the most cost-effective stage in the chain, whether at production, storage, transportation or assembly. The connector can be fully or only partially fitted on site. Moreover, the fitting is detachable for transportation.

The P-System groove for the fitting can either be created using CNC technology or very simply by hand using the Zeta P2 power tool from Lamello.

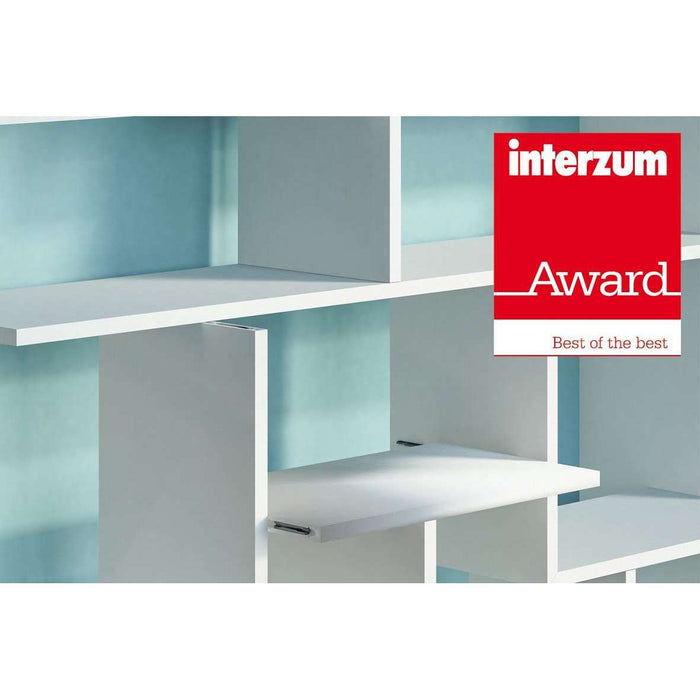

Subsequent insertion

Because no part is protruding, the Divario P-18 makes it possible to insert shelves or dividing panels into already assembled furntiure.

Completely invisible joint

Because of how it is inserted, the Divario P-18 is a completely invisible joint that meets the highest quality standards.

Installed in one movement

The integrated fixing pins secure the Divario in the P-System groove so it can't slide sideways.

  • Furniture
  • Interior design
  • Shop fitting
  • Exhibitions
  • Book shelves
  • Open room dividers

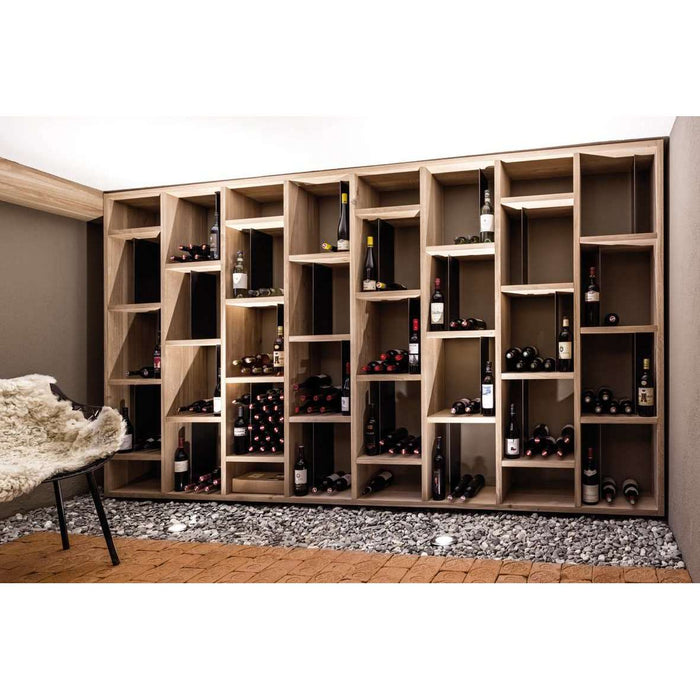

  • Wine shelves, etc.
Size 72 × 25 × 9.7 mm
Cutter Ø 100.4 x 7 x 22
Shell Material Fiberglass reinforced plastic
Installation tolerance Longitudinal ± 1 mm
Tensile strength 600 N ≈ 60 kg
