SCM, DMC SD10 CS, 37" Wide Belt Sander

by SCM
$21,380.00
SKU WSI-SCMSD10

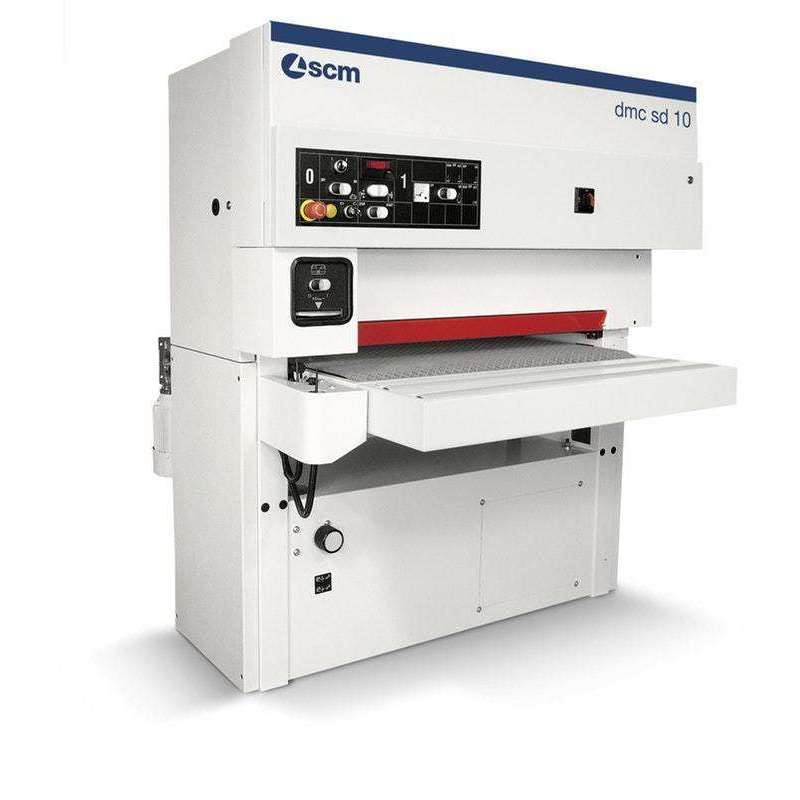

SCM DMC SD 10 CS 95 - 37" WIDE BELT SANDER, SINGLE COMBINATION HEAD

Standard Features

  • Rubber coated pressing rollers before and after sanding unit
  • Additional flexible hold-down plate before sanding unit.
  • .7 HP 2 speed feed unit. Feed speeds set at 15 and 30 feet per minute

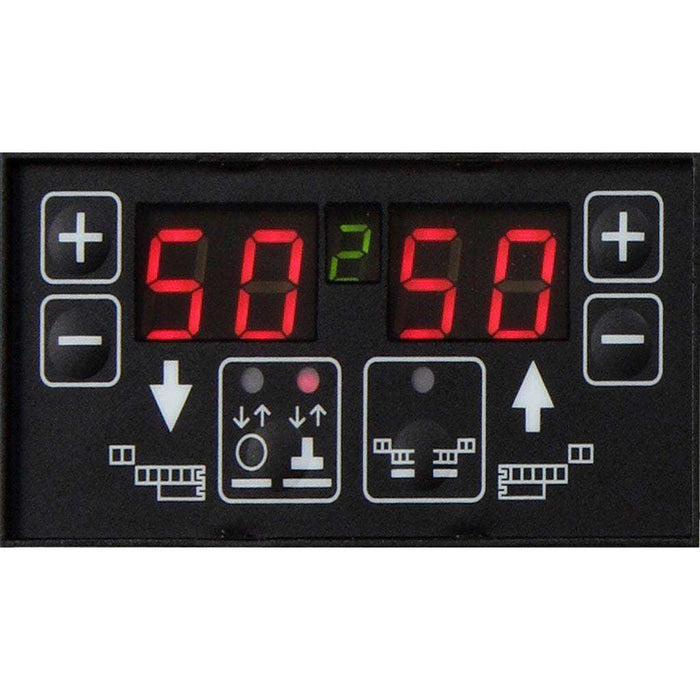

  • Electronic digital thickness readout of work table position
  • Electronic positioning of the work table
  • Powered table lifting by means of four heavy duty motor and lifting columns double fastened at both top and bottom of the lifting columns to provide exceptional table stability
  • Accurate and reliable electronic tracking of abrasive belt

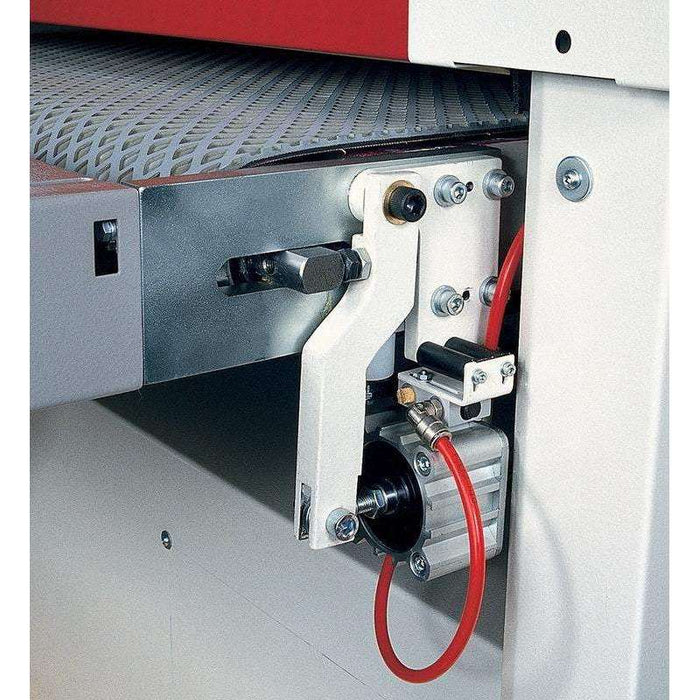

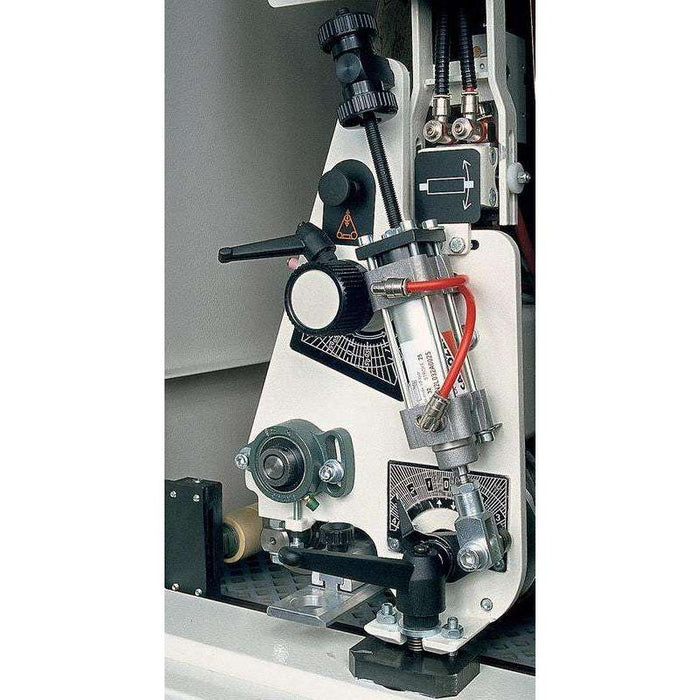

  • Pneumatic belt tensioning with center fulcrum to compensate for tapering of abrasive belt
  • Front and rear emergency stop buttons
  • Automatic emergency stop of machine for:
  • sanding belt breaking, tensioning, over tracking
  • opening of the access door to the operating groups
  • absence of compressed air
  • overload on main motors
  • Amperage meter for main motors allows maximum utilization of available horsepower
  • Main disconnect switch with the ability to be locked out by padlock
  • 50 shore, negative profile (waffle style) rubber feed mat
  • Infeed and Outfeed tables with 2 rollers each
  • Automatic table thickness device

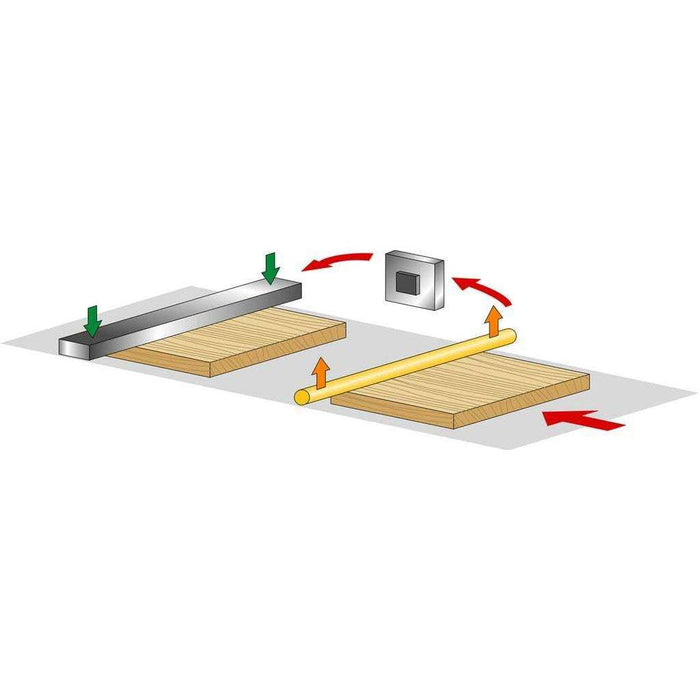

Automatic table positioning: practicality and precision together. The automatic detection of the work piece thickness allows precise machining at all times and without the risk of operator error. The decimal setting of this system also allows setting the work depth independently of the material.

Diamond-shaped belt: no slipping of the work pieces. The special geometry of the diamond-shaped profile of the transport belt provides the best traction surface for the work piece and with the increased support area also ensures maximum stability.

Compact to provide more floor space. The compact size of all DMC wide belt sanders simplifies their positioning in the workshop, while maintaining the performance and production potential of the sanders.

Technical Specifications

Working Width 950mm
Number of Heads Available 1
Feed Motor .7 HP
Feed Speed 15 or 30 fpm
Maximum Work Piece Thickness 160mm
Minimum Work Piece Length 12.5"
Abrasive Belt Size 37" X 60"
Compressed Air Requirements 6 Bar (88 PSI)
Dust Outlets 1 outlet @ 140mm
Exhaust Requirements 900 CFM
Power Requirements 54 amps @ 230V Three Phase

Working Unit Specifications

Working Unit Type Combination Head
Motor HP 18 HP
Motor Type Single Speed
Abrasive Belt Speed 18 mps
Drum Size 120mm
Drum Type 85 Sh Rubber
Platen Size 50mm
Platens Included Two
Abrasive Belt Length 60"

DMC SD 10 CS 95 - 37" WIDE BELT SANDER, ONE COMBINATION HEAD

SCM DMC SD 10 CS 95 - 37" Wide Belt Sander CS Version Head

SCM DMC SD 10 CS 95 - 37" WIDE BELT SANDER BROCHURE

Download Brochure
