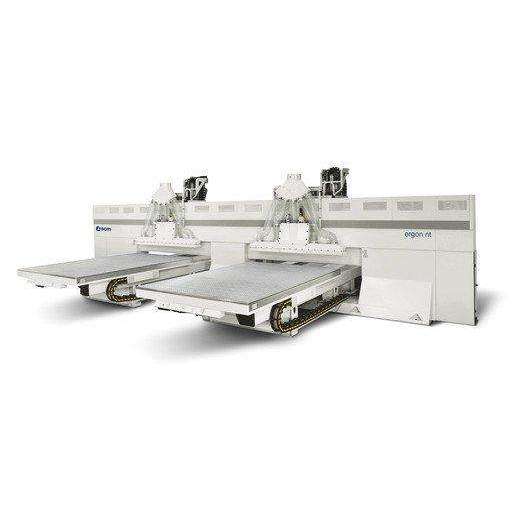

Ergon NT

by SCM
$0.00
SKU

Cnc machining center with parallel heads designed for a wide range of applications, from panels in nesting to doors, stairs and solid wood parts manufacturing. Ergon NT is the ideal solution for integration in line with automatic loading and unloading bridge.

Advantage

  • Maximum precision across the whole work area, thanks to the stiffness of the fixed gantry type structure.
  • High production capacity with the possibility of having up to 4 machining heads operating contemporaneously.
  • Complete access to the loading zone in total safety, the work zone is on the opposite side (rear units) and the tables move independently.
  • Extremely flexible productions with the machining heads with independent X-axis, that allow two different programs to be performed at the same time (one per table).

Technical data

X-axis working area mm from 3680 to 6360
Y-axis working area mm from 1560 to 3120
Component passage mm 280
Tool change on-board for each head position 12
Max. lateral side tool change position 48
