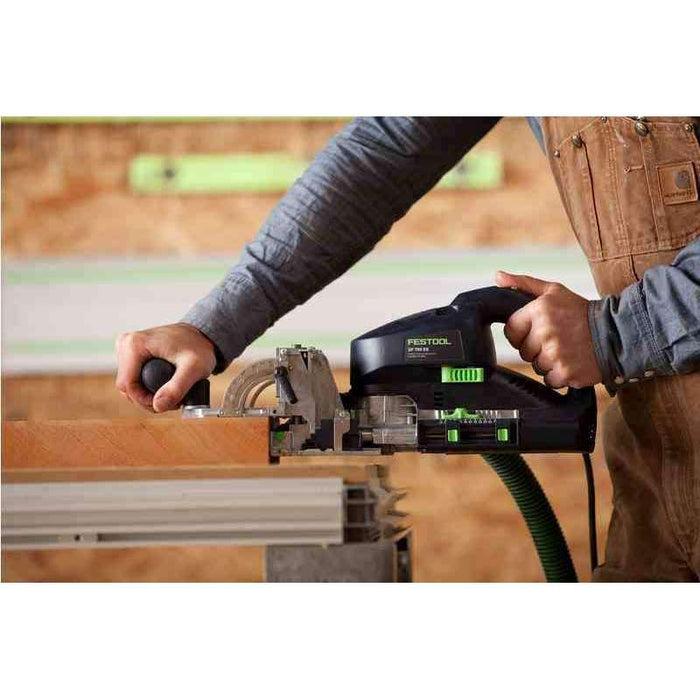

Festool 576431 Domino Joiner DF 700 XL

by Festool
SKU 576431
  • Unique, patented cutting action that rotates and oscillates to create perfect, clean, and repeatable mortises every time
  • Mortise width adjustment with the turn of a dial allows for easier alignment when joining panels
  • Indexing pins for quick alignment against the edge of the work piece for accurate placement
  • Tenons up to approximately 5-1/2-Inch in length for large scale projects
  • Includes optional trim and cross stops for narrow stock and edge joining

The Festool Domino XL is the only tool that brings true mortise and tenon joinery to the palm of your hand and out of the workshop. Excels when utilized for entry doors, stairs, gates, large mill work projects and more, saving you significant time and money. The Domino XL utilizes a drill bit style cutter that spins, while oscillating, creating mortises in easily adjustable sizes from 8-14mm in width and up to 140mm in depth. This unique cutter style, coupled with many versatile features, quickly adapting the tool to the job, makes mortise and tenon joinery fun, fast and easy.

The Domino XL's rapid, repeatable mortising action and easy changeover between tenons and cutters (in only seconds) make tenon joinery faster, easier, and more accurate than ever before. The Domino XL tenons fit perfectly into the mortise helping create a strong, secure and resilient joint. The Domino XL has made mortise and tenon joinery repeatable, consistent and mobile. No longer is joinery a tedious and dubious task requiring many hours working with large shop equipment.

  • Multiple cutters and tenons available - create mortises from 8-14mm in width and up to 140mm in depth
  • Precise Positioning - Utilizing an adjustable fence angle, retractable stops, adjustable cutter height and precise mortise depth stop
  • Multiple indexing pins offer quick mortise offsets without measuring, saving time
  • Superior dust extraction keeps the work piece and area almost dust free
  • Includes Cross & Trim Stops eliminate witness marks, guess work and allow for precise mortises even in thin stock
  • Nearly 1 HP motor

Tenon Size Selection

Minimum Lumber Thickness Tenon Size Tenon Width Tenon Length
1" 8 mm (5/16") 22 mm (27/32")

40 mm (1-9/16")
50 mm (1-31/32")
80 mm (3-5/32")
100 mm (3-15/16")

1-3/16" 10 mm (3/8") 24 mm (15/16") 50 mm (1-31/32")
80 mm (3-5/32")
100 mm (3-15/16")
1-7/16" 12 mm (15/32") 26 mm (1-1/32") 100 mm (3-15/16")
140 mm (5-1/2")
1-5/8" 14 mm (17/32") 28 mm (1-3/32") 100 mm (3-15/16")
140 mm (5-1/2")

* Note: Imperial (inches) measurements are approximate conversions from metric dimensions.


  • (1) Domino Cutter (12mm)
  • (1) Support Bracket
  • (1) Wrench
  • (1) Trim Stop
  • (1) Cross Stop
  • (1) Plug it Cord
  • (1) T-Loc Systainer 5
Cutter Spindle Speed 21,000 rpm
DOMINO Slot Cutter Diameter 8, 10, 12, 14 mm
Miter Routing 0-90°
Movable Stepped Stop 10, 15, 20, 25, 30, 40 mm
Power Consumption 420 watts
Routing Depth Stop 15 - 70 mm
Routing Height Adjuster with Scale 5-30 mm
Hose Port Diameter 27 mm
Weight 11.5 lbs.
