by Front Range
$60,000.00
Payment Calculator
Financing Request
SKU WSI-FRONTRANGE-FOUNDATION48

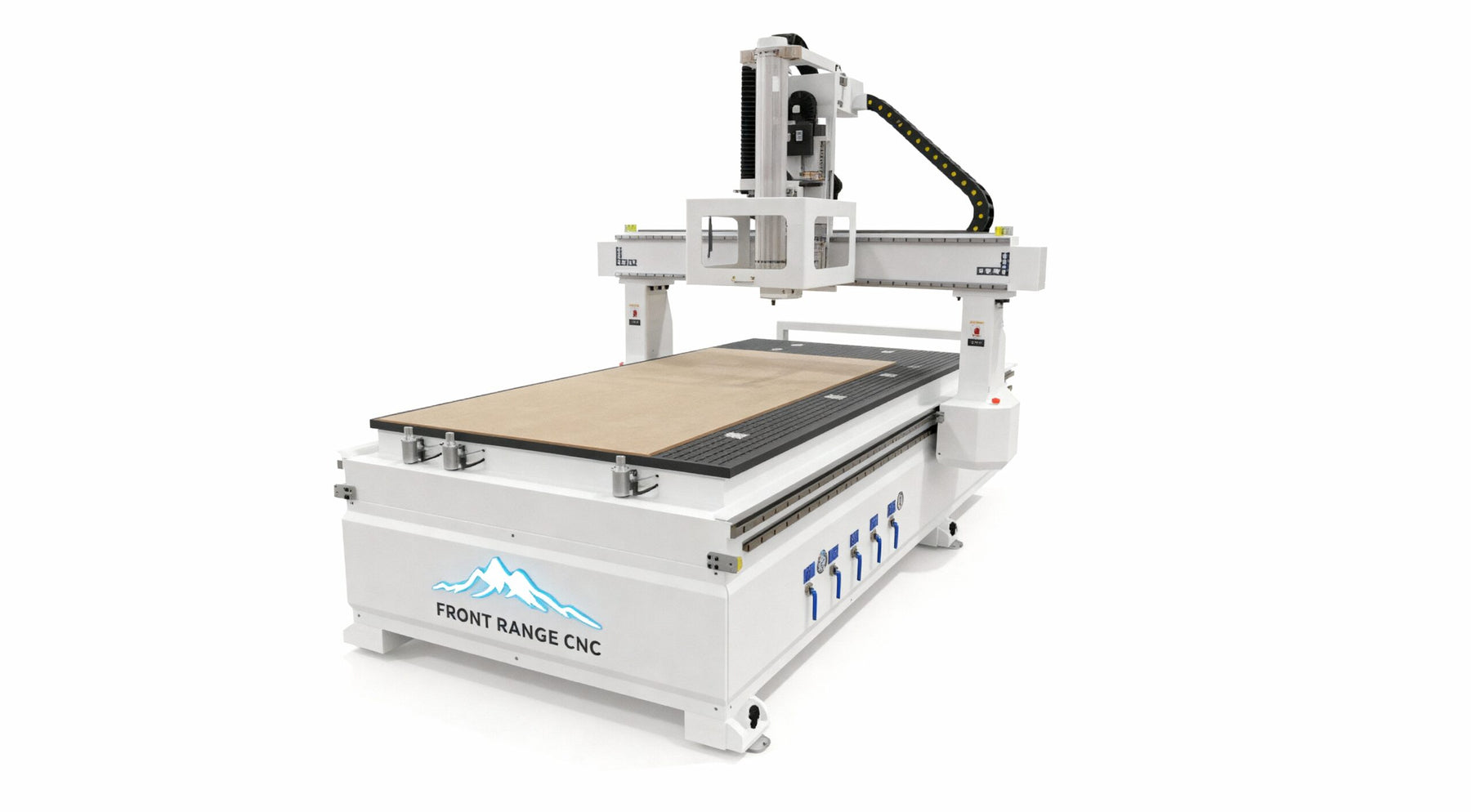

The Front Range CNC Foundation Series is a heavy-duty, production-grade 3-axis CNC router engineered for small to mid-sized shops requiring industrial performance without highly inflated costs. Built around a fully welded, single-piece steel frame that is stress-relieved for maximum stability, it is specifically tailored to process cabinetry, signage, plastics, foam, and advanced composites efficiently



All-Inclusive Configuration: Avoids hidden upgrade fees by offering a flat baseline rate that equips the unit for standard factory production right away.

Automatic Tool Changer: Operates an integrated 12-position tool magazine capable of completing tool swaps in 15 seconds to run complex multi-tool profiles completely unattended.

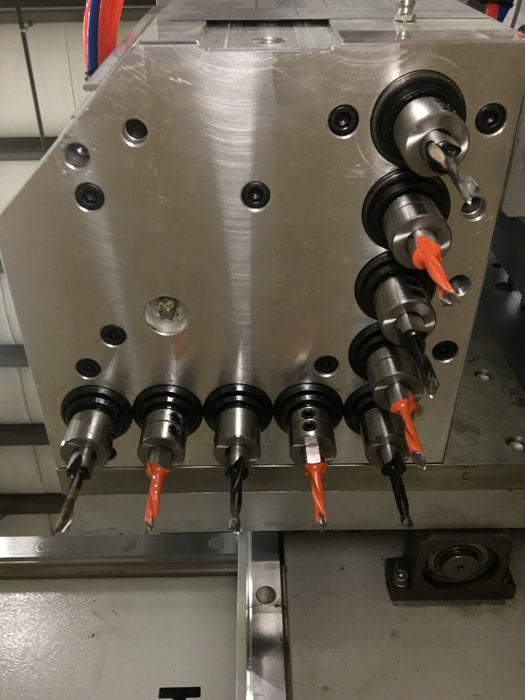

Built-in Drilling Bank: Houses a 5+4 drill bank (5 vertical, 4 horizontal spindles) optimized for standard casework, dowels, and shelf pin placement in a single continuous setup.

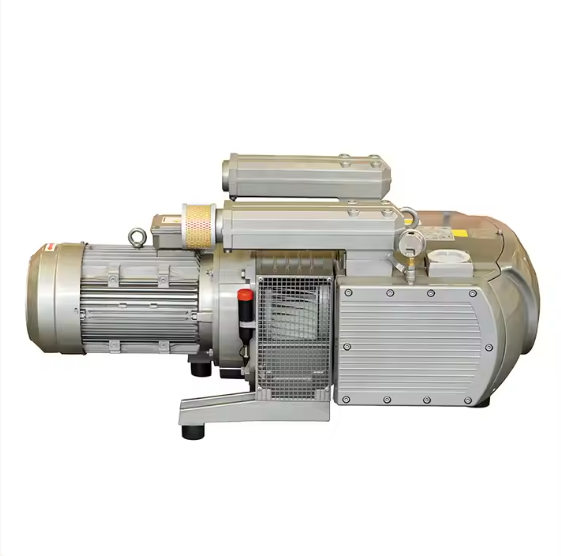

Industrial Hold-Down: Employs a robust 10HP rotary vane vacuum pump to create rigid sheet suction across the entire table bed, eliminating small-part shifting.

Self-Maintenance & Support: Features automatic structural lubrication alongside 24/7 CNC Companion AI software support for quick feeds-and-speeds optimization.

Software Bundles: ships with full commercial licenses for VCarve Pro and Mozaik software to handle the entire design-to-production workflow out of the box.

Category Component / Feature Specification
Core Architecture Machine Type 3-Axis CNC Router
Bridge Precision Milled Steel
Table Surface Phenolic / Hard PVC
Physical Dimensions Cut Area 49″ x 97″ (Standard 4' x 8' Sheet Capacity)
Footprint Approx. 100″ x 152″ x 101″H
Weight 5,000 lbs

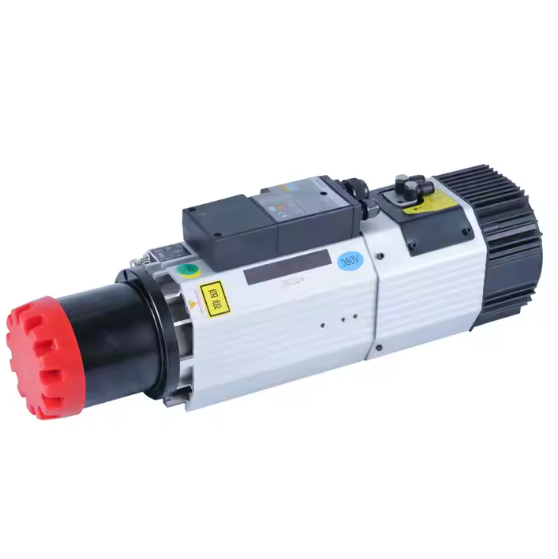

Spindle & Tools Spindle 10HP ISO30, 24,000 RPM
Drill Bank 9 Positions (5 Vertical, 4 Horizontal)
Tool Magazine 12 Positions
Tool Change Speed 15 Seconds
Motion & Speed Linear Guides 25mm – 30mm HiWin Rails
Drives High Speed Syntec Encoders
Rapid Speed 2,500 IPM
Cutting Speed 1,600 IPM
Clearance & Precision Z Clearance 16″
Tolerance +/- .005″
Repeatability +/- .001″
Support Systems Vacuum Pump 10HP Rotary Vane
Dust Collector 7.5HP, Included
Lubrication Automatic
Software & Service Software VCarve Pro & Mozaik Included
Installation 2-Day Onsite, Included
Warranty 3 Years Parts
