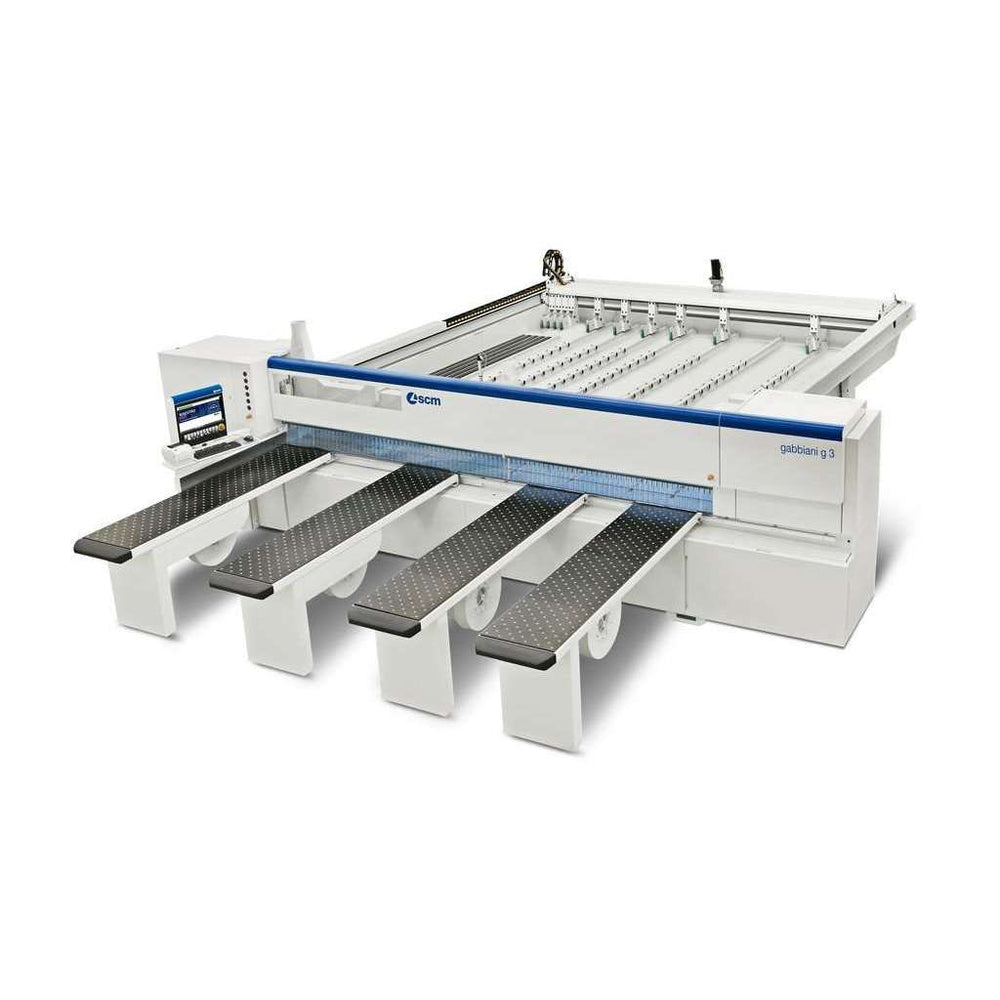

Gabbiani G3 130 / 145 / 165

by SCM
$0.00
SKU

Innovative high-performance single blade beam saws in quality for cut finishing and working speed in order to meet the production needs of the furniture companies. It is the ideal solution for companies requiring to process small to medium batches. Gabbiani G3 offers processing solutions to satisfy every single customer demand.

Advantages

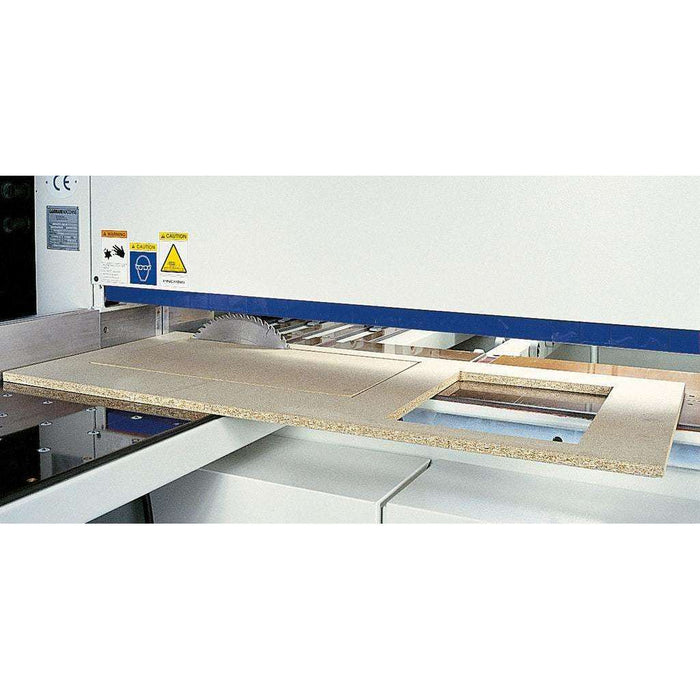

HI-TRONIC DEVICE: high technology on the saw carriage.
Very high quality finishing cutting standards together with high speed and precision with the total electronic control of the blades.

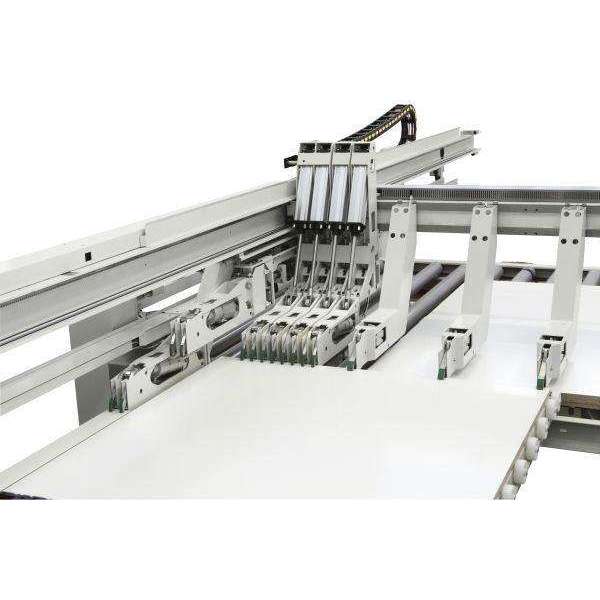

FLEXCUT 1/D: more cuts in less time.
High efficiency due to the use of 2 pushers with a completely independent stroke.

Drastic reduction in machining cycle times due to the simultaneous processing of several bars with different cuts.
Extreme flexibility is achieved as the mobile unit is fitted with two grippers, the second one can be excluded, therefore guaranteeing a wide variability in the width of the strips that can be gripped.

PRISMATIC GUIDES WITH RECIRCULATING SPHERES: maximum linearity and minimum friction.
Increased productivity capacity both with high speed, that can be reached during the feeding stroke and a return stroke (up to 170 m/min).
The centralised lubrication, verified by control, guarantees the complete lack of maintenance.

PUSHER BEAM: maximum linearity and long time precision.
Fast cycle times with high speeds in the return stroke (up to 135 m/min).
Centralised and automated lubrication system that is managed by the PC (video monitoring) ensures the lack of maintenance.

Technical data

gabbiani g 3 130 gabbiani g 3 145 gabbiani g 3 165
Cutting lenght mm 3200/3800/4500
Blade projection mm 130 145 165
Main blade motor power (option) kW 15 (18 - 22 - 30 -37) 18,5 (22 - 30 - 37)
Rotating speed – 50 Hz r.p.m. 3500 2950
Saw carriage variable speed (option) m/min 0 - 170
Pusher variable speed m/min 135
Kit for plastic materials cutting Available
HI-TRONIC device Available Std.
FLEXCUT device 1/D -
Number of clamps std

6 (3 of which with double finger on the squaring area)
