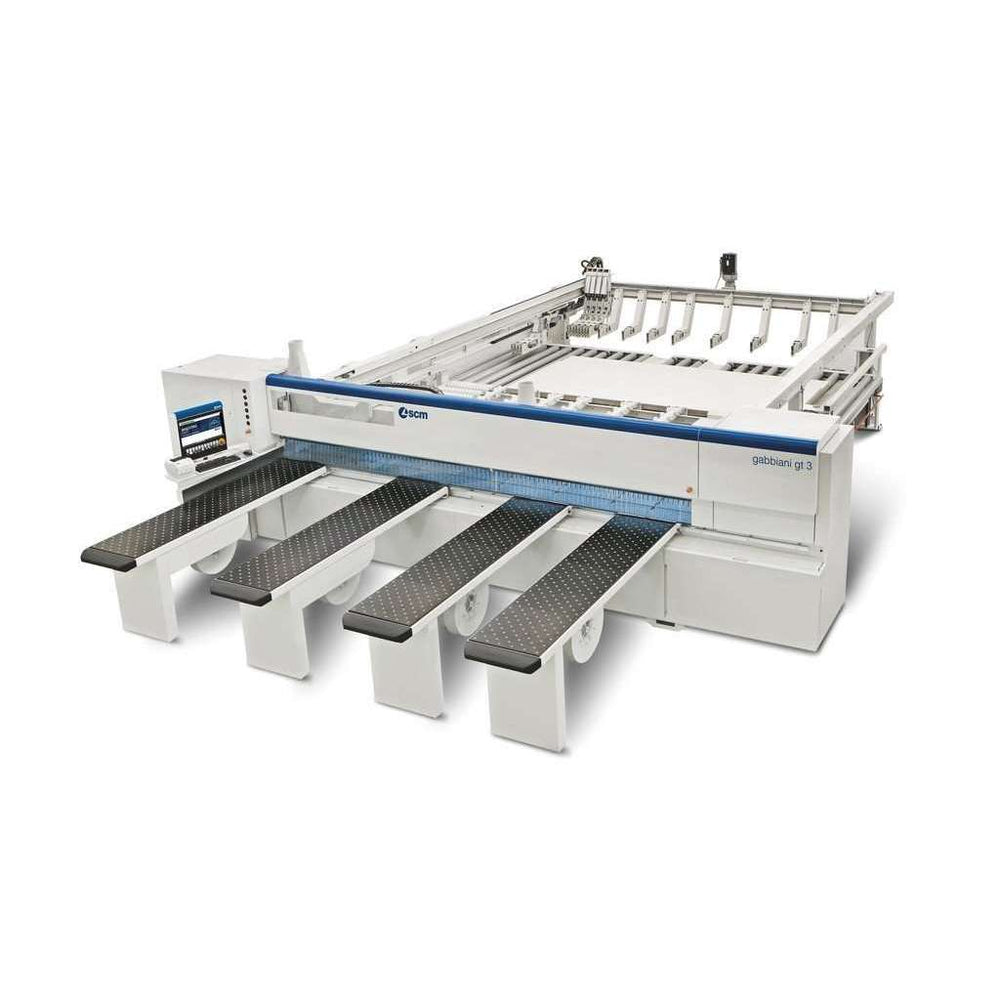

Gabbiani GT3 130 / 145 / 165

by SCM
$0.00
SKU

New single blade beam saws offer high performance in quality for cut finishing and working speed in order to meet the production needs of the furniture companies. Ideal solution for the company that requires to process medium-large batches. Gabbiani GT3 has a modular design and can be tailored to meet any customer requirement. Advantagesce mechanical design, powerful motor units and electronic control are just some of the features that guarantee high production rates, flexibility, precision machining and a top quality cut finishing.

Advantages

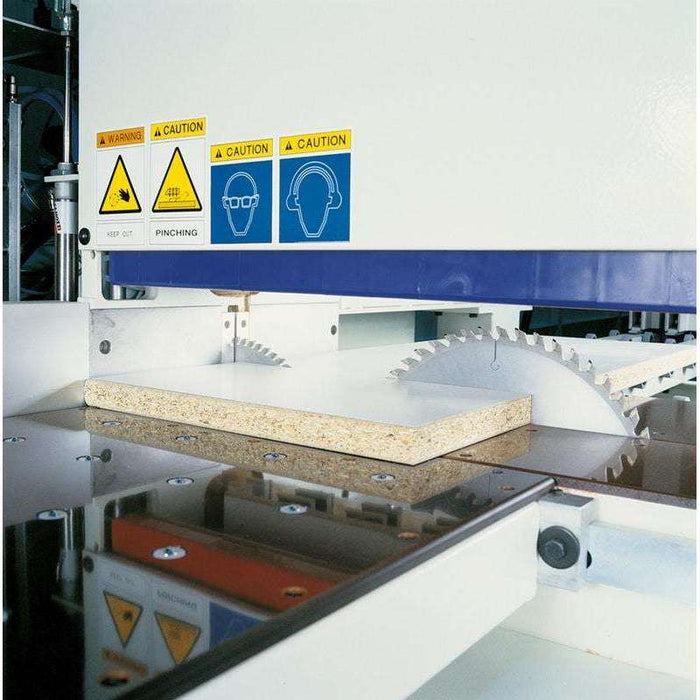

HI-TRONIC DEVICE: high technology on the saw carriage.
Very high quality finishing cutting standards together with highspeedand precision with the total electronic control of the blades.

FLEXCUT 1/D: more cuts in less time.
High efficiency due to the use of 2 pushers with a completely independent stroke.
Drastic reduction in machining cycle times due to the simultaneous processing of several bars with different cuts.
Extreme flexibility is achieved as the mobile unit is fitted with two grippers, one of which can be excluded, therefore guaranteeing a wide variability in the width of the strips that can be gripped.

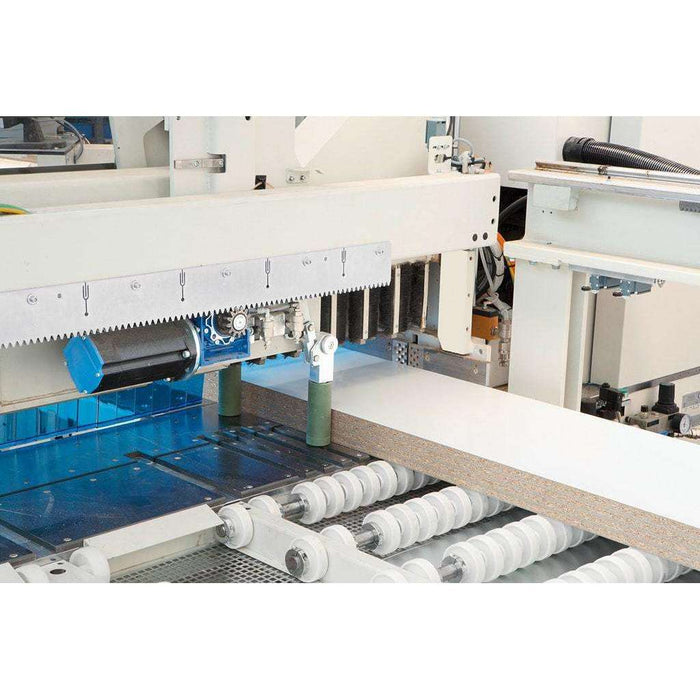

PRISMATIC GUIDES WITH RECIRCULATING SPHERES: maximum linearity and minimum friction.
Increased productivity capacitywithhigh speeds, that can be reached both during the feeding stroke and return stroke (up to 170 m/min). The centralised lubrication, verified by control, guarantees the complete lack of maintenance.

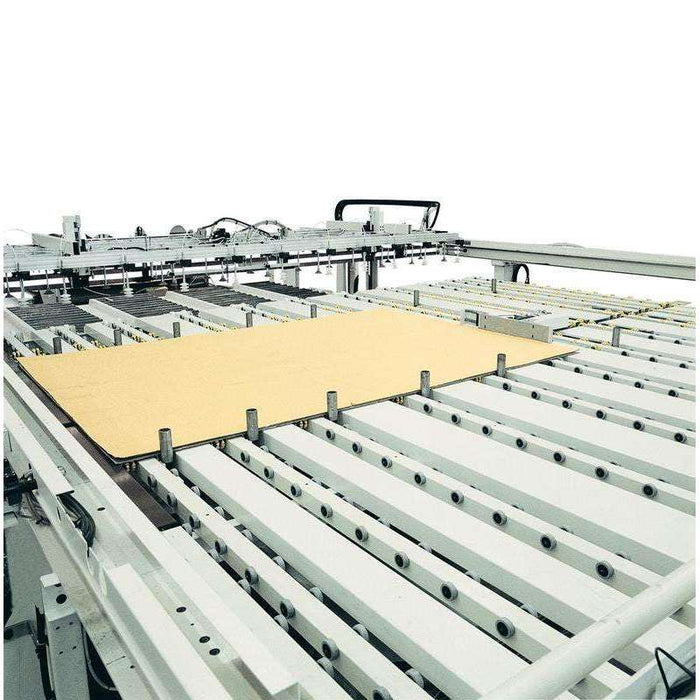

PUSHER BEAM: maximum linearity and long time precision.
Fast cycle timeswith high speeds in the return stroke (up to 135 m/min). Centralised and automated lubrication system that is managed by the PC (video monitoring) ensures the lack of maintenance.

Technical data

Gabbiani GT3 130 Gabbiani GT3 145 Gabbiani GT3 165
Cutting lenght mm 3200/3800/4500 3200/3800/4500/5600
Blade projection mm 130 145 165

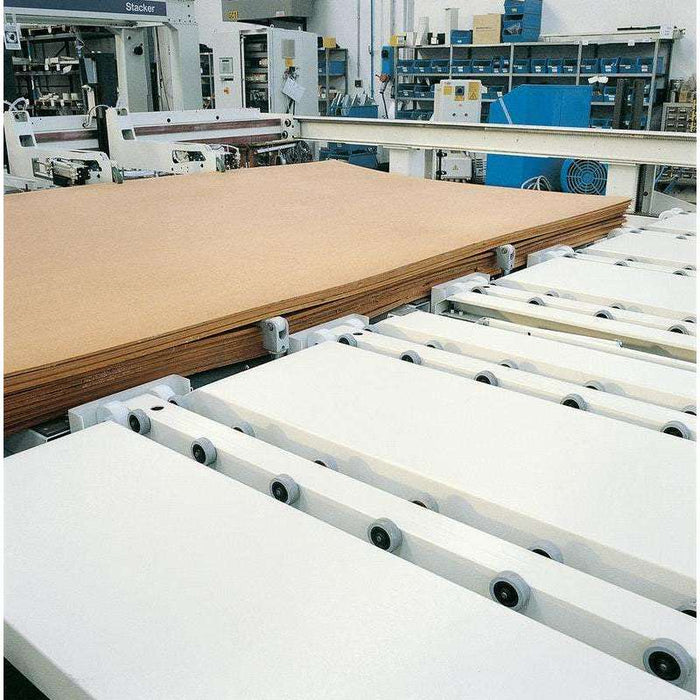

Max. height of panel stack on lifting table mm 600
Main blade motor power (option) kW 15 (18 - 22 - 30 - 37) 18,5 (22 - 30 - 37)
Rotating speed – 50 Hz r.p.m. 3500 2950
Saw carriage variable speed (option) m/min 0 - 170
Pusher variable speed m/min 135
Kit for plastic materials cutting Available
HI-TRONIC device Available Std.
FLEXCUT device std 1/D -
Number of clamps std

6 (7 for 4500 and 5600 versions)
(3 with double finger, squaring area)
(3 front aligners for 3200-3800-4500 versions – 4 front aligners
for 5600 version are included)
