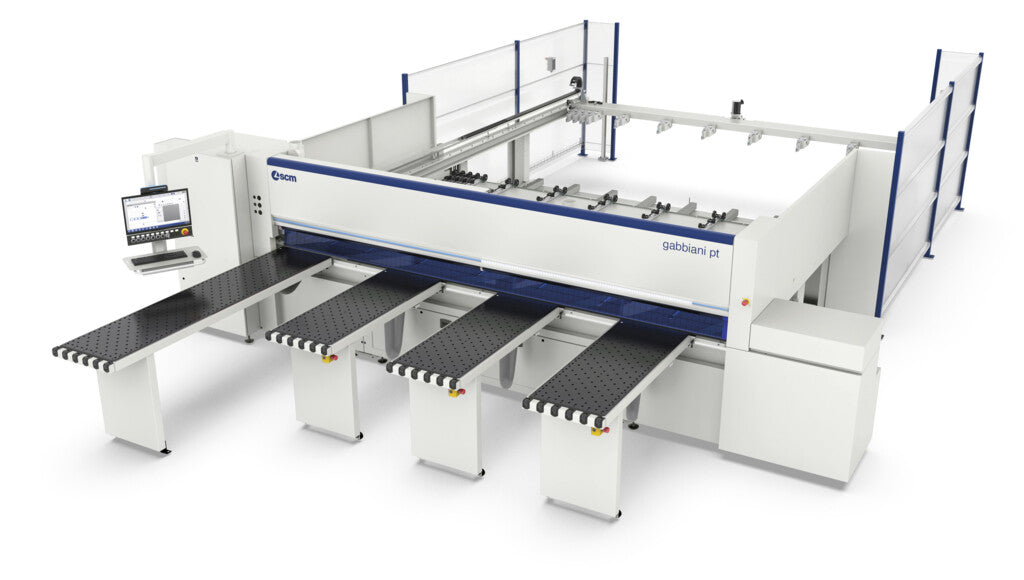

The SCM Gabbiani PT is an automatic horizontal beam saw equipped with a rear loading platform (lift table), designed for small to medium-sized furniture manufacturers and panel-processing companies. It is ideal for cutting MDF, particleboard, plywood, laminated panels, melamine, and other wood-based materials with high accuracy and productivity. Unlike the Gabbiani P, the PT version offers automated stack loading, making it more suitable for continuous production environments. to 20%. guides operators during loading and cutting.

  • Improves safety and reduces setup errors.
  • Rear LED bar assists forklift operators during stack loading. precise cutting quality. speed up to 120 m/min.
  • Pusher speed up to 80 m/min.
  • Suitable for batch and mass production. .
  • Easy integration into automated manufacturing environments. 5850 rpm | 5850 rpm |
    | Number of Clamps | 5 | 5 | lywood and laminated panel processing
  • Cabinet and closet systems production panel-processing facilities.

1. Automatic Loading Platform

  • Rear loading lift table for automatic panel stack handling.
  • Reduces manual labor and operator fatigue.
  • Supports continuous production with stack heights up to 600 mm.

2. FLEXCUT Technology

  • Performs rip cuts and cross cuts simultaneously.
  • Increases productivity by up to 30%.
  • Reduces floor space requirements by up to 20%.

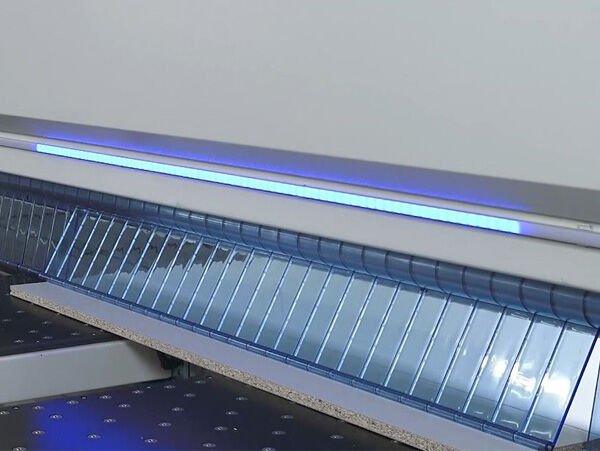

3. LED Bar Guidance System

  • Intelligent LED indicators guide operators during loading and cutting.
  • Improves safety and minimizes loading errors.
  • Rear LED bar assists forklift operators during stack loading.

4. High Cutting Precision

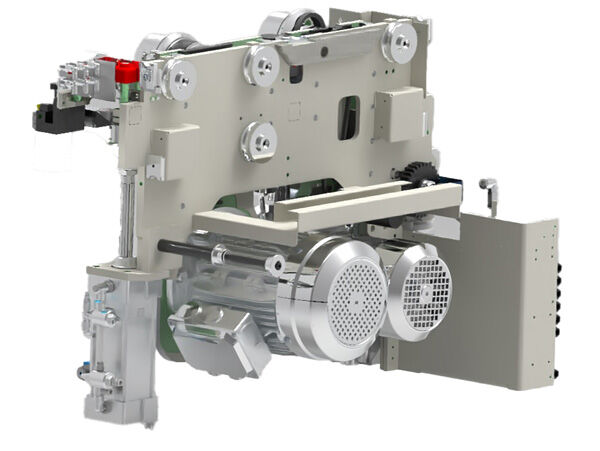

  • Brushless motors and linear guideways reduce friction.
  • Ensures accurate and repeatable cuts.
  • Suitable for high-quality furniture and cabinet manufacturing.

5. Fast Tool Setup (SAW-SET)

  • Electronic blade adjustment system.
  • Quick and precise setup of main and scoring blades.
  • Minimizes machine downtime.

6. Heavy-Duty Lift Platform

  • Four large trapezoidal lifting screws maintain parallel lifting.
  • Handles heavy panel stacks reliably.
  • Maximizes productivity while preventing loading interruptions.

7. Cost-Effective Automation

  • Ideal first beam saw for small and medium manufacturers.
  • Provides industrial automation without the cost of high-end beam saw systems.

Machine Features

  • Automatic horizontal single-blade beam saw
  • PT80 and PT95 versions available
  • Rear loading platform with lift table
  • PC/PLC control system
  • Maestro Active Cut software
  • Air cushion tables for smooth panel movement

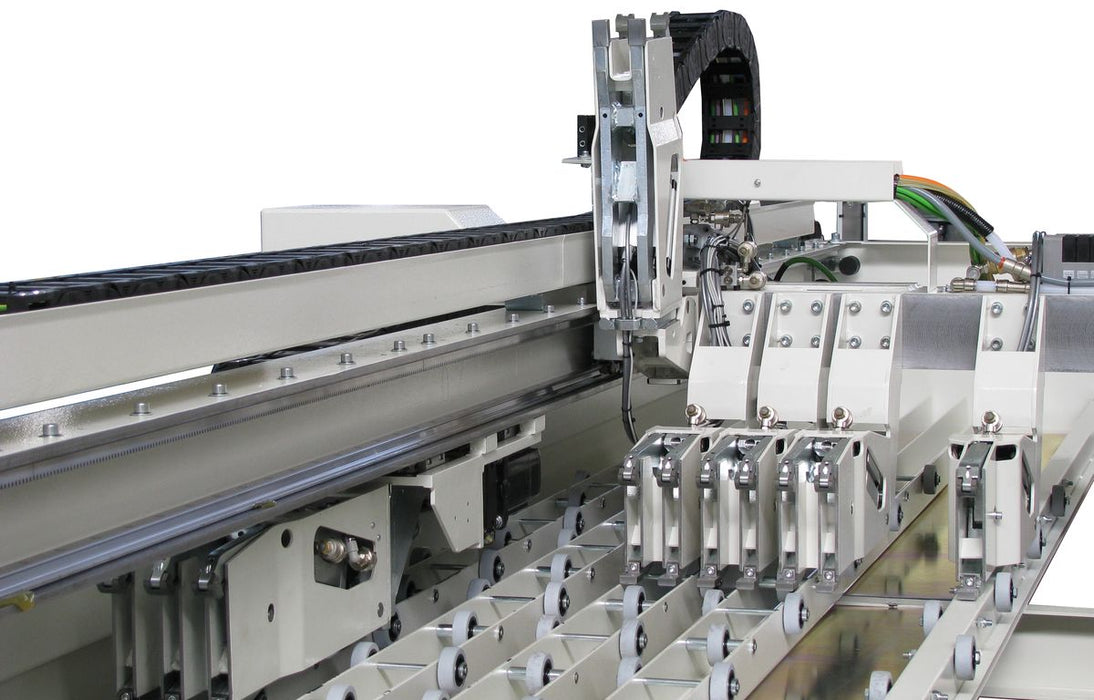

  • Floating clamps for secure panel gripping
  • Automatic side alignment device
  • Optional label printing system
  • Industry 4.0 connectivity options available

Cutting Features

  • Cutting lengths: 3300 / 3800 / 4300 mm
  • Blade projection: 80 mm (PT80) or 95 mm (PT95)
  • Saw carriage speed up to 120 m/min
  • Pusher speed up to 80 m/min
  • Main motor power up to 18 kW
  • 5 standard floating clamps

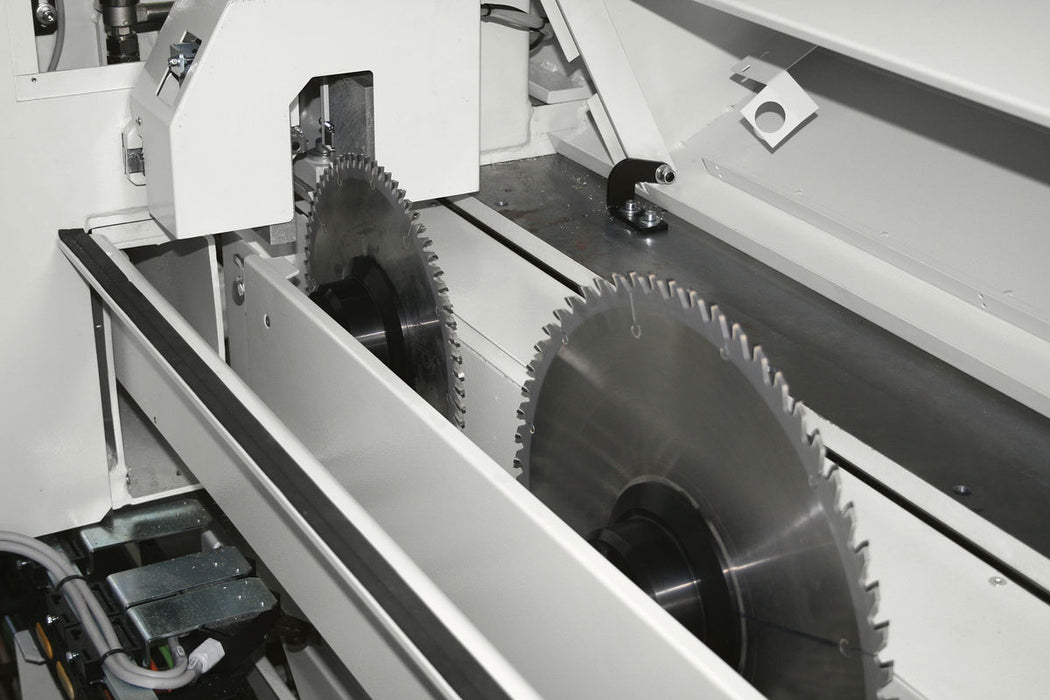

  • Main blade diameter: 340–370 mm
  • Scoring blade diameter: 200 mm

Materials Processed

  • MDF
  • Particleboard
  • Melamine panels
  • Plywood
  • Laminated boards
  • Fiberboard
  • Multilayer panels
  • Plastic and composite sheet materials
