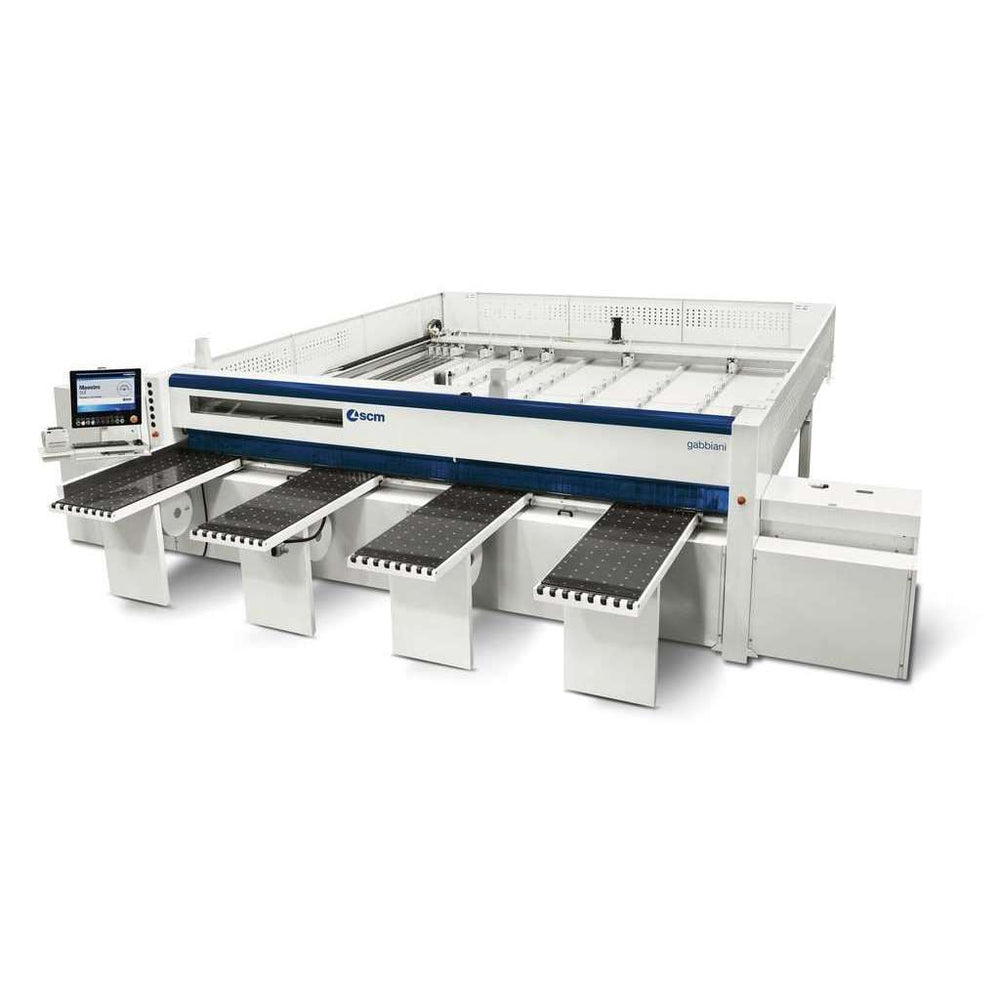

Gabbiani S 95 / 115

by SCM
$0.00
SKU

Ideal solution for small-sized companies.
Single-blade beam saw controlled by PC/PLC control system, designed to cut solid wood panels or panel stacks and its products (chipboards, MDF panels, multilayer panels, plywood panels and fiber panels). The solution to integrate the beam saw inside a flexstore s or flexstore el storage.

Advantages

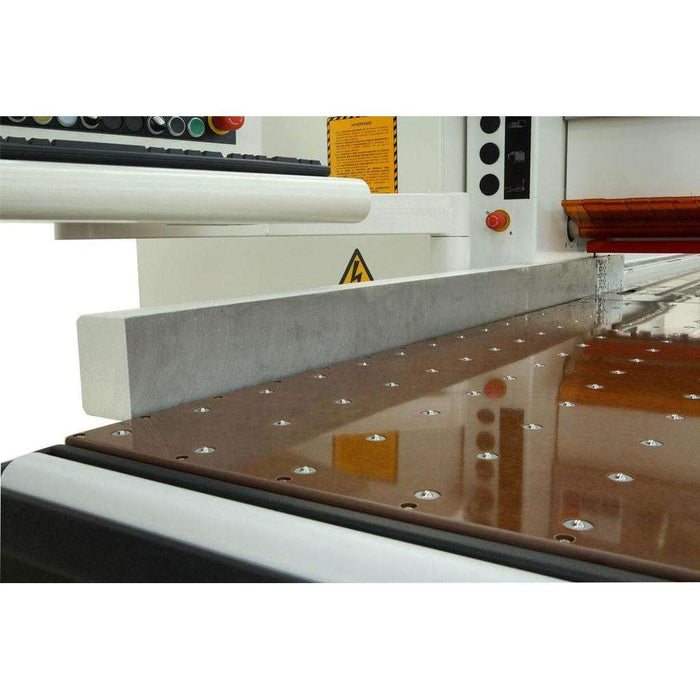

Selectable air blowing table: an essential tool.

The possibility to enable/disable the air blowing device on each table section via independent motors,ensuring optimal sliding of the panels only where it is needed and avoids accidental falling of cut panels temporarily stored on the tables.

FLEXCUT unit: incomparable flexibility and productivity.
Increasing of productivity up to 30%and space saving up to 20%owing to the simultaneous execution of both rip and cross cuts.

SAW SET: tool changing has never been so easy.
In few seconds the "SAW-SET" device carries out a fast and precise tools adjustment due to the electronic setting, allowing an intuitive use of the machine and a productivity increase.

Meastro Cut: easy and powerful software to programme and create all the panels imaginable.

Intuitive,reliable and customizable operator’s interface depending on customers’ needs.
Materials stock: creation of a panels storage with an integrated bi-directional connection to Maestro Watch
Off-cuts stock: automatic off-cut restocking that will be displayed together with the materials stock
Parts handling management during machining: parking solution for end products, off-cuts and scraps.

Technical data

Gabbiani S95 Gabbiani S115
Cutting length mm 3200/3800/4500
Blade projection mm 95 115
Saw carriage variable speed (option) m/min 6 - 60 (0 - 135 / 0 - 150)
Pusher variable speed (option) m/min 0 - 60 (0 -70 / 0 - 120)
Main blade motor S6 - 40% (option) kW 7 (9 - 11 - 15) 9 (11 -15 - 18)
Scoring unit blade motor 50 Hz kW 1,8
Main blade / scorer speed 50 Hz r.p.m. 3900/6300
Main blade / scorer blade diameter mm 380/160 400/160
Number of clamps std 5 6
