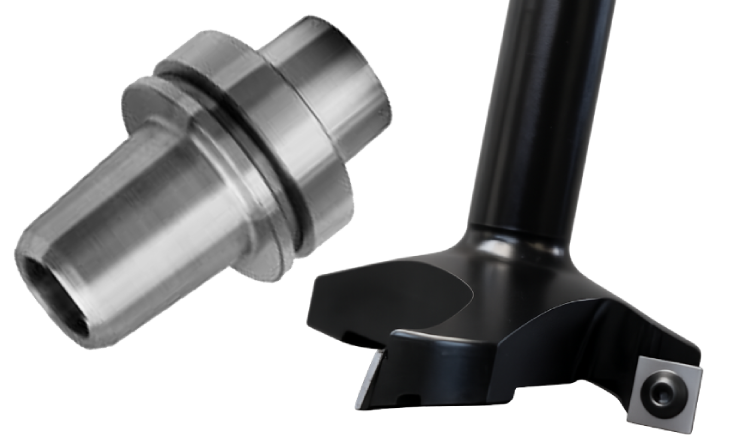

100mm (3.93") Fly Cutter with HSK-F 63 Shank & Heat Shrink Tool Holder
Engineered for high-performance surfacing on CNC routers and point-to-point machines, this 100mm (3.93") 3-wing insert fly cutter is ideal for planing and spoilboard surfacing applications.
Designed for high-precision clamping of tool shanks made from solid carbide or steel, this heat shrink tool holder delivers exceptional clamping force and outstanding runout accuracy of ≤ 0.003 mm (0.0001”). This level of precision is achieved through ultra-accurate manufacturing and the elimination of tolerance stacking typically caused by standard holders, collets, and collet nuts.
This tool comes pre-installed with an HSK-F 63 heat shrink tool holder, ensuring optimal precision and performance right out of the box. The heat shrink system provides exceptional runout accuracy, improving surface finish while extending tool life. By eliminating the need for routine collet replacements and reducing insert wear, this setup delivers long-term cost savings and maximum machining efficiency. We offer free tool mounting when ordered with an pairing tool.
Benefits
- Reduces tool vibration, increasing part accuracy and surface finish quality.
- Uniform 360° gripping of the tool shank using heat shrink fit.
- Excellent torque transmission, ideal for heavy-duty or high-speed milling
- Stable clamping reduces micro-movement and heat buildup at the cutting edge.
- Decreases wear on cutting tools and the holder.
- No collets or nuts means fewer parts, simpler cleaning, and better dynamic balance.
Technical Information
Fly Cutter:
Diameter: 100mm (3.937")
Shank Diameter: HSK-F 63
Overall Length: 80mm
Cutting Length: 12mm
Wings: 3 Total
Rotation: RH
Heat Shrink Tool Holder:
Diameter: 3/4"
Shank Diameter: HSK-F 63
Overall Length: 100mm
Gauge Length: 75mm
Rotation: RH & LH
