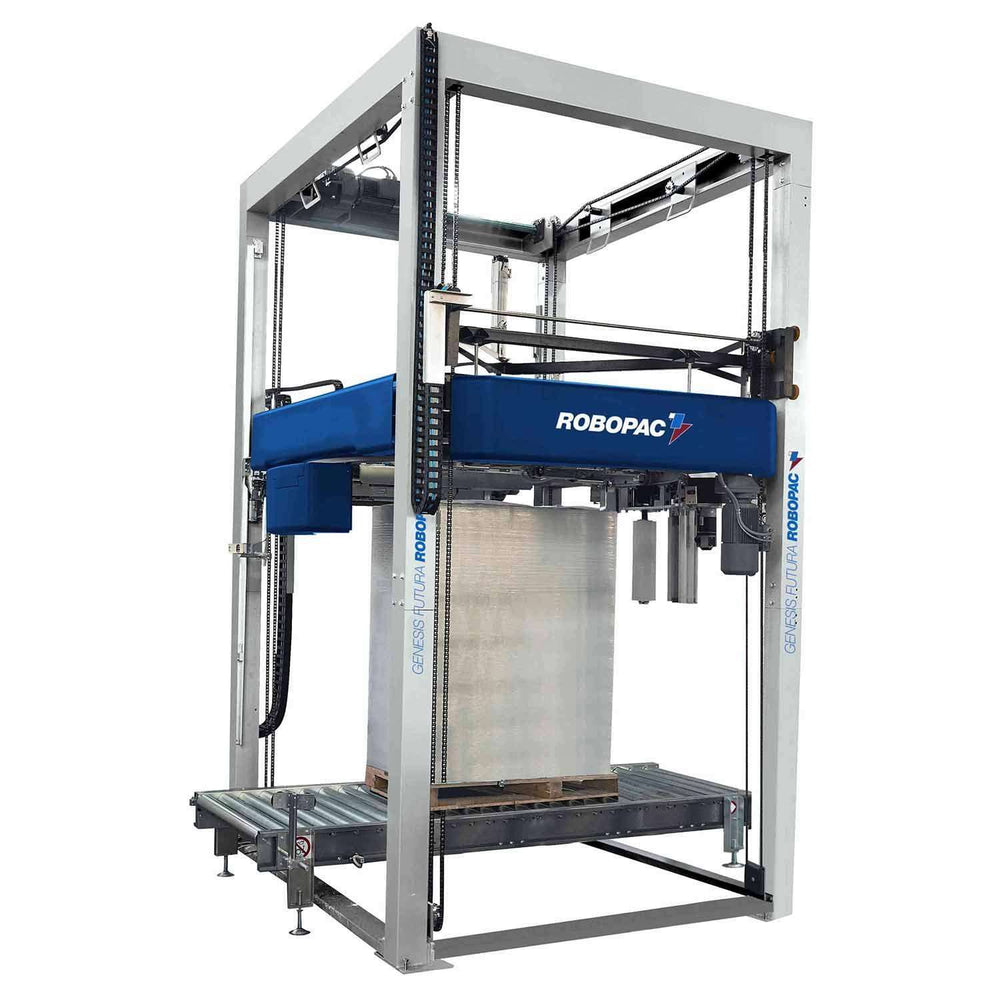

Genesis Futura 40 Automatic Stretch Wrapper

by RoboPac
$0.00
SKU

The Genesis Futura 40 is an automatic rotary ring style stretch wrapper designed to provide a rugged, flexible and high capacity automatic stretch wrapping solution.

The Genesis Futura 40 features a patented system for delivering power to the pre-stretch carriage without using sliding electrical contacts. This reduces downtime associated with the maintenance associated with the use of sliding contacts. The Genesis Futura 40 is a 40 RPM machine that is capable of reaching up to 95 pallet loads per hour.

With CUBE® Technology!

Our innovative CUBE® Technology offered on this machine combines the following four (4) key factors to successfully wrap loads & ensure that they reach your customer in “as-made” condition by maintaining proper wrapping standards.

  1. Multi-Level Variable Pre-Stretch ensures the best film economy & delivers 30-55% film savings.
  2. Multi-Level Variable Containment Force delivers optimal containment force at each level of the load.
  3. Pro-Active Corner Compensation enables you to wrap any load securely without corner damage or repetitive film breaks.
  4. Strategic Film Placement allows you to place film exactly where it has the most impact on load stability and containment.

R-Connect® Ready!

R-Connect®, available for this machine is our latest innovation was developed to provide usage and performance data via the cloud, enabling you to meet Industry 4.0 demands by putting performance monitoring & optimization at your fingertips. Utilization drastically reduces downtime by giving you informational transparency, allowing you to connect with your machines remotely to investigate alarms, adjust parameters, & respond promptly. This Industry 4.0 innovation empowers you with actionable insight to continuously improve performance, cost savings, & automation.

Technical Data

Performance
Loads/HR 80
RPM 40
Load Capacity
Max Load Dimensions (W X L) 44 x 52
Min Load Dimensions (W X L) Min Load Dimensions (W X L)
Machine Structure
Frame Construction Painted Metal
Film Delivery System
Operator Interface
Wrapping Menus 16
Utility Requirements
Safety Features
CE Safety-Cat 3 YES
UL 508A Compliant YES



Features

16 Standard Wrapping Programs
16 standard wrapping menus allow you to easily select the best wrapping pattern for your loads and consistently repeat in less time.
Allen Bradley Panel View Plus 600
Automatic Film Cut
Cube® "SMART Stretch Wrapping" Technology
Innovative technology that combines multi-level variable pre-stretch, multi-level variable containment force, pro-active corner compensation, and strategic film placement to successfully wrap loads & ensure that they reach your customer in as-made condition by maintaining proper wrapping standards.
Multi-Level Variable Containment Force
Delivers optimal containment force at each level. Containment force is adjustable up to 9 times on each load.
Multi-Level Variable Pre- Stretch
Ensures the best film economy for every load. Adjust the pre-stretch up to 9 times on each load. Multi-Level Variable Pre-Stretch Technology delivers 30% to 55% film savings over currently available competitive stretch wrapping systems.
R-Connect® Ready
Able to install R-Connect® remote monitoring software immediately.
Split Wrapping Cycles for Stacked Pallets
AVAILABLE OPTIONS
30" Film Carriage
Air Conditioning
Automatic Corner Board Placement
Automatic Film Roll Changer
Pallet Lifting Device

Advantages

Reduced Film Consumption
Better Load Containment
Low Total Cost of Ownership
